low cost steel structure
096
1
Guangdong
Place of Origin: Guangdong, China
Brand name: HY
Model: 096
Type: low cost steel structure
Application: Steel Structure House
Tolerance: ±1%
Processing services: bending, welding, uncoiling, cutting, punching
Delivery time: 30 days after all details are confirmed
Product name: low cost steel structure
Keywords: low cost steel structure
Material: Q235/Q355 steel
Purlins: C/Z Galvanized Steel (Q235)
Window: plastic steel window
Door: Sandwich panel door
Roof/Wall: Sandwich panel or steel plate
Certificate: CE&ISO9001
Lifespan: Up to 50 years
Brand name: HY
Model: 096
Type: low cost steel structure
Application: Steel Structure House
Tolerance: ±1%
Processing services: bending, welding, uncoiling, cutting, punching
Delivery time: 30 days after all details are confirmed
Product name: low cost steel structure
Keywords: low cost steel structure
Material: Q235/Q355 steel
Purlins: C/Z Galvanized Steel (Q235)
Window: plastic steel window
Door: Sandwich panel door
Roof/Wall: Sandwich panel or steel plate
Certificate: CE&ISO9001
Lifespan: Up to 50 years
Quantity
- Place of Origin: Guangdong, China
- Brand name: HY
- Model: 096
- Type: low cost steel structure
- Application: Steel Structure House
- Tolerance: ±1%
- Processing services: bending, welding, uncoiling, cutting, punching
- Delivery time: 30 days after all details are confirmed
- Product name: low cost steel structure
- Keywords: low cost steel structure
- Material: Q235/Q355 steel
- Purlins: C/Z Galvanized Steel (Q235)
- Window: plastic steel window
- Door: Sandwich panel door
- Roof/Wall: Sandwich panel or steel plate
- Certificate: CE&ISO9001
- Lifespan: Up to 50 years
Prefabricated steel structure building introduction
Steel structure building warehouse, workshop, parking lot and factory building
Specifications:
1) Main steel: Q355, Q235, Q355B, Q235B, etc.
2) Column beam: welded or hot rolled H-beam
3) Steel structure connection Way: welded connection or bolted connection
4) Wall and roof: EPS, rock wool, PU interlayer, corrugated steel plate
5) Door: Rolling shutter door or sliding door
6) Window: plastic steel or aluminum alloy window
7) Surface: hot-dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT, etc.

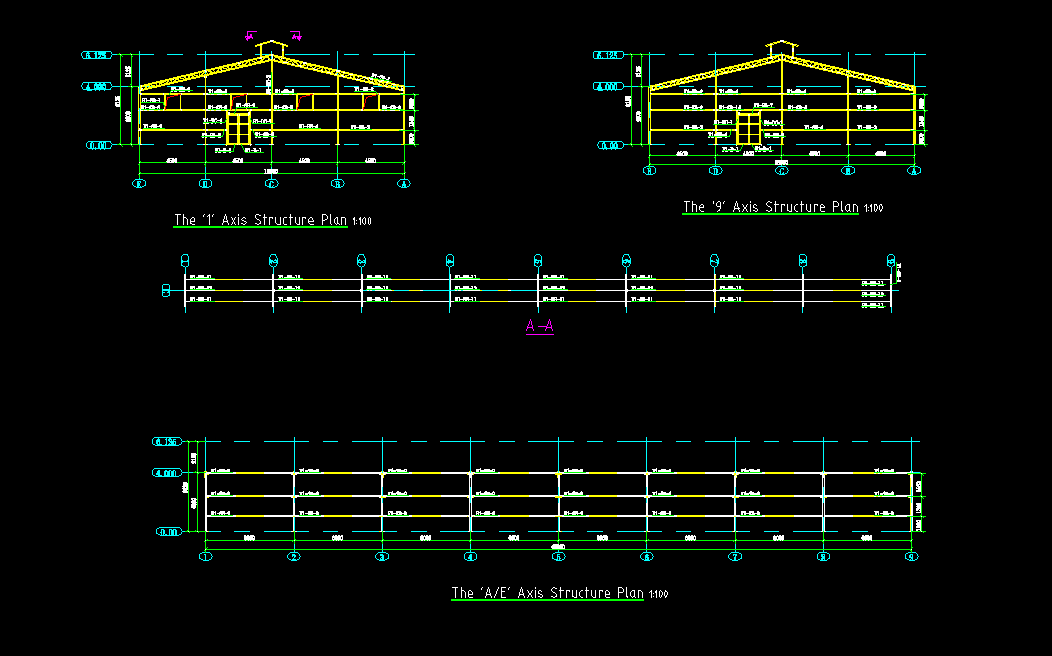

Drawings and Quotes:
1) Customized designs are welcome.
2) In order to give you an accurate quotation and drawing, please tell us the length, width, eaves height and local weather.We
will quote you in time.
Brief Introduction

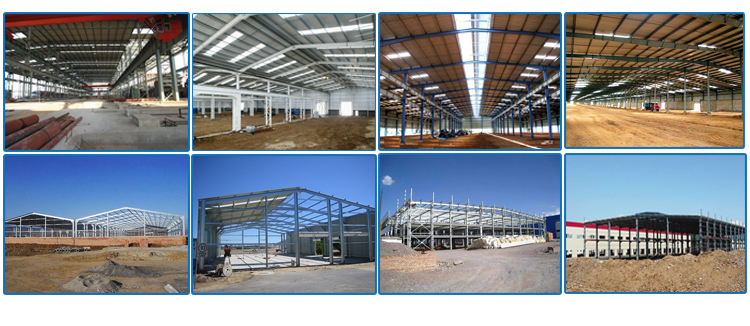

Prefabricated steel structure buildings are widely used in warehouses, factories, hangars, sheds, basketball courts, gas stations
, chicken coops, etc.

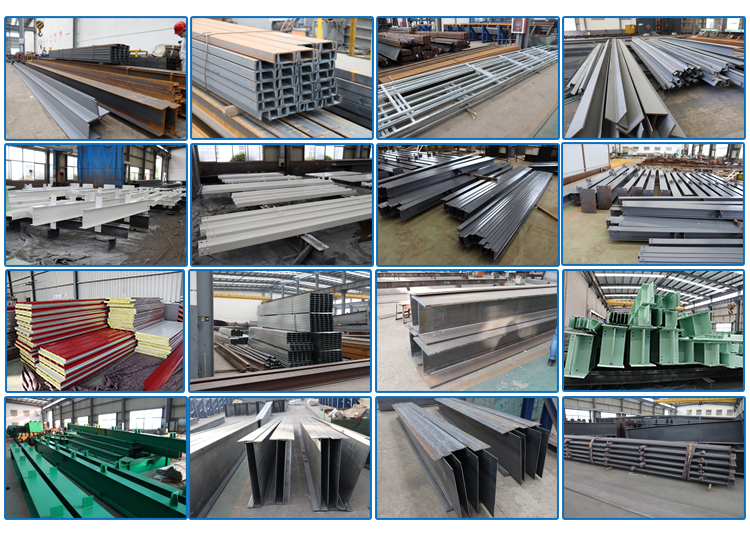

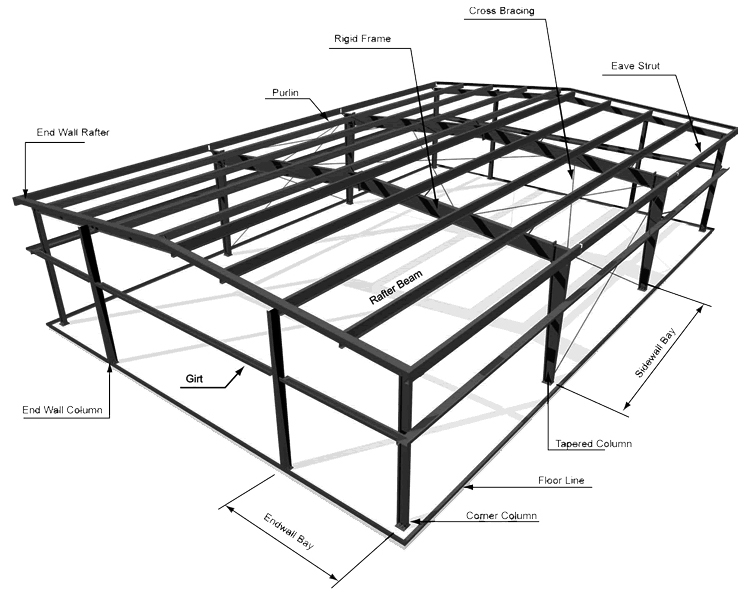

The prefabricated steel structure building is a green and economical building system, which consists of the main
structure (H-shaped steel for beams/columns, C-channel steel or Z-channel steel for purlins), substructure (round steel or angle steel for support
, and round steel pipe for tie rods, angle steel for gussets), roof and wall systems (using sandwich panels or
single steel plates), door and window systems.
Product parameters
project | Specification | |
main steel frame | steel column | Q235, Q355 welded H-beam |
steel beam | Q235, Q355 welded H-beam | |
secondary frame | Purlin | Q235 C and Z purlins |
corner support | Q235 angle steel | |
tie rod | Q235 round steel pipe | |
support | Q235 round bar | |
vertical and horizontal support | Q235 angle steel, round bar or steel pipe | |
Maintenance system | roof slab | EPS sandwich panel/glass fiber sandwich panel/ |
Rock wool sandwich panel/PU sandwich panel/steel plate | ||
wall panel | Sandwich panel/corrugated steel plate | |
Accessories | window | Aluminum alloy window/PVC window/sandwich panel window |
pass | Sliding Sandwich Panel Doors/Rolling Metal Doors/Personal Doors | |
gully | PVC | |
roof live load | In 120kg/Sqm (surrounded by color steel plate) | |
Wind resistance rating | Grade 12 | |
shock resistance | 8 levels | |
Structural use | up to 50 years | |
Organize options | Plenty of colors and textures available | |
paint options | Alkyd paint, secondary paint, secondary paint | |
(gray paint, red paint, white paint, epoxy zinc, etc.) or galvanized. | ||

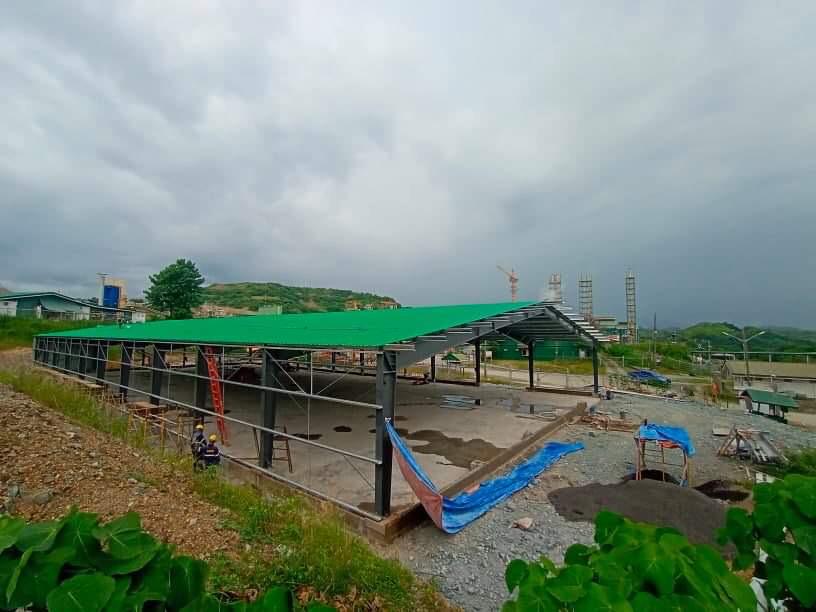

Overseas case

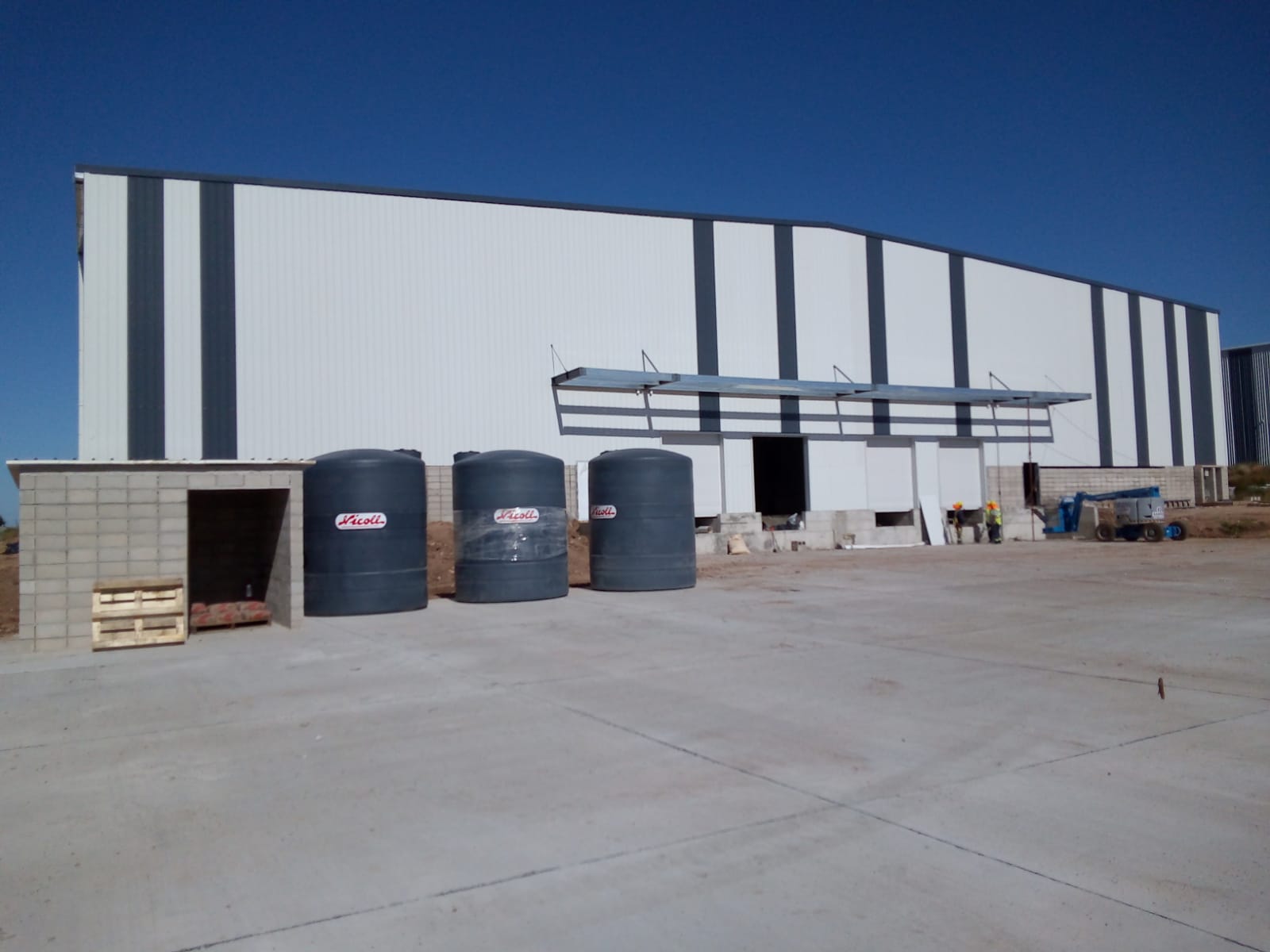

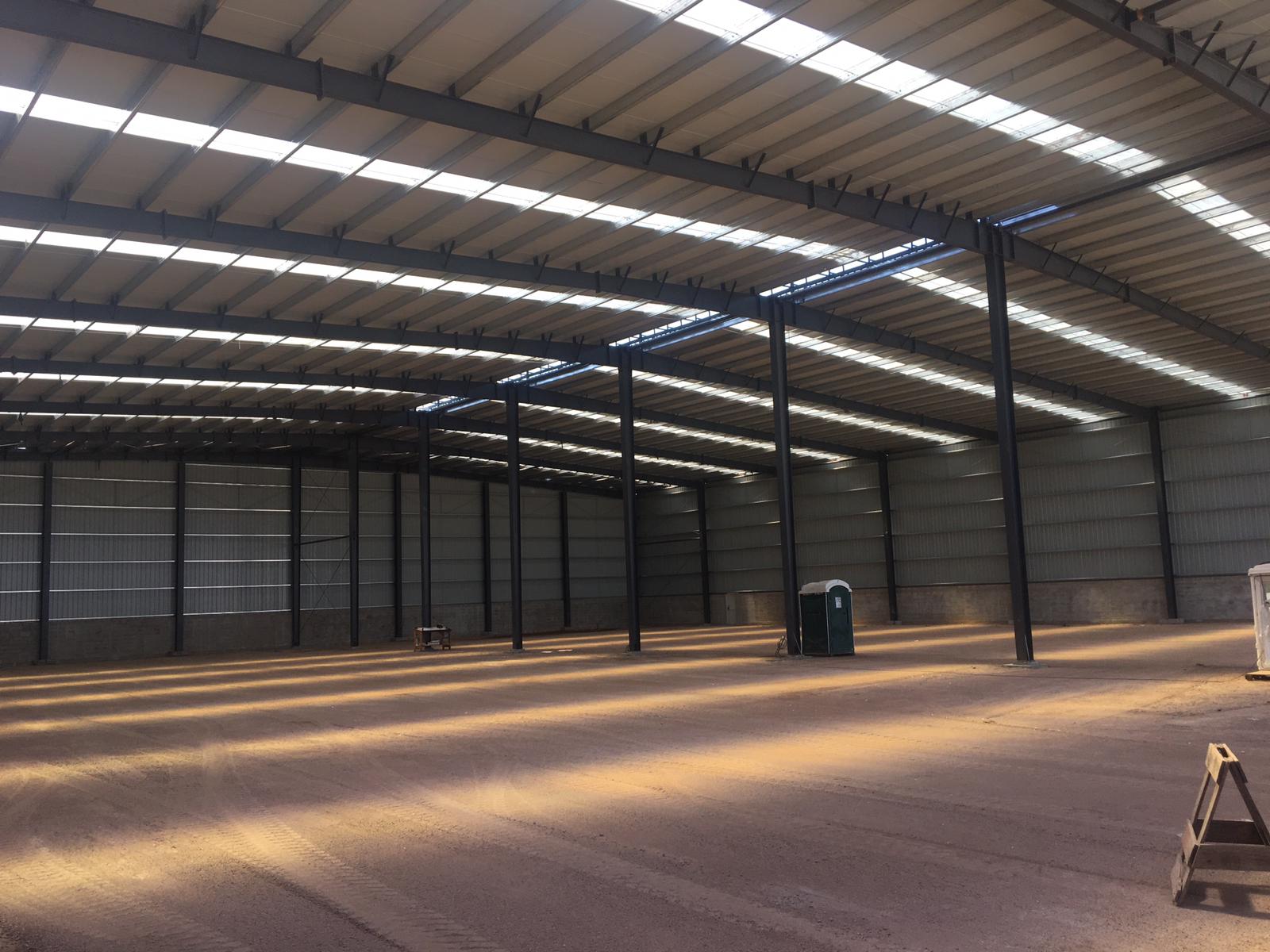

Kenya workshop:Dimensions: 60mx50mx9.5m, with a central roll column, roof ventilation monitor, skylight panels, gutters; Roof and walls: The roof is EPS sandwich panel, and the wall is PPGI veneer; Door: Rolling shutter door; Brick Wall Height: 2m; Wind Speed: 158km/h

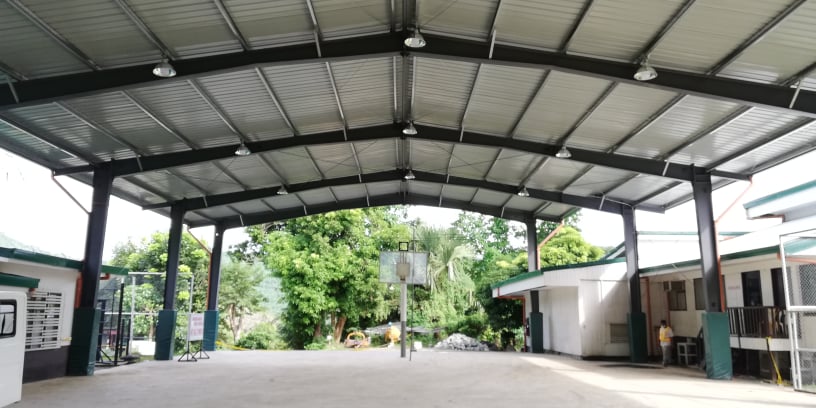

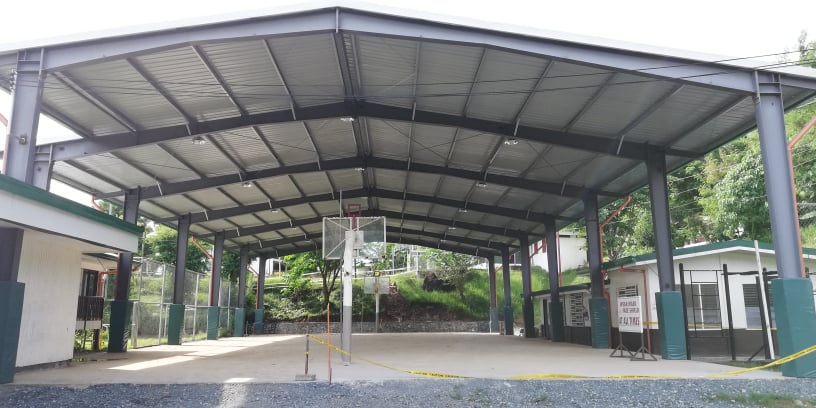

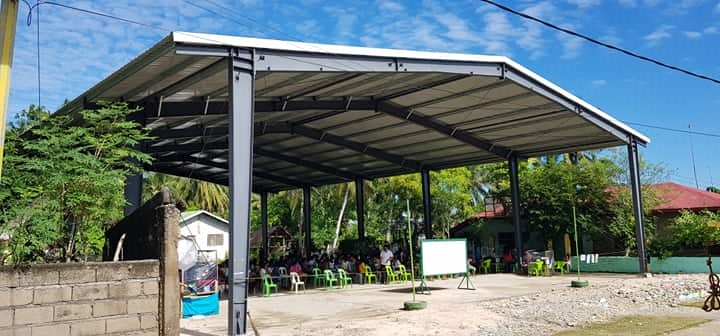

Philippine Covered Stadium: Size: 30mx20mx6m

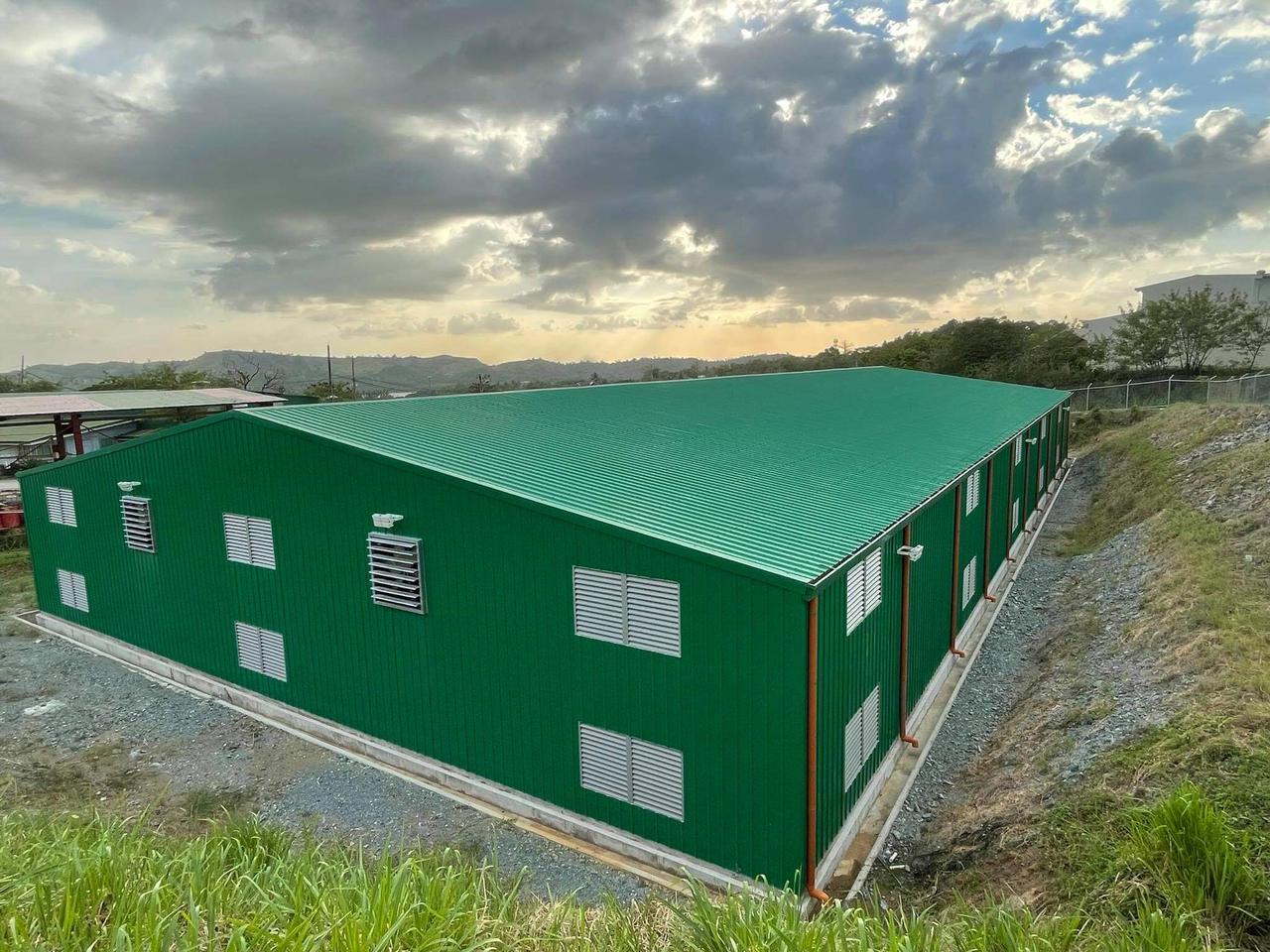

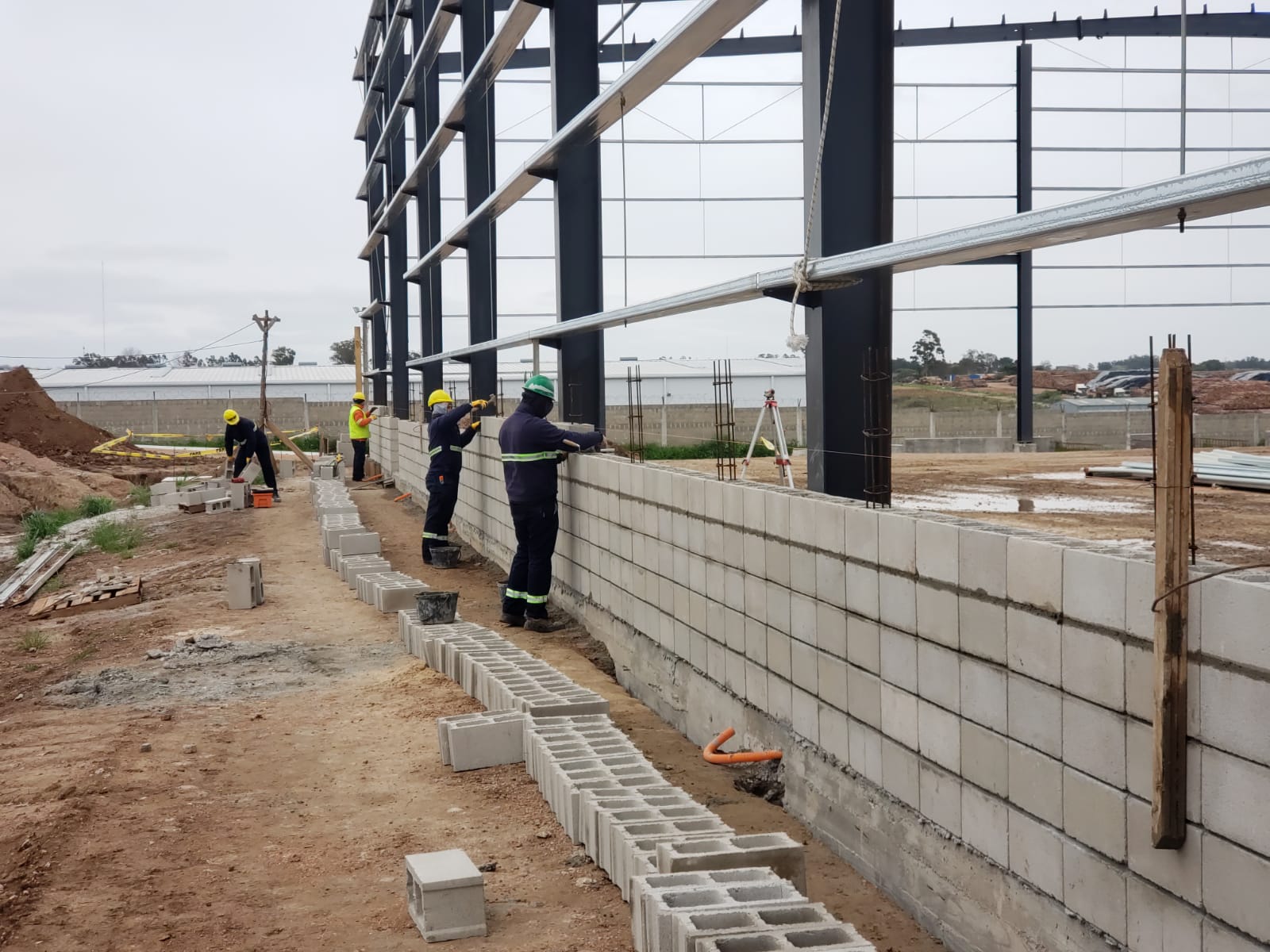

Uruguay Warehouse : Size: 50mx25mx4m

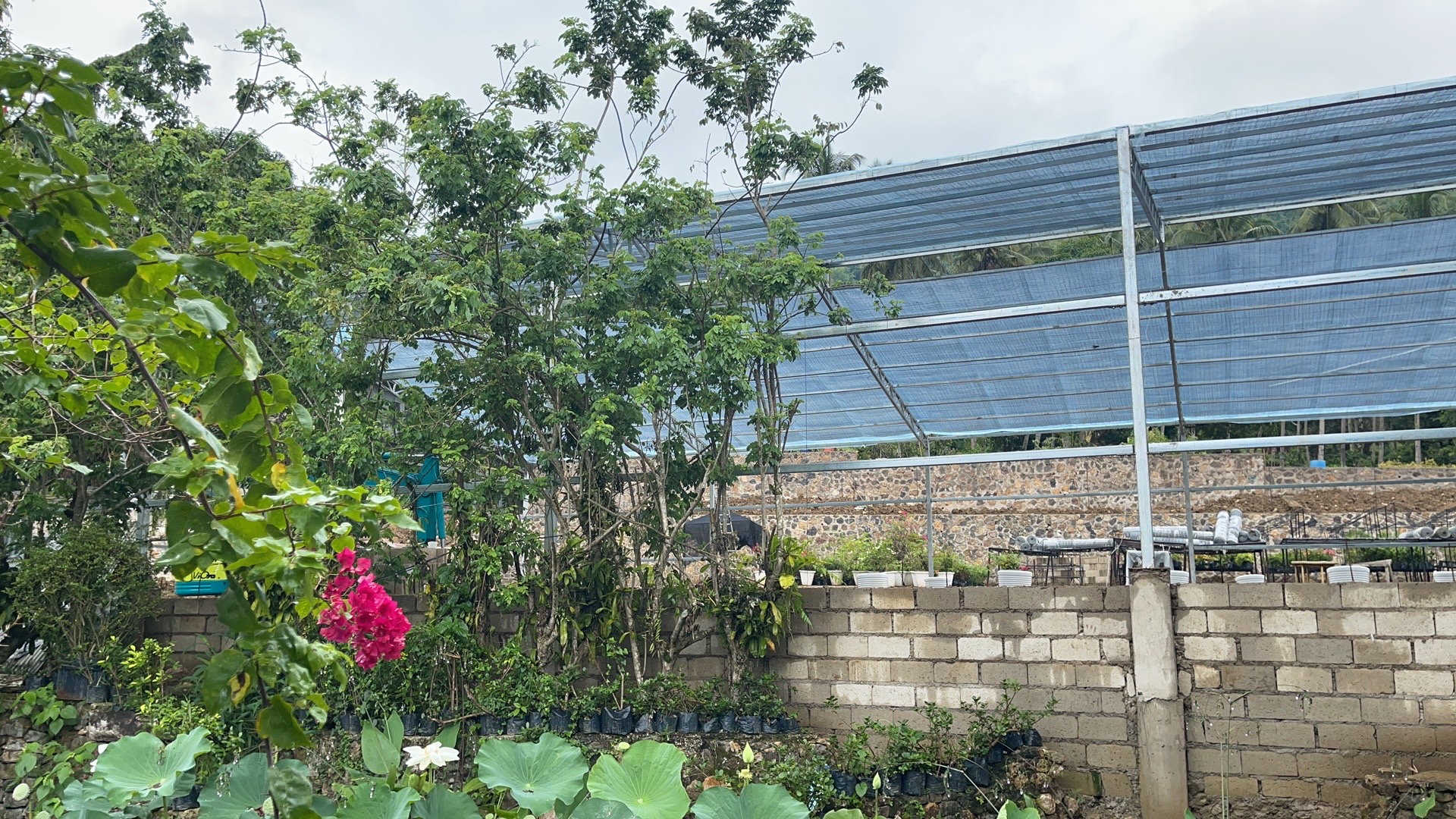

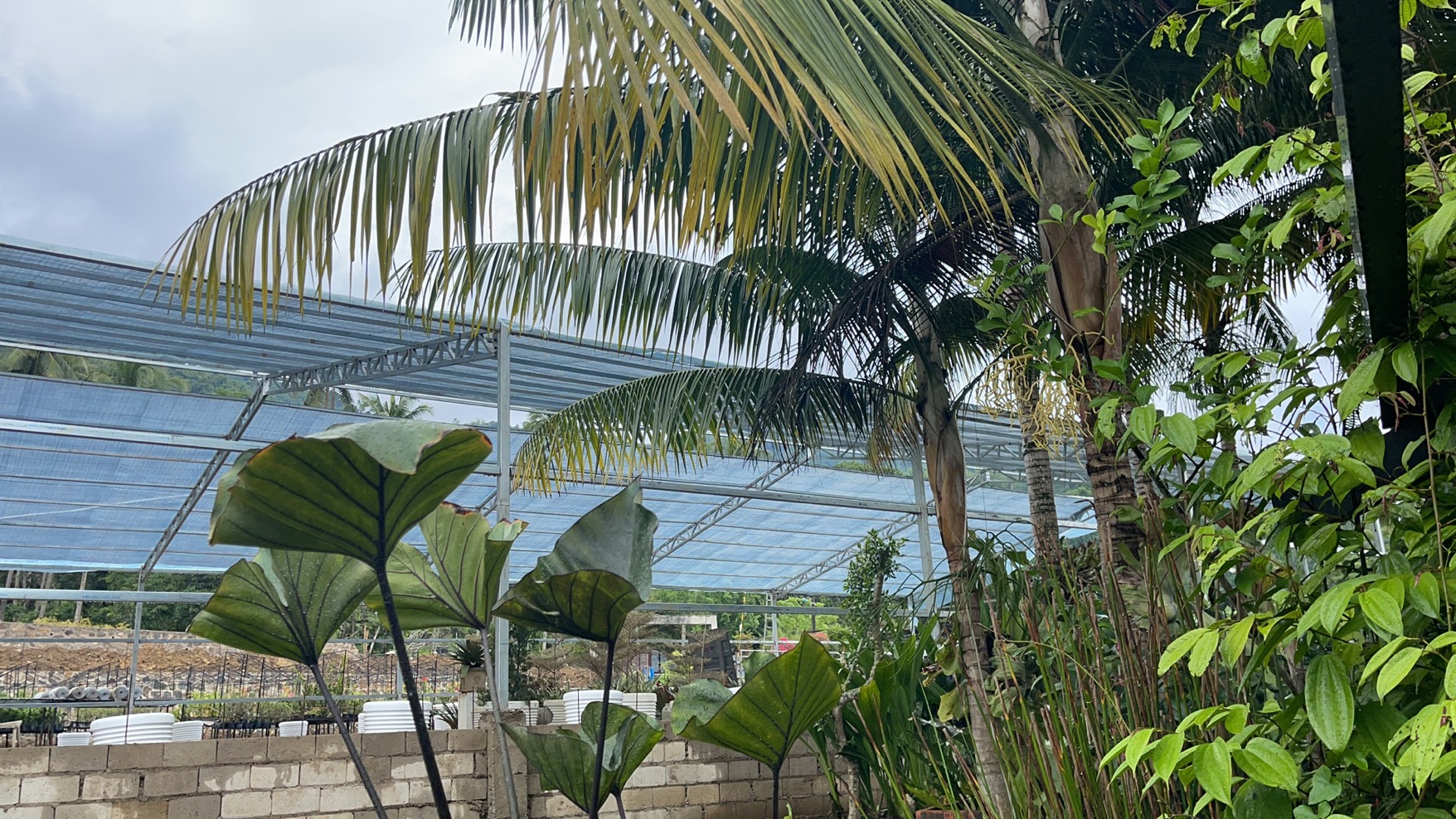

Cyprus Steel Shed:
Size: 40mx18mx4m + skylight; with plastic film, open wall mesh

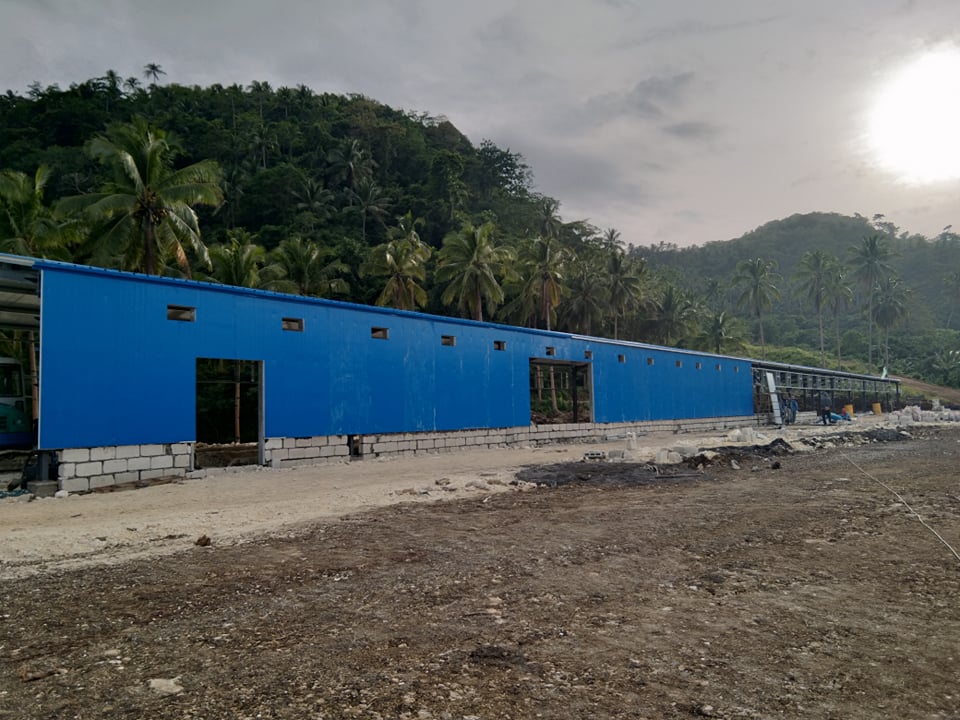

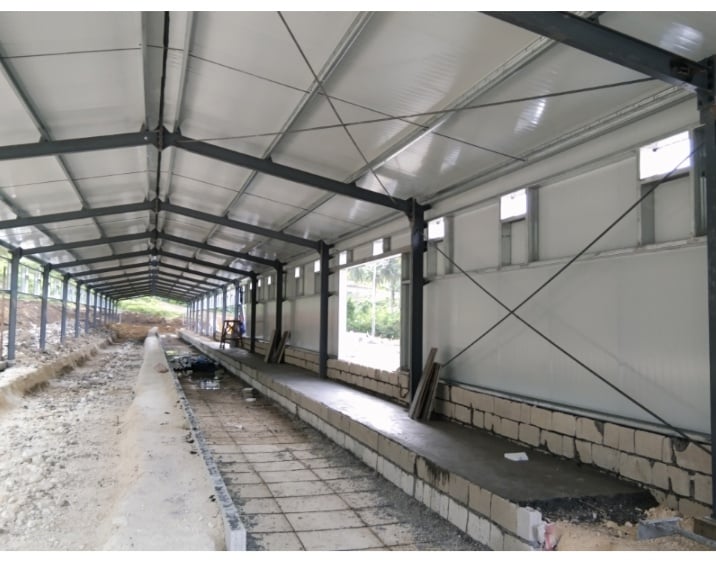

Moroccan Tiered Chicken Coop:Dimensions: 85mx7.5mx3.2m

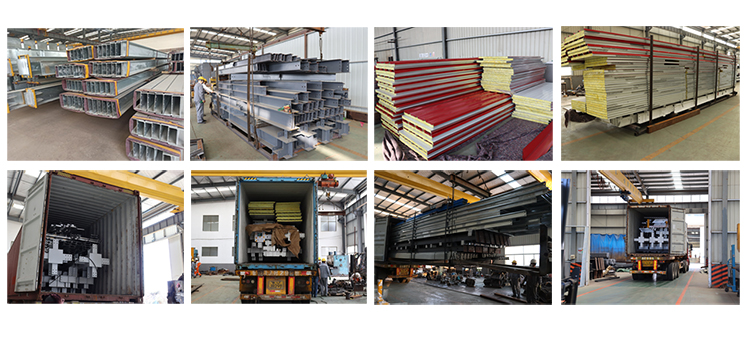

Packaging and Shipping
FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory and a trading company.
2. Q: What is your supply capacity?
A: The annual output is 564,000 square meters of prefabricated houses; 24,000 sets of mobile toilets; 360,000 square meters of steel structures.
3. Q: How to install?
A: We will provide you with installation instructions and videos, and send technicians to help you when necessary. However, visa fees, air tickets, accommodation, wages will be provided by the buyer.
4. Q: How long is your delivery time?
A: 30 days after confirming all details.
5. Q: How do you guarantee the quality of the products?
A: Strict product quality control, quality makes the future. This is the purpose of our factory. Every product in our factory has strict testing procedures and must be 100% quality before leaving the factory.
6. Q: How to get project quotation?
A: If you have drawings, we can offer you a quotation according to your drawings.
If you don't have a design, our engineers will design some drawings for you to confirm. Then give you a quote.
