folding container house
058
1
Guangdong
Warranty period: 3 years
After-sales service: online technical support, on-site installation, on-site training, none, online technical support, online installation
Project resolution capability: graphic design, 3D model design, overall project solution
Application: Apartment, Living
Place of Origin: Guangdong, China
Brand Name: HY
Use: Residential, Shop, Villa
Product type: collapsible container house, prefab container
Decorative style: modern
Product name: collapsible container
Lifespan: 25 years
Features: waterproof
Certificate: ISO9001
After-sales service: online technical support, on-site installation, on-site training, none, online technical support, online installation
Project resolution capability: graphic design, 3D model design, overall project solution
Application: Apartment, Living
Place of Origin: Guangdong, China
Brand Name: HY
Use: Residential, Shop, Villa
Product type: collapsible container house, prefab container
Decorative style: modern
Product name: collapsible container
Lifespan: 25 years
Features: waterproof
Certificate: ISO9001
Quantity
- Warranty period: 3 years
- After-sales service: online technical support, on-site installation, on-site training, none, online technical support, online installation
- Project resolution capability: graphic design, 3D model design, overall project solution
- Application: Apartment, Living
- Place of Origin: Guangdong, China
- Brand Name: HY
- Use: Residential, Shop, Villa
- Product type: collapsible container house, prefab container
- Decorative style: modern
- Product name: collapsible container
- Lifespan: 25 years
- Features: waterproof
- Certificate: ISO9001

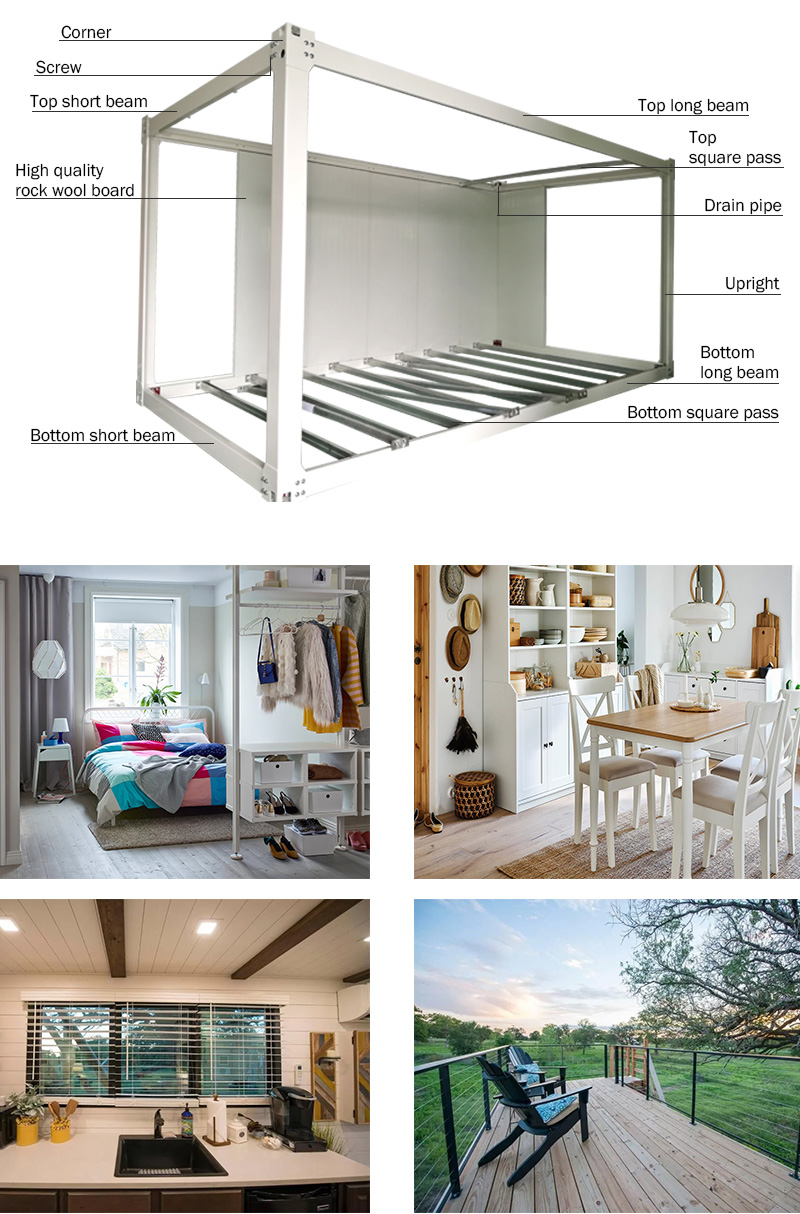

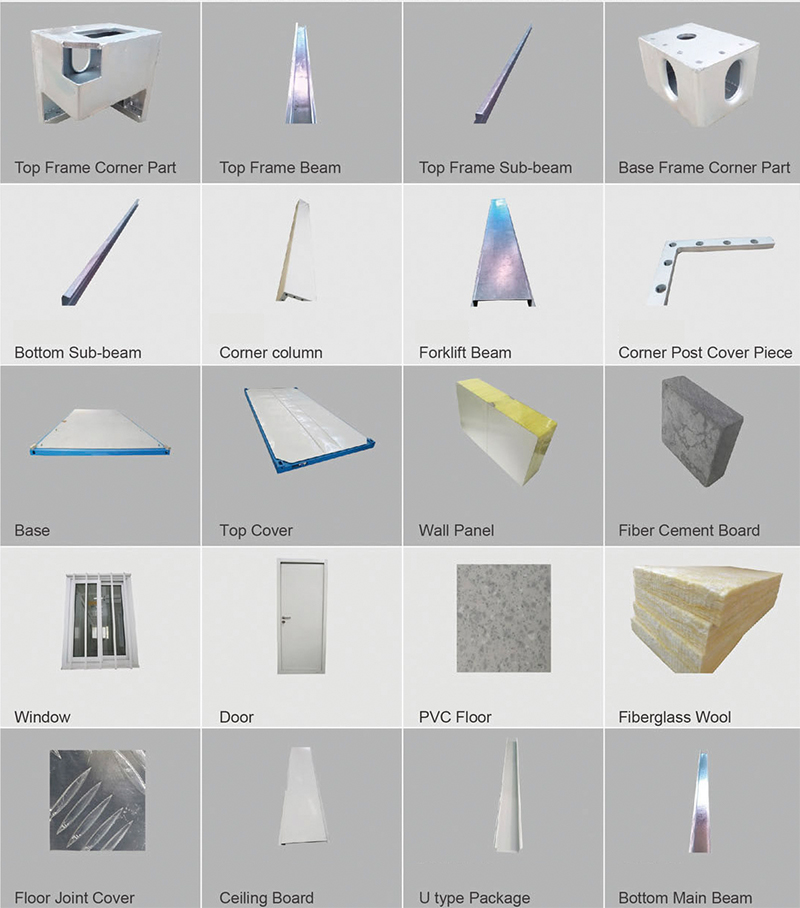

part | Name of the scene | standard material | Elective |
Upper basket system | top corner | 3.5mm top corner piece, galvanized weight 80g/㎡ 210*150*210mm | Do not |
Main roof beam (long) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 5633mm | 2.0mm-3.0mm | |
Main roof beam (short) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 2688mm | 2.0mm-3.0mm | |
roof | 75mm glass wool + tin foil, 14kg/m³ | 0.4mm-0.6mm | |
Roof insulation | C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing quantity 80g/㎡ | 100mm | |
secondary roof beam | 0.4mm, 831 color steel integrated ceiling panel, mezzanine | Negotiable | |
ceiling | Electrostatic spray (white) | 0.4mm-0.6mm | |
surface finishing | 3.5mm top corner piece, galvanized weight 80g/㎡ 210*150*160mm | color can be customized | |
low frame system | lower corner | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 5633mm | Do not |
Ground main tea (long) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 2688mm | 2.0mm-3.0mm | |
Ground main beam (short) | 1.6 mm sun leather | 2.0mm-3.0mm | |
Sun | 1.0mm waterproof membrane | Floor leather 1.0mm, plastic floor 1.6, plastic floor 2.0, wooden floor | |
Waterproof membrane | 18mm cement modified board | Do not | |
sun | 75mm glass wool + tin foil, 14kg/m³ | 15mm cement modified board, 18mm fiber cement board, 15mm multilayer board | |
floor insulation | 75mm glass wool + tin foil, 14kg/m³ | 100mm | |
secondary roof beam | 3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm | Negotiable | |
Back cover color steel plate | Ø50mm, PVC blanc | 0.4mm-0.6mm | |
surface finishing | 75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³ | color can be customized | |
wall system | Prism | 3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm | 2.0mm-3.0mm |
drain pipe | Ø50mm, PVC blanc | Do not | |
wall panel | 75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³ | 50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³ | |
High-end anti-theft door | 840mm*2035mm, steel | 970mm*1970mm, equipped with anti-theft door | |
Top with anti-theft window | 1130mm*1130mm, double double glass push | 925mm*1130mm, glass single pressure plastic steel window |
FAQ1. How to heat the container?
The top and all sides of the container are made of heat-insulating color tiles, which have good heat insulation effect.
2. Will water penetrate the product outside?
The top of the container house has a water guide design, and there is hardly any water accumulation on the top. The contact between the sidewall tiles and the steel frame should be waterproofed with glass glue
3. How long can the product be used and what is the service life?
The service life of container products is generally about 15-20 years The local climate and environment are different, which will affect the service life
4. What is the impact resistance of the product?
The seismic capacity of container products is generally 7 to 8 seismic
.5. Do container houses require the installation of a crane?
It is not necessary to use a crane for installation. It depends on the type. Cranes are generally used to unfold or fold containers. Others can be solved by lifting
.6. What are the main points of the rainproof position?
Generally, it is necessary to pay attention to the seam where the color tile panel and the steel structure contact, and the appearance is rainproof and waterproof.Special attention should be paid to the position of the folding hinge and the position of the unfolding angle
7. What is the wind resistance of the product?
Wind resistance of container products: wind speed ≤ 120 km/h
8. What is the general construction period of container products?
The general production cycle of containerized products is 15-20 days
9. Will anti-theft nets be installed in the window of containerized products?
Conventional products are not equipped with window anti-theft net, but can be equipped with anti-theft net accessories

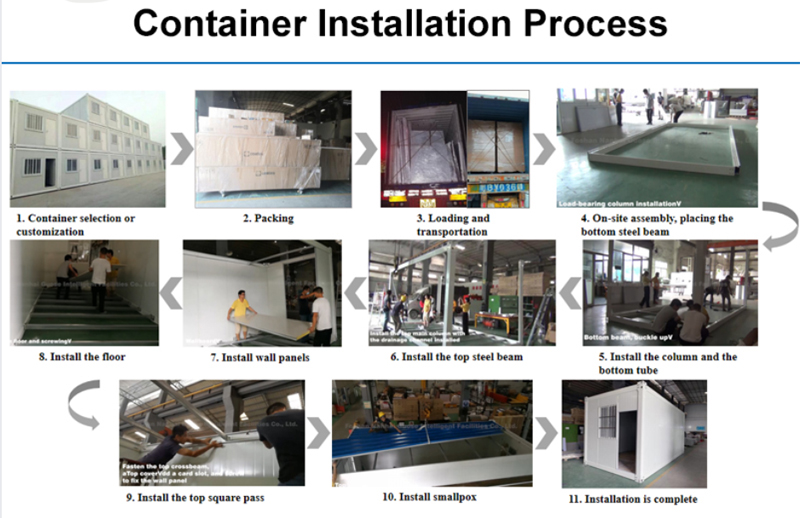

10. Is there an installation manual for this product?
There are installation instructions, we will also provide a short installation video for customers to understand the installation
