钢结构粮仓
077
1
广东
质保：5年以上
售后服务：在线技术支持、上门安装、上门培训、上门检查、免费备件、退换货
项目解决能力：平面设计、3D模型设计、项目整体解决方案、跨品类整合
应用：钢结构农舍、钢结构禽舍、钢结构粮仓
产地：中国广东
品牌名称：HY
型号：钢结构
设计风格：钢结构粮仓
标准：国标
等级：Q235 Q355B
尺寸：根据客户要求
类型：钢结构粮仓
尺寸：根据客户要求
主要材料：Q355钢
钢柱：焊接H型钢
檩条：镀锌C/Z型钢
结构类型：轻型门式框架结构
售后服务：在线技术支持、上门安装、上门培训、上门检查、免费备件、退换货
项目解决能力：平面设计、3D模型设计、项目整体解决方案、跨品类整合
应用：钢结构农舍、钢结构禽舍、钢结构粮仓
产地：中国广东
品牌名称：HY
型号：钢结构
设计风格：钢结构粮仓
标准：国标
等级：Q235 Q355B
尺寸：根据客户要求
类型：钢结构粮仓
尺寸：根据客户要求
主要材料：Q355钢
钢柱：焊接H型钢
檩条：镀锌C/Z型钢
结构类型：轻型门式框架结构
数量
- Warranty: more than 5 years
- After-sales service: online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange
- Project solving ability: graphic design, 3D model design, overall project solution, cross-category integration
- Application: steel structurefarmhouse, steel structure poultry house, steel structure granary
- Place of Origin: Guangdong, China
- Brand name: HY
- Model: steel structure
- Design style: steel structure granary
- Standard: GB
- Grade: Q235 Q355B
- Size: according to customer requirements
- Type: steel structure granary
- Size: according to customer requirements
- Main material: Q355 steel
- Steel column: Welded H-beam
- Purlins: Galvanized C/Z steel
- Structure type: light portal frame structure
Hot- selling products Prefabricated steel
structure building Introduction

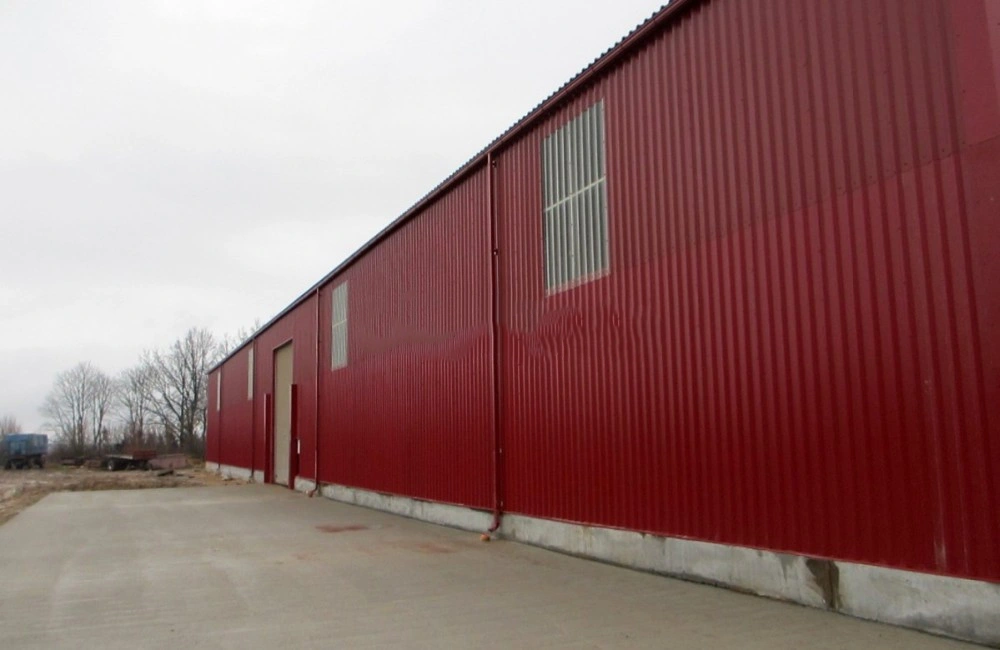

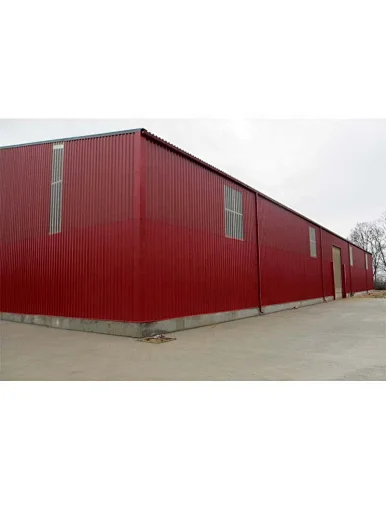

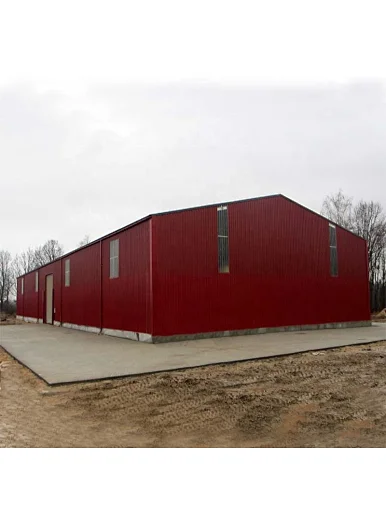

Prefabricated steel structure granary

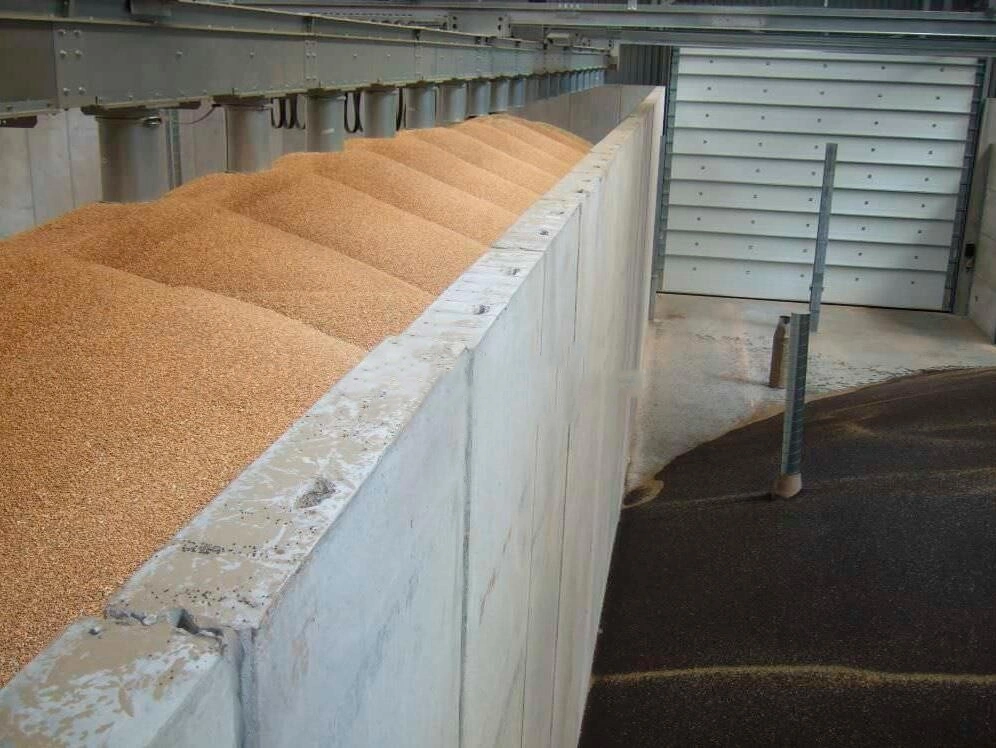

Customized steel structure storage warehouse can be used for the storage of grain, rice and corn. In the beginning, as usual, excavation work was carried out and the base structure was built. Considering the constructive solution and soil conditions of the project, as well as the fact that the steel structure is planned to be supported by the retaining walls of the warehouse, it was decided to use reinforced concrete slabs for the hangar foundation
main steel frame | H-section steel beams and columns, painted or galvanized, galvanized C-section steel or steel, all bolted |
secondary frame | Hot-dip galvanized C-shaped purlins, steel supports, tie rods, knee pads, side covers, etc. |
painting | We can design and quote according to your requirements or your drawings |
Certification | We have all the necessary certificates |
Brief introduction
Prefabricated steel structure buildings are widely used in steel structure warehouses, steel structure workshops, steel structure hangars, steel structure sheds, steel structure basketball courts, steel structure gas stations
, steel structure chicken houses, etc.

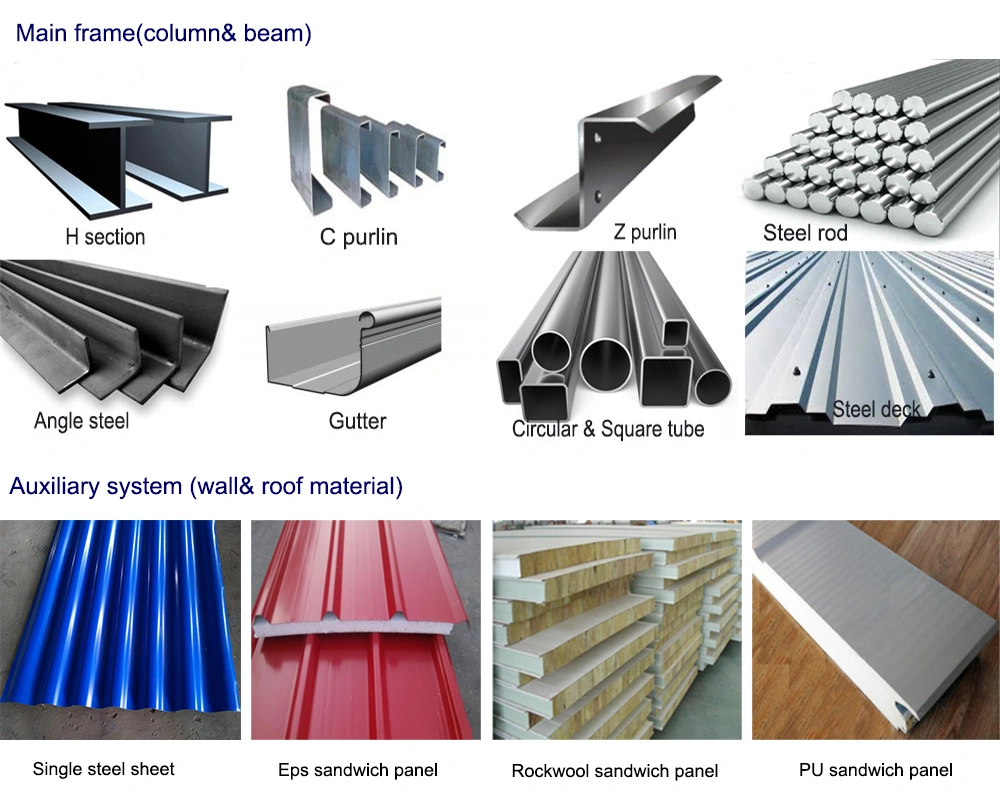

The prefabricated steel structure building is a green and economical building system, which consists of the main
structure (H-shaped steel for beams/columns, C-channel steel or Z-channel steel for purlins), substructure (round steel or angle steel for support
, and round steel pipe for tie rods ) , angle steel for gussets), roof and wall systems (using sandwich panels or
single steel plates), door and window systems.
Detailed image

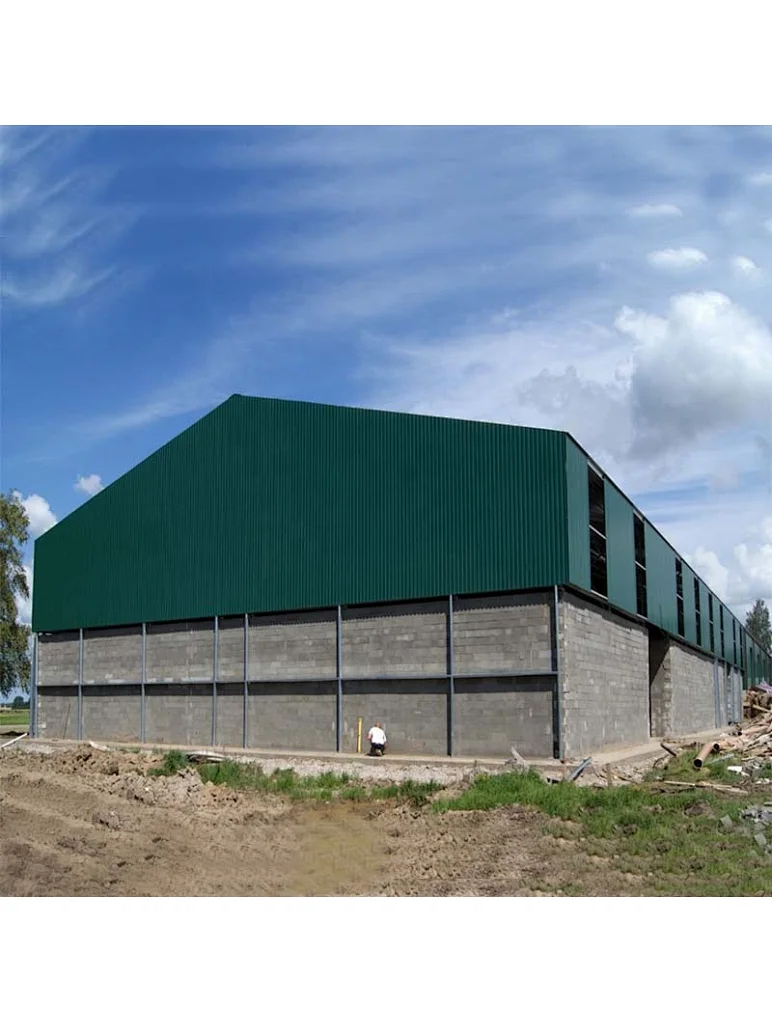

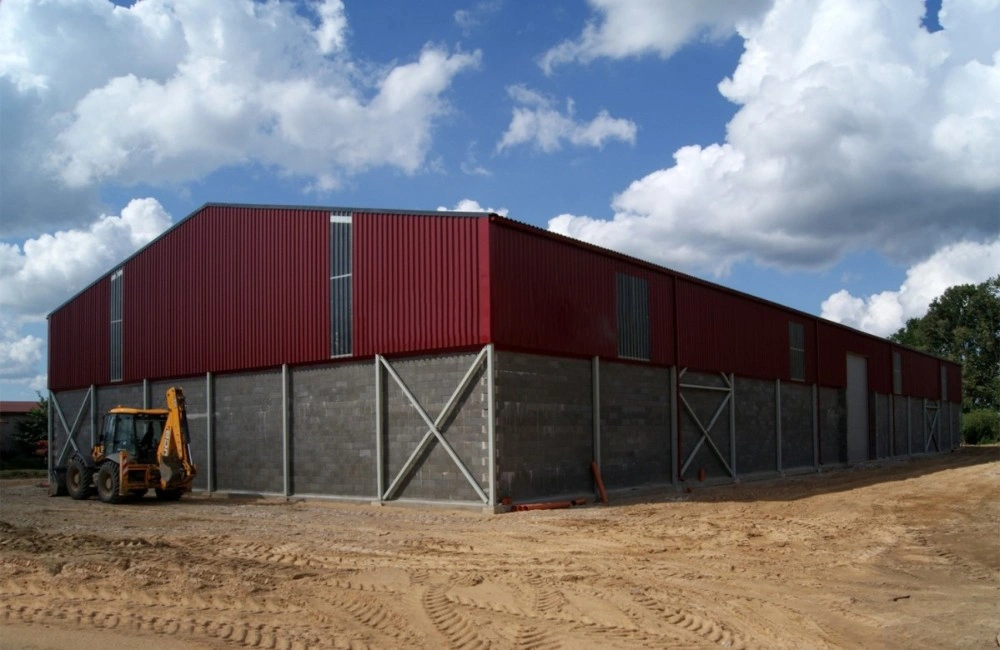

Prefabricated steel structure granaries are becoming more and more popular in the building construction industry. Easy to erect and install. Low cost and long life guaranteed. You can see the picture below is designed with a brick wall. To protect the internal environment from moisture.
A single steel sheet
warehouse generally uses a single steel sheet with a thickness of 0.5mm. It is known for its good quality and low price.
Other options: PU sandwich panel, rock wool sandwich panel, glass fiber wool sandwich panel.

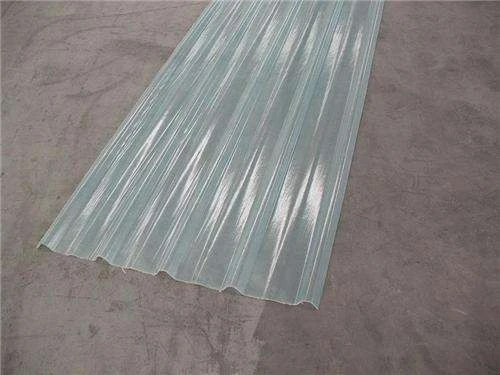

Fiberglass
withCan also be used on the wall instead of windows
Overseas Case
Uruguay Warehouse:Dimensions: 50mx25mx4m
Kenya Workshop: Dimensions: 60mx50mx9.5m with a central roll, roof ventilation monitor, skylight panels, gutters; roof and walls: roof is EPS Sandwich panel, wall is PPGI veneer; door: rolling shutter; brick wall height: 2m; wind speed: 158km/h
Philippines covered stadium:size: 30mx20mx6m
Cyprus steel shed:
size: 40mx18mx4m+ skylight; with plastic film, open wall net
Morocco Layered Chicken Coop: Size: 85mx7.5mx3.2m
Packaging and Shipping
FAQ
1. Q: Are you a factory or a trading company?
A: Our factory is located in Dongguan City, Guangdong Province, China, we are a trading company and also have our own factory
2. Q: What is your supply capacity?
A: Annual output: 980,000 square meters of prefabricated houses, 150 sets per day; 120,000 tons of steel structure.
3. Q: How to install?
A: We will provide you with installation instructions and videos, and send technicians to help you when necessary. However, visa fees, air tickets, accommodation, salary will be provided by the buyer.
4. Q: How long is your delivery time?
A: 30 days after all details are confirmed.
5. Q: How do you guarantee the quality of the products?
A: Strict product quality control, quality makes the future. This is the purpose of our factory. Every product in our factory has strict testing procedures and must be 100% quality before delivery.
6. Q: How to get project quotation?
A: If you have drawings, we can offer you a quotation according to your drawings.
If you don't have a design, our engineers will design some drawings for you to confirm. Then give you a quote.
