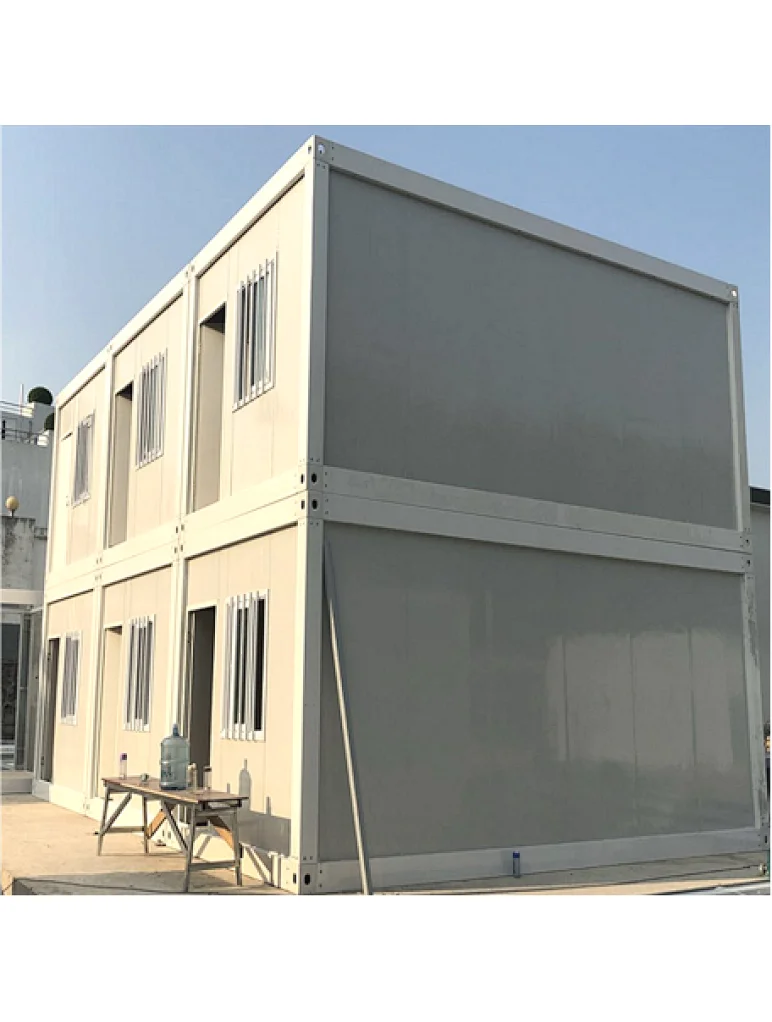

集装箱房宿舍

container house dormitory
集装箱房宿舍
087
1 组
广东
保修期：3 年
售后服务：在线技术支持，上门安装，上门培训
项目解决能力：平面设计、3D模型设计、项目整体解决方案
应用：集装箱宿舍
产地：中国广东
品牌名称：HY
用途：住宅、商店、别墅
产品类型：集装箱宿舍
设计风格：现代
产品名称：集装箱宿舍
寿命：25 年
特点：防水
证书：ISO9001
数量
  • Warranty period: 3 years
  • After-sales service: online technical support, on-site installation, on-site training
  • Project solving ability: graphic design, 3D model design, overall project solution
  • Application: Container Dormitory
  • Place of Origin: Guangdong, China
  • Brand name: HY
  • Use: Residential, Shop, Villa
  • Product Type: Container Dormitory
  • Design style: modern
  • Product name: container dormitory
  • Lifespan: 25 years
  • Features: Waterproof
  • Certificate: ISO9001




product description

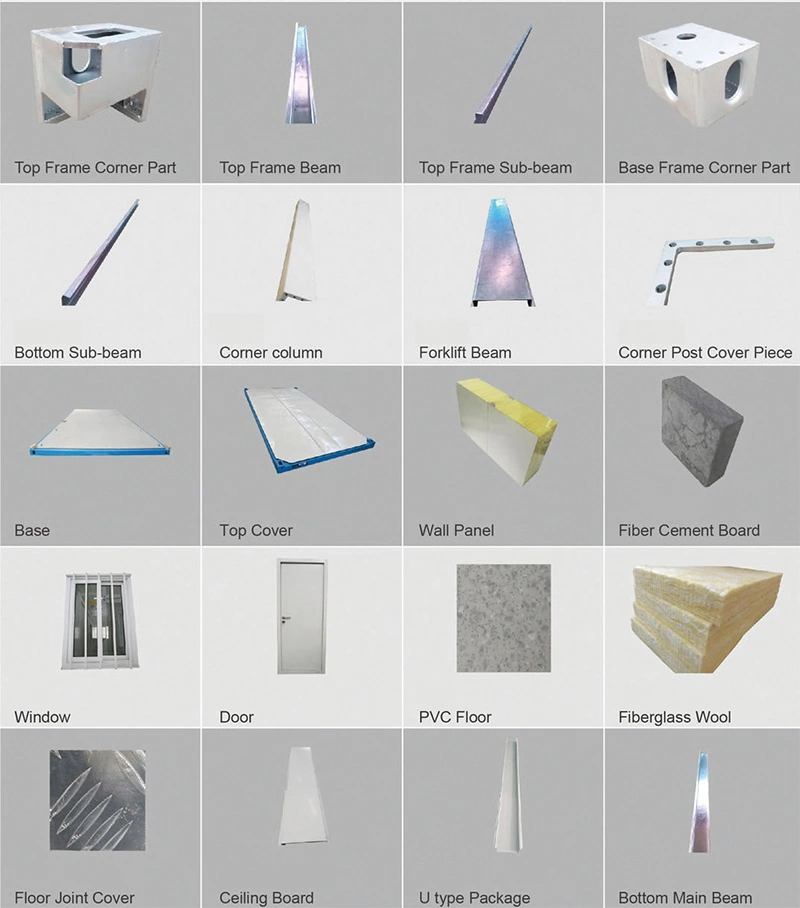

part
Part Name
Standard material
Elective

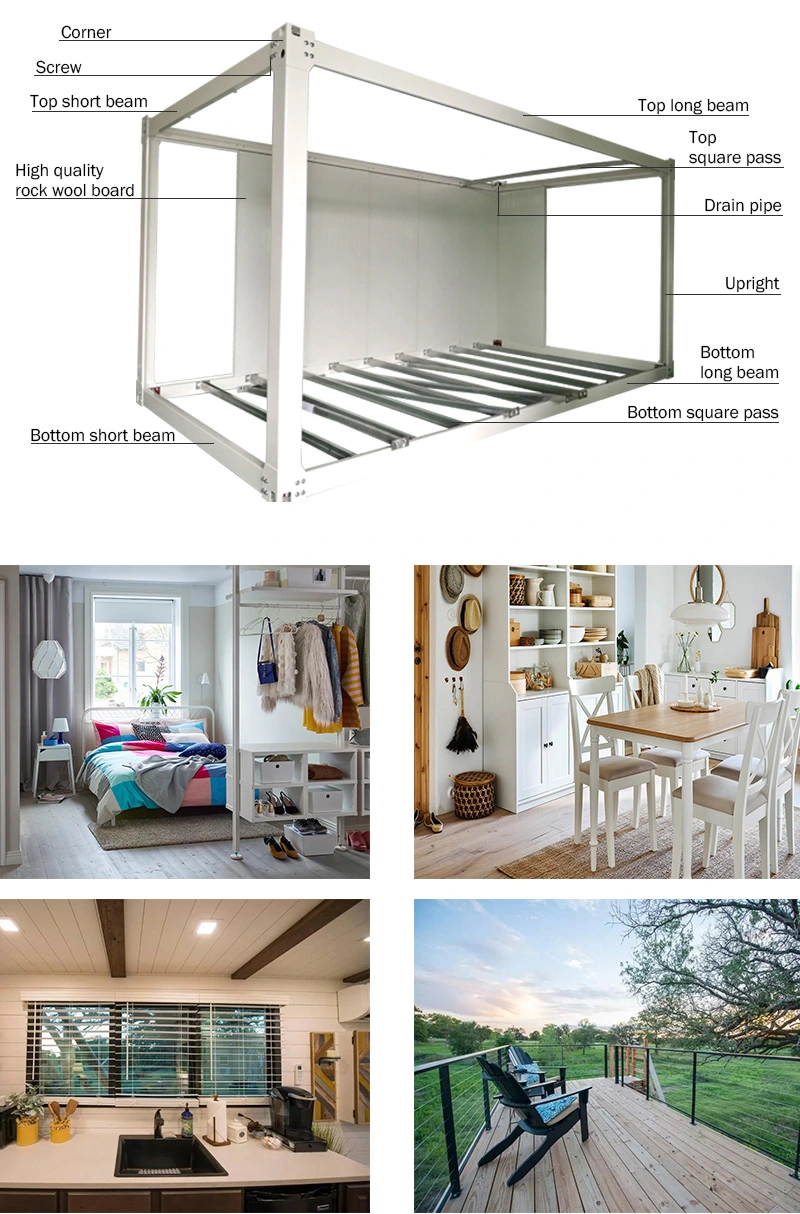

Top rack system
upper corner piece
3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*210mm
Do not
Roof main beam (long)
3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 5633mm
2.0mm-3.0mm
Roof main beam (short)
3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 2688mm
2.0mm-3.0mm
roof
75mm glass wool + tin foil, 14kg/m³
0.4mm-0.6mm
roof insulation
C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing amount 80g/㎡
100mm
roof secondary beam
0.4mm, 831 color steel integrated ceiling panel, mezzanine
Negotiable
ceiling
Electrostatic spraying (white)
0.4mm-0.6mm
surface treatment
3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*160mm
Color can be customized
low frame system
lower corner piece
3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 5633mm
Do not
Ground main beam (long)
3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 2688mm
2.0mm-3.0mm
Ground main beam (short)
1.6mm floor leather
2.0mm-3.0mm
Flooring
1.0mm waterproof membrane
1.0mm floor leather, 1.6 plastic floor, 2.0 plastic floor, wood floor
Waterproof membrane
18mm cement modified board
Do not
ground
75mm glass wool + tin foil, 14kg/m³
15mm cement modified board, 18mm cement fiber board, 15mm multi-layer board
ground insulation
75mm glass wool + tin foil, 14kg/m³
100mm
roof secondary beam
3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm
Negotiable
Back cover color steel plate
Ø50mm, white PVC
0.4mm-0.6mm
surface treatment
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
Color can be customized
wall system
Prism
3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm
2.0mm-3.0mm
drain pipe
Ø50mm, white PVC
Do not
wall panel
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³
High-end anti-theft door
840mm*2035mm, steel
970mm*1970mm, equipped with anti-theft door
High with anti-theft window
1130mm*1130mm, double glass double push
925mm*1130mm, single glass single push plastic steel window

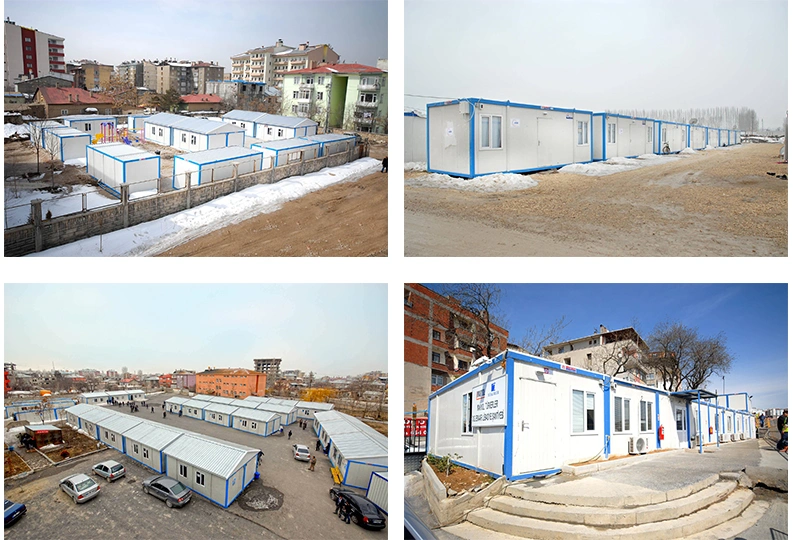

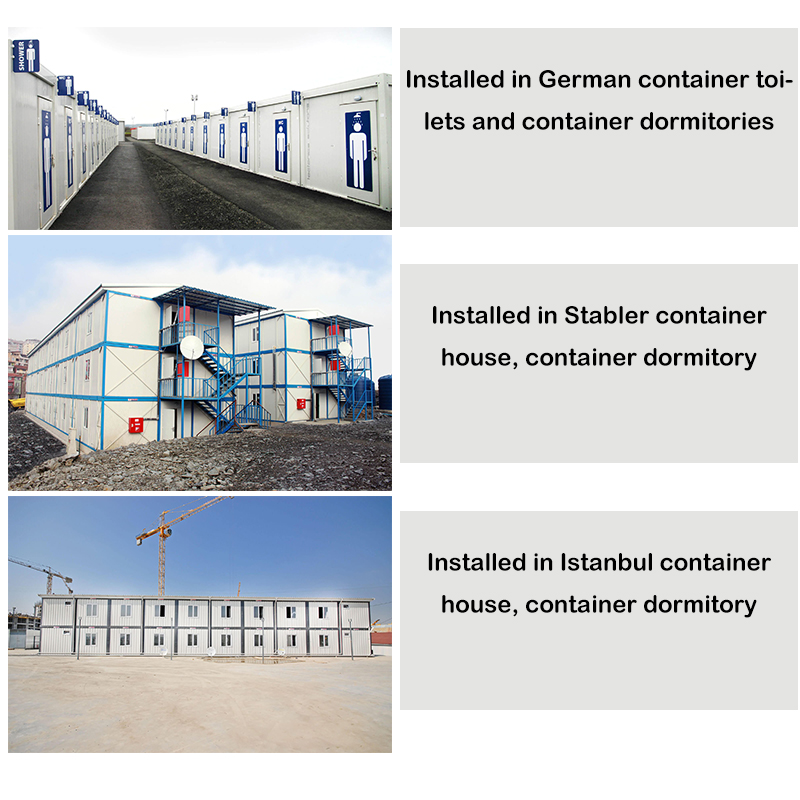

Success StoriesFAQ1











.

How to heat the container?
The top and all sides of the container are made of heat-insulating color tiles, which have a good heat-insulating effect.

2. Will water enter the product outdoors?
The top of the container house has a water guide design, and there is basically no water accumulation on the top. The contact between the side wall tiles and the steel frame needs to be waterproofed with glass glue.

3. How long can the product be used and how long is the service life?
The service life of container products is generally about 15-20 years. The local climate and environment are different, which will affect the service life

. 4. How is the shock resistance of the product?
The seismic capacity of container products is generally 7-8 seismic

5. Do container houses need crane installation?
There is no need to use a crane for installation. It depends on the type. Cranes are generally used for unfolding or folding containers. Others can be solved by hoisting

. 6. What are the main points of the rainproof position?
Generally, it is necessary to pay attention to the seam where the color tile board and the steel structure are in contact, and the appearance is rainproof and waterproof. Attention should be paid to the position of the folding hinge and the position of the unfolding angle.

7. How is the wind resistance of the product?
Wind resistance of container products: wind speed ≤ 120km/h

8. What is the general construction period of container products?
The general production cycle of container products is 15-20 days

. 9. Will anti-theft nets be installed in the window of container products?
Conventional products are not equipped with a window anti-theft net, but can be equipped with anti-theft net accessories

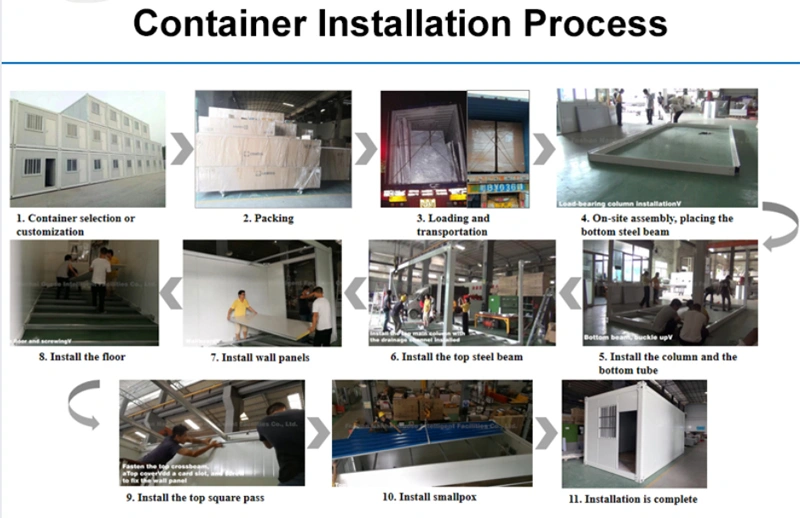

10. Is there an installation manual for this product?
There are installation instructions, we will also provide a short installation video for customers to understand the installation
