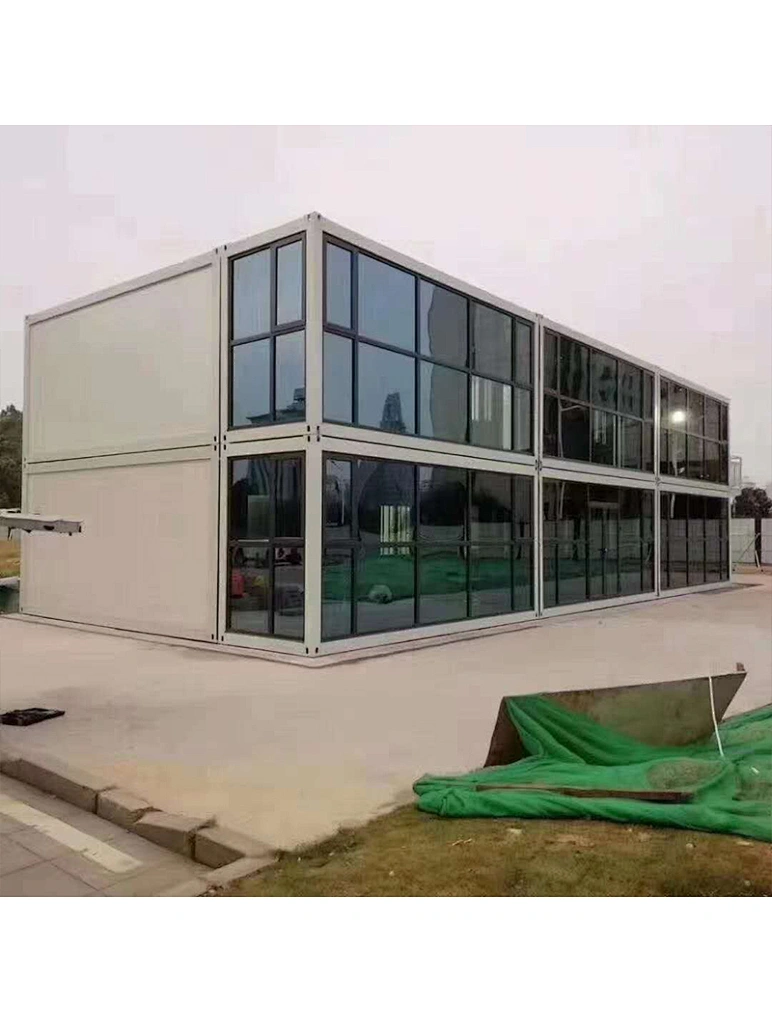

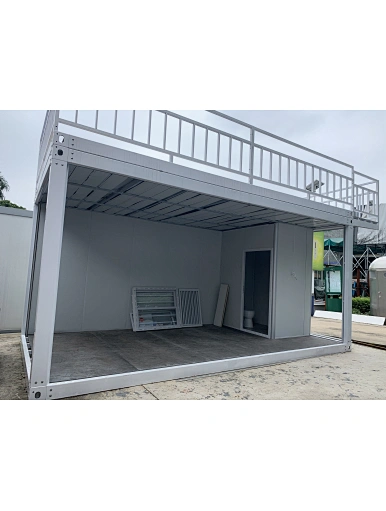

Two-story office building

Two-story office building

Model NO. 086

minimum order 1 set

Country of Origin Guangdong

Warranty: 1 year
After-sales service: online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange, no
Project solving ability: graphic design, 3D model design, overall project solution, cross-category integration, NONE, others
Application: Two-story office building
Place of Origin: Guangdong, China
Brand name: HY
Model: 086
Uses: carport, hotel, house, kiosk, booth, office, guard box, guard house, shop, toilet, villa, warehouse, workshop, factory
Product Type: Two-story office building
Design style: modern
Name: Two-story office building
style: customized
Walls: sandwich panels or trim
Main structure: steel frame structure + drainage system
Certification: ISO9001
Application: family; villa; office; convenience store;Two-story office building
Window material: aluminum window
Ceiling: PVC ceiling
Dimensions: 10ft; 20ft; 40ft
Floor: cement fiberboard

Quantity

Contact Now add to cart

• Warranty: 1 year
• After-sales service: online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange, no
• Project solving ability: graphic design, 3D model design, overall project solution, cross-category integration, NONE, others
• Application: Two-story office building
• Place of Origin: Guangdong, China
• Brand name: HY
• Model: 086
• Uses: carport, hotel, house, kiosk, booth, office, guard box, guard house, shop, toilet, villa, warehouse, workshop, factory
• Product Type: Two-story office building
• Design style: modern
• Name: Two-story office building
• style: customized
• Walls: sandwich panels or trim
• Main structure: steel frame structure + drainage system
• Certification: ISO9001
• Application: family; villa; office; convenience store;Two-story office building
• Window material: aluminum window
• Ceiling: PVC ceiling
• Dimensions: 10ft; 20ft; 40ft
• Floor: cement fiberboard
• Virtual Reality







  product description

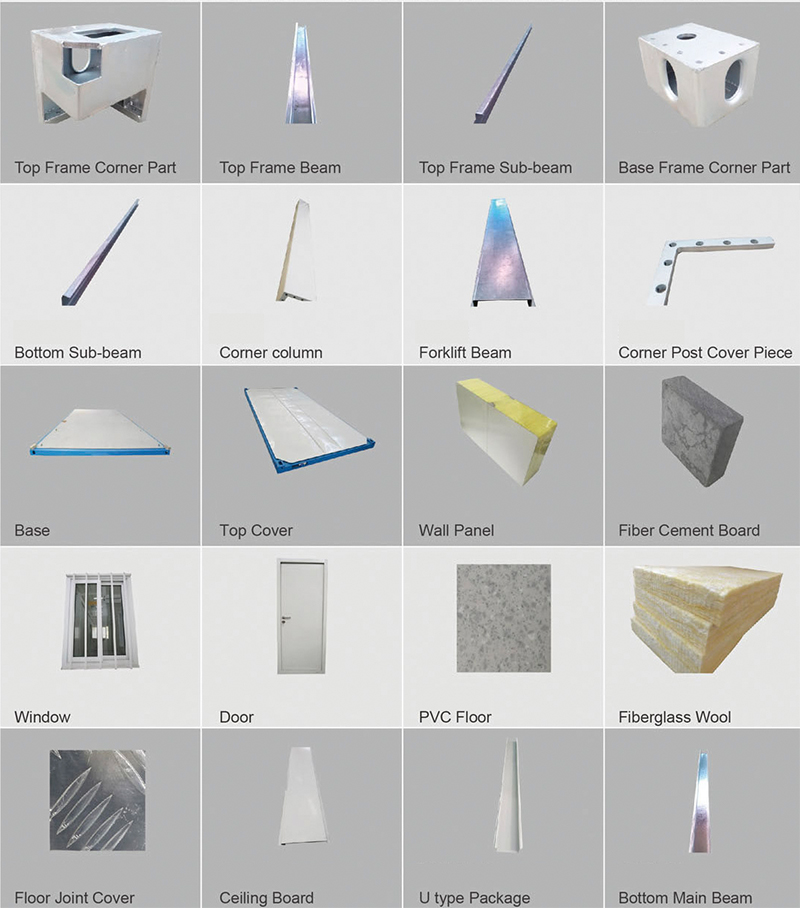

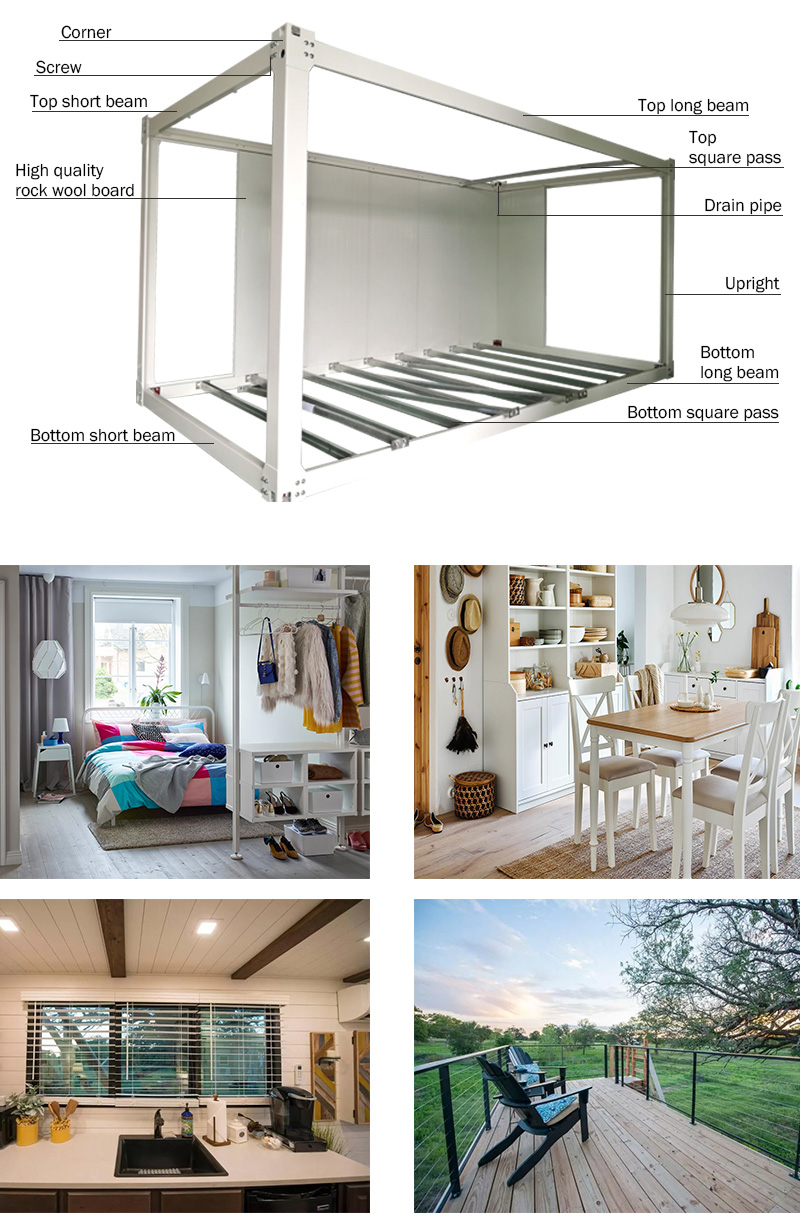

  part	Part Name	Standard material	Elective
  Top rack system	upper corner piece	3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*210mm	Do not
  	Roof main beam (long)	3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 5633mm	2.0mm-3.0mm
  	Roof main beam (short)	3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 2688mm	2.0mm-3.0mm
  	roof	75mm glass wool + tin foil, 14kg/m³	0.4mm-0.6mm
  	roof insulation	C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing amount 80g/㎡	100mm
  	roof secondary beam	0.4mm, 831 color steel integrated ceiling panel, mezzanine	Negotiable
  	ceiling	Electrostatic spraying (white)	0.4mm-0.6mm
  	surface treatment	3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*160mm	Color can be customized
  low frame system	lower corner piece	3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 5633mm	Do not
  	Ground main beam (long)	3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 2688mm	2.0mm-3.0mm
  	Ground main beam (short)	1.6mm floor leather	2.0mm-3.0mm
  	Flooring	1.0mm waterproof membrane	1.0mm floor leather, 1.6 plastic floor, 2.0 plastic floor, wood floor
  	Waterproof membrane	18mm cement modified board	Do not
  	ground	75mm glass wool + tin foil, 14kg/m³	15mm cement modified board, 18mm cement fiber board, 15mm multi-layer board
  	ground insulation	75mm glass wool + tin foil, 14kg/m³	100mm
  	roof secondary beam	3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm	Negotiable
  	Back cover color steel plate	Ø50mm, white PVC	0.4mm-0.6mm
  	surface treatment	75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³	Color can be customized
  wall system	Prism	3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm	2.0mm-3.0mm
  	drain pipe	Ø50mm, white PVC	Do not
  	wall panel	75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³	50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³
  	High-end anti-theft door	840mm*2035mm, steel	970mm*1970mm, equipped with anti-theft door
  	High with anti-theft window	1130mm*1130mm, double glass double push	925mm*1130mm, single glass single push plastic steel window

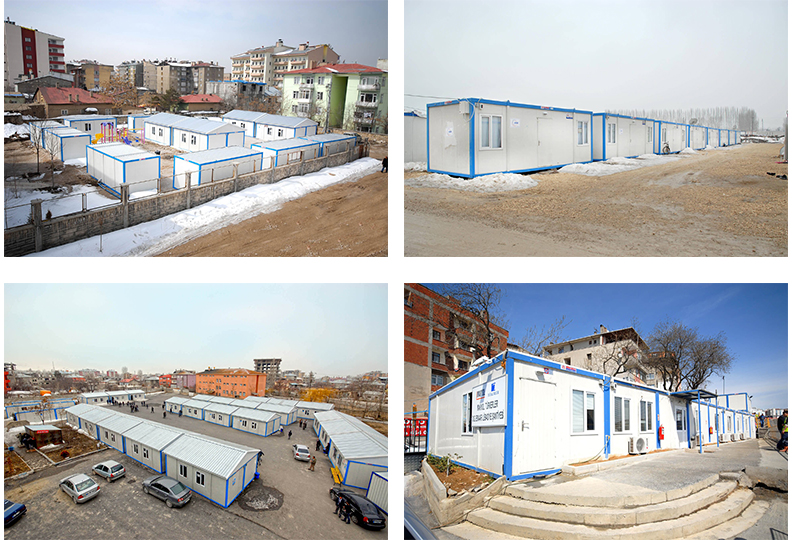

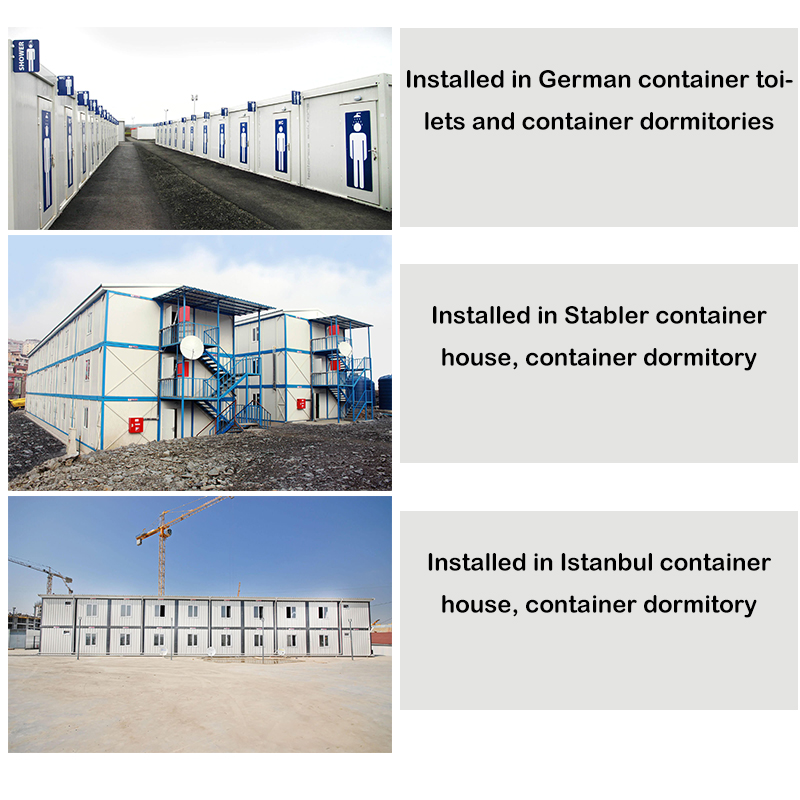

  success case











  FAQ

  1. How to heat the container?
  The top and all sides of the container are made of heat-insulating color tiles, which have a good heat-insulating effect.

  2. Will water enter the product outdoors?
  The top of the container house has a water guide design, and there is basically no water accumulation on the top. The contact between the side wall tiles and the steel frame needs to be waterproofed with glass glue.

  3. How long can the product be used and how long is the service life?
  The service life of container products is generally about 15-20 years. The local climate and environment are different, which will affect the service life

  . 4. How is the shock resistance of the product?
  The seismic capacity of container products is generally 7-8 seismic

  5. Do container houses need crane installation?
  There is no need to use a crane for installation. It depends on the type. Cranes are generally used for unfolding or folding containers. Others can be solved by hoisting

  . 6. What are the main points of the rainproof position?
  Generally, it is necessary to pay attention to the seam where the color tile board and the steel structure are in contact, and the appearance is rainproof and waterproof. Attention should be paid to the position of the folding hinge and the position of the unfolding angle.

  7. How is the wind resistance of the product?
  Wind resistance of container products: wind speed ≤ 120km/h

  8. What is the general construction period of container products?
  The general production cycle of container products is 15-20 days

  . 9. Will anti-theft nets be installed in the window of container products?
  Conventional products are not equipped with a window anti-theft net, but can be equipped with anti-theft net accessories

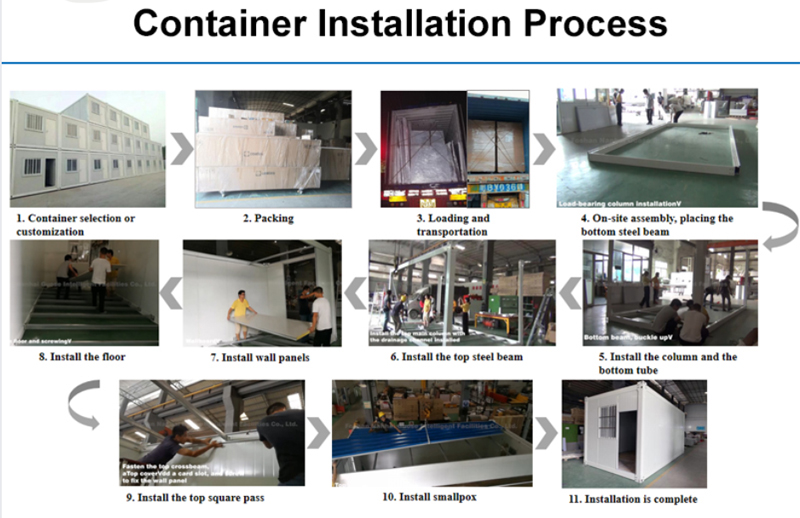

  10. Is there an installation manual for this product?
  There are installation instructions, we will also provide a short installation video for customers to understand the installation
