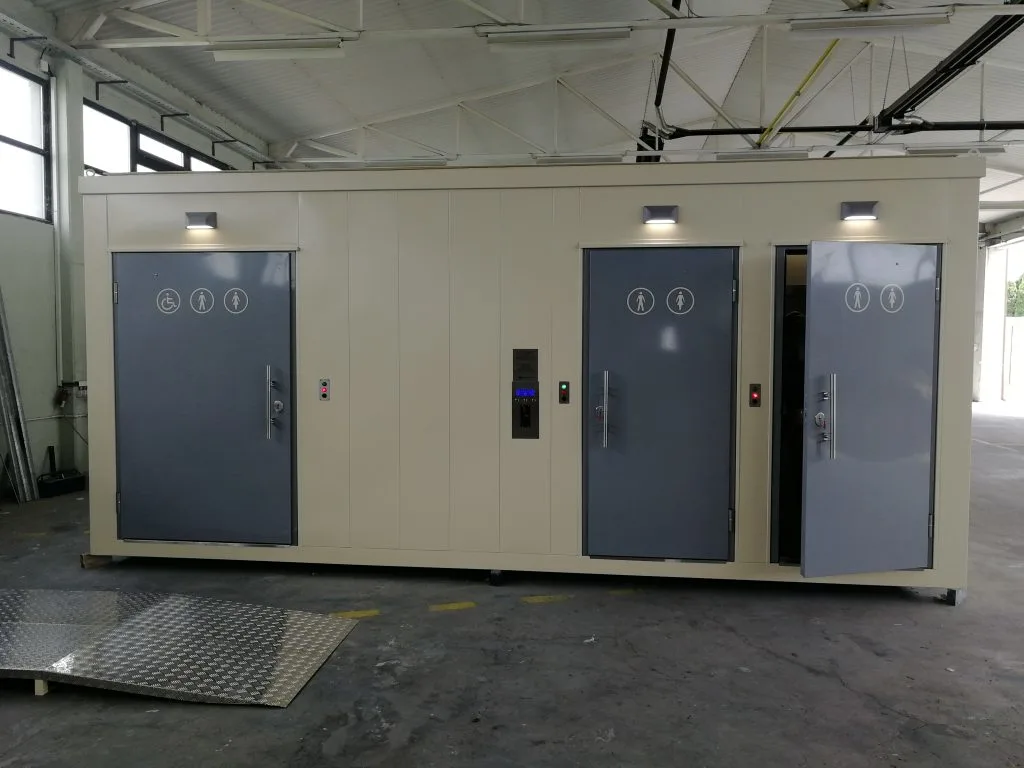

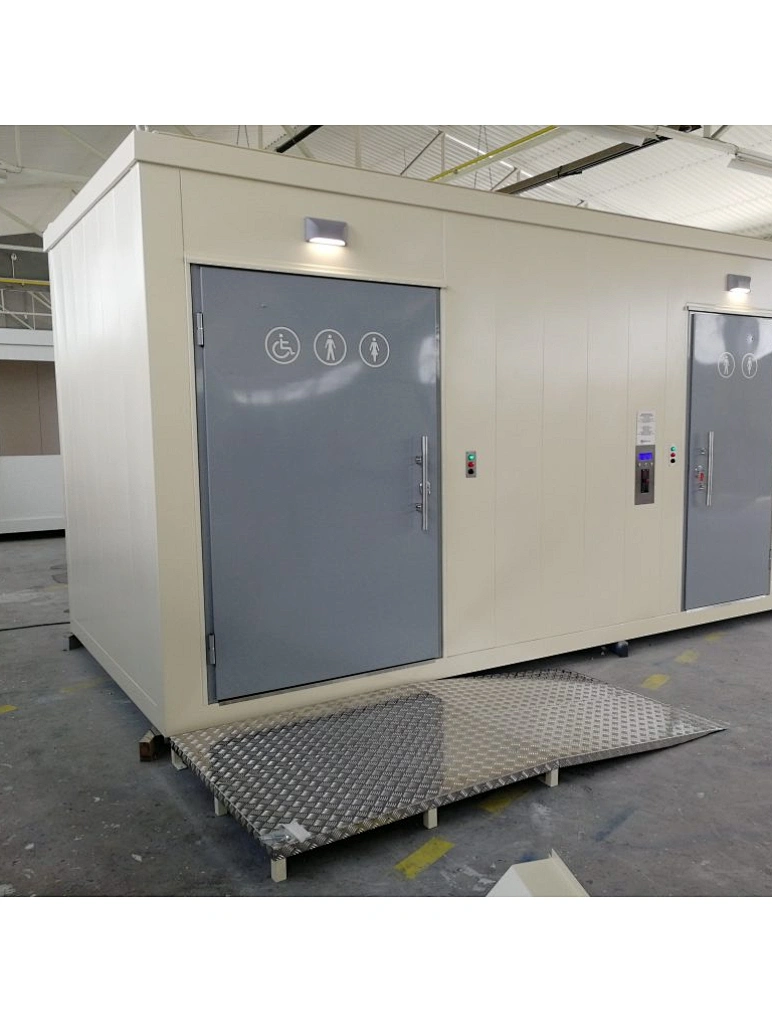

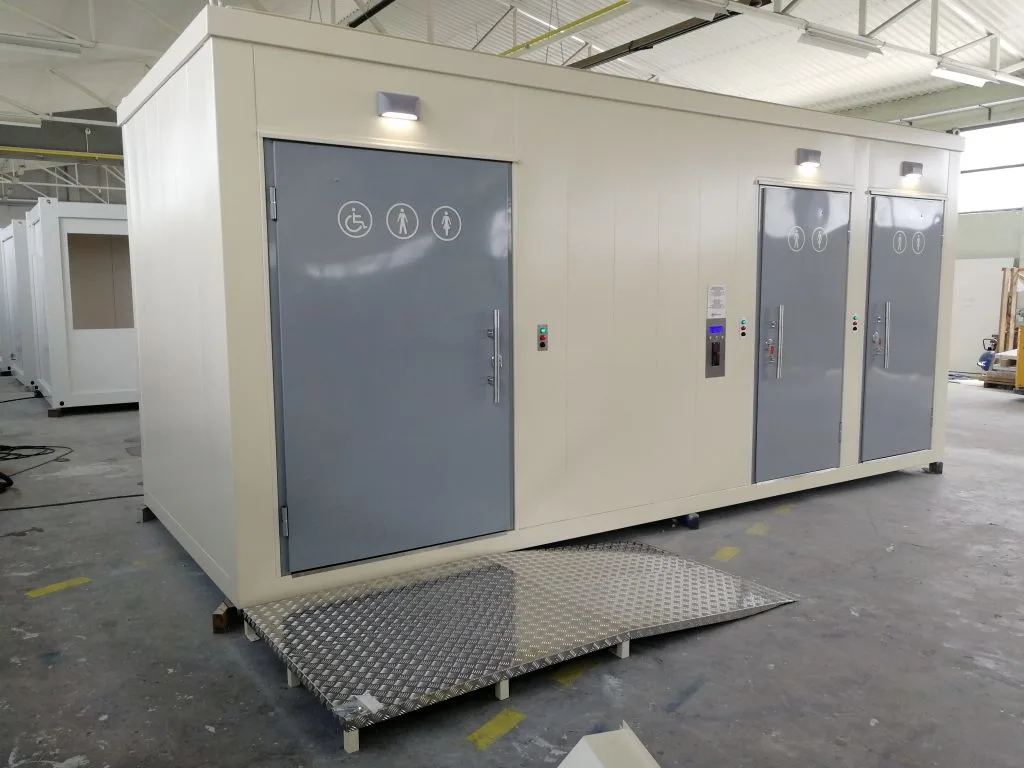

Quick Assemble Container Toilet
083
1 set
Guangdong
Warranty period: 3 years
After-sales service: online technical support
Project solving capabilities: graphic design, 3D model design, overall project solutions, cross-category integration,
Application: Rapid assembly of container toilets
Place of Origin: Guangdong, China
Brand name: HY
Uses: carport, hotel, house, kiosk, booth, shop, warehouse,
Product Type: Quick Assembly Container Toilet
Design style: modern
Keywords: quick assembly container toilet
Color: customized color
Purpose: Quickly assemble container toilets
Features: Waterproof
Style: simple and modern
Light source: LED light
Material: Steel Stressed / Aluminum / Galvanized
Certificate: ISO9001
Function: Advertising function
After-sales service: online technical support
Project solving capabilities: graphic design, 3D model design, overall project solutions, cross-category integration,
Application: Rapid assembly of container toilets
Place of Origin: Guangdong, China
Brand name: HY
Uses: carport, hotel, house, kiosk, booth, shop, warehouse,
Product Type: Quick Assembly Container Toilet
Design style: modern
Keywords: quick assembly container toilet
Color: customized color
Purpose: Quickly assemble container toilets
Features: Waterproof
Style: simple and modern
Light source: LED light
Material: Steel Stressed / Aluminum / Galvanized
Certificate: ISO9001
Function: Advertising function
Quantity
- Warranty period: 3 years
- After-sales service: online technical support
- Project solving capabilities: graphic design, 3D model design, overall project solutions, cross-category integration,
- Application:Quick Assemble Container Toilet
- Place of Origin: Guangdong, China
- Brand name: HY
- Uses: carport, hotel, house, kiosk, booth, shop, warehouse,
- Product Type:Quick Assemble Container Toilet
- Design style: modern
- Keywords:Quick Assemble Container Toilet
- Color: customized color
- Purpose:Quick Assemble Container Toilet
- Features: Waterproof
- Style: simple and modern
- Light source: LED light
- Material: Steel Stressed / Aluminum / Galvanized
- Certificate: ISO9001
- Function: Advertising function

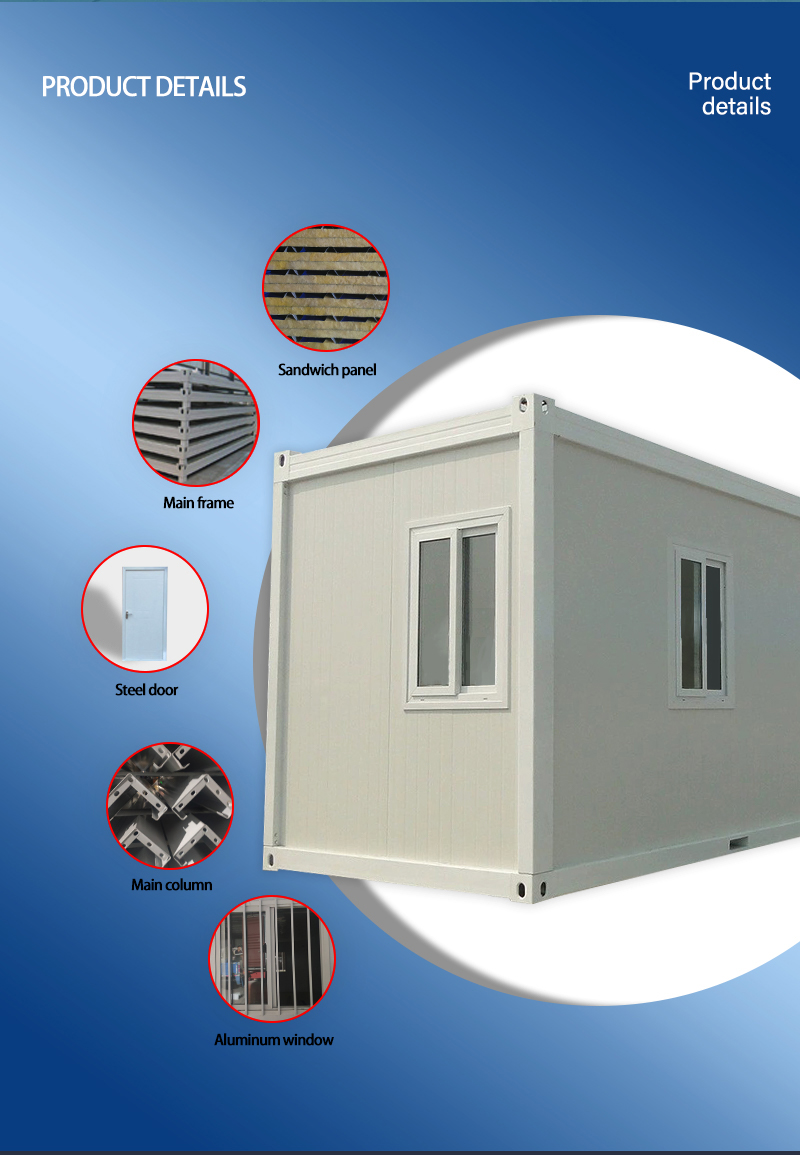

product description
part | Part Name | Standard material | Elective |
Top rack system | upper corner piece | 3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*210mm | Do not |
Roof main beam (long) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 5633mm | 2.0mm-3.0mm | |
Roof main beam (short) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 170mm, length: 2688mm | 2.0mm-3.0mm | |
roof | 75mm glass wool + tin foil, 14kg/m³ | 0.4mm-0.6mm | |
roof insulation | C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing amount 80g/㎡ | 100mm | |
roof secondary beam | 0.4mm, 831 color steel integrated ceiling panel, mezzanine | Negotiable | |
ceiling | Electrostatic spraying (white) | 0.4mm-0.6mm | |
surface treatment | 3.5mm upper corner piece, galvanized weight 80g/㎡ 210*150*160mm | Color can be customized | |
low frame system | lower corner piece | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 5633mm | Do not |
Ground main beam (long) | 3.0mm galvanized forming beam, galvanized weight 80g/㎡, width: 160mm, length: 2688mm | 2.0mm-3.0mm | |
Ground main beam (short) | 1.6mm floor leather | 2.0mm-3.0mm | |
Flooring | 1.0mm waterproof membrane | 1.0mm floor leather, 1.6 plastic floor, 2.0 plastic floor, wood floor | |
Waterproof membrane | 18mm cement modified board | Do not | |
ground | 75mm glass wool + tin foil, 14kg/m³ | 15mm cement modified board, 18mm cement fiber board, 15mm multi-layer board | |
ground insulation | 75mm glass wool + tin foil, 14kg/m³ | 100mm | |
roof secondary beam | 3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm | Negotiable | |
Back cover color steel plate | Ø50mm, white PVC | 0.4mm-0.6mm | |
surface treatment | 75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³ | Color can be customized | |
wall system | Prism | 3.0mm galvanized column, galvanized weight 80g/㎡ 210mm*150mm, height 2520mm | 2.0mm-3.0mm |
drain pipe | Ø50mm, white PVC | Do not | |
wall panel | 75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³ | 50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³ | |
High-end anti-theft door | 840mm*2035mm, steel | 970mm*1970mm, equipped with anti-theft door | |
High with anti-theft window | 1130mm*1130mm, double glass double push | 925mm*1130mm, single glass single push plastic steel window |

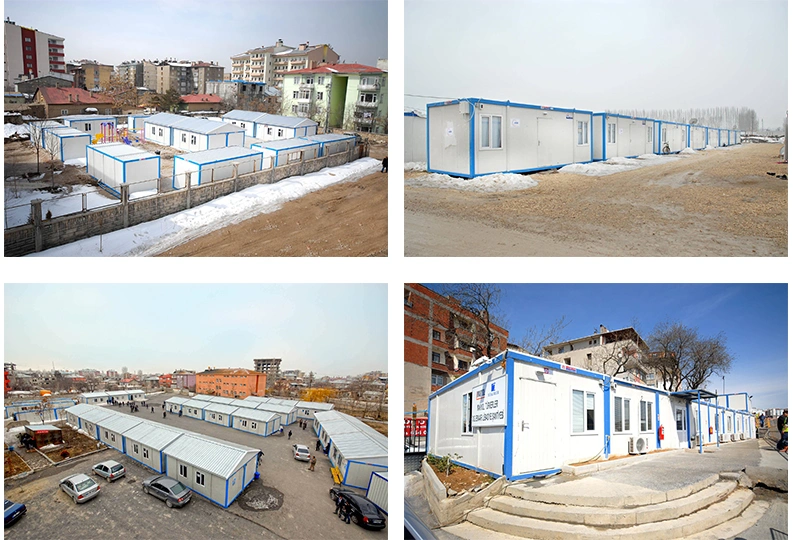

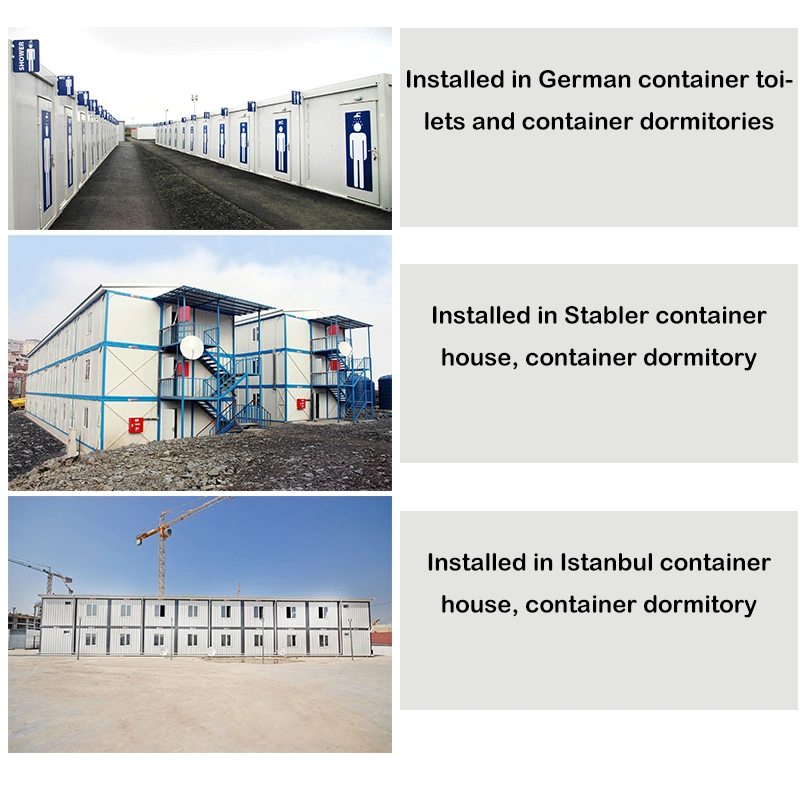

Success StoriesFAQ1
FAQ
1.How to heat the container?
The top and all sides of the container are made of heat-insulating color tiles, which have a good heat-insulating effect.
2. Will water enter the product outdoors?
The top of the container house has a water guide design, and there is basically no water accumulation on the top. The contact between the side wall tiles and the steel frame needs to be waterproofed with glass glue.
3. How long can the product be used and how long is the service life?
The service life of container products is generally about 15-20 years. The local climate and environment are different, which will affect the service life
. 4. How is the shock resistance of the product?
The seismic capacity of container products is generally 7-8 seismic
5. Do container houses need crane installation?

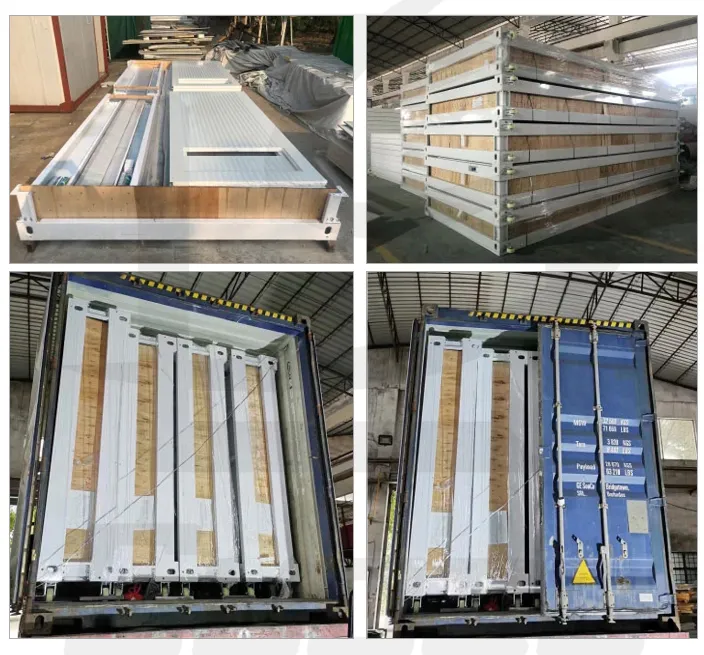

There is no need to use a crane for installation. It depends on the type. Cranes are generally used for unfolding or folding containers. Others can be solved by hoisting
. 6. What are the main points of the rainproof position?
Generally, it is necessary to pay attention to the seam where the color tile board and the steel structure are in contact, and the appearance is rainproof and waterproof. Attention should be paid to the position of the folding hinge and the position of the unfolding angle.
7. How is the wind resistance of the product?
Wind resistance of container products: wind speed ≤ 120km/h
8. What is the general construction period of container products?
The general production cycle of container products is 15-20 days
. 9. Will anti-theft nets be installed in the window of container products?
Conventional products are not equipped with a window anti-theft net, but can be equipped with anti-theft net accessories
10. Is there an installation manual for this product?
There are installation instructions, we will also provide a short installation video for customers to understand the installation
