Prefabricated Steel Structure Building Design Cow Farm Shed

Steel Structure Building Design Cow Farm
Prefabricated Steel Structure Building Design Cow Farm Shed
1 ton
7000ton / Month
  • Standard: GB
    Grade: Q235 Q345B, Steel Q345B (S355JR; ASTM 50Ksi); Q235B (S235JR)
    Place of Origin: Guangdong, China
    Model: A-200
    Type: Lightweight Steel Structure cow farm
    Application: cow farm
    Tolerance: ±3%
    Processing services: bending, welding, uncoiling, cutting, punching
    Delivery time: 22-30 days
    Main structure: steel column steel beam
    Roof/Wall Purlins:C/Z Steel
    Secondary structure: purlins; bracing; knee pads, etc.
    Cladding: PU/rock wool/glass fiber/EPS
    Accessories: sunroof belt; ventilator; downspout; gutters, etc.
    Doors: Sliding Doors/Rolling Doors
    Window: Aluminum alloy window
    Drawing: Auto CAD
  • detailed photo
    neck lock
    product description

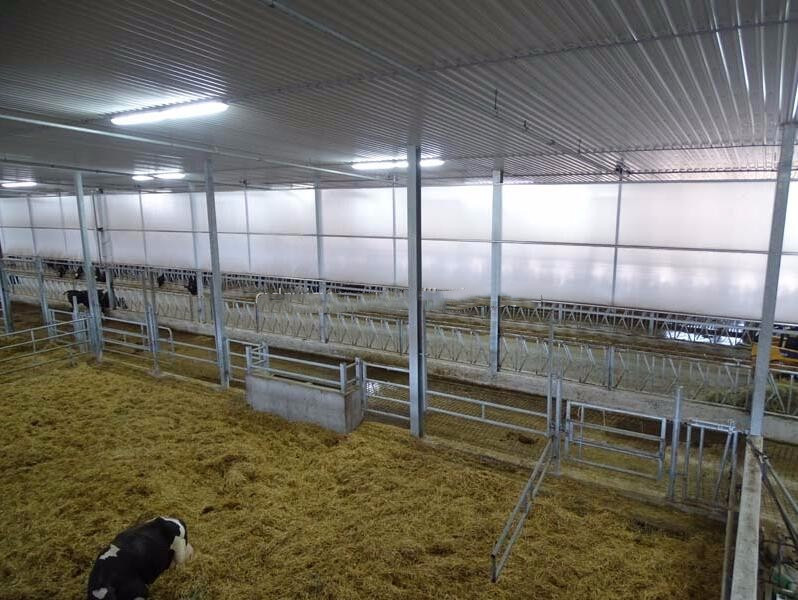

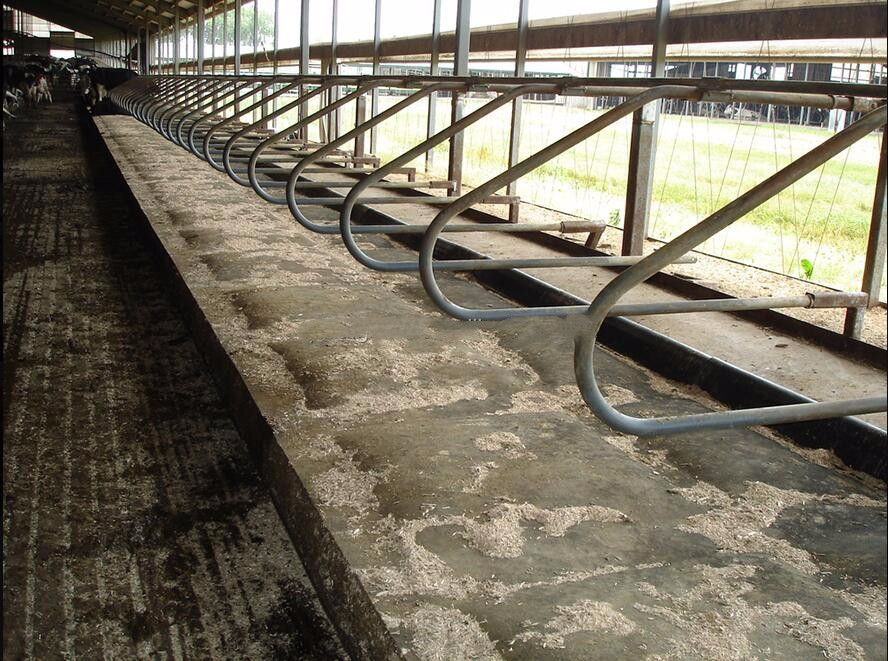

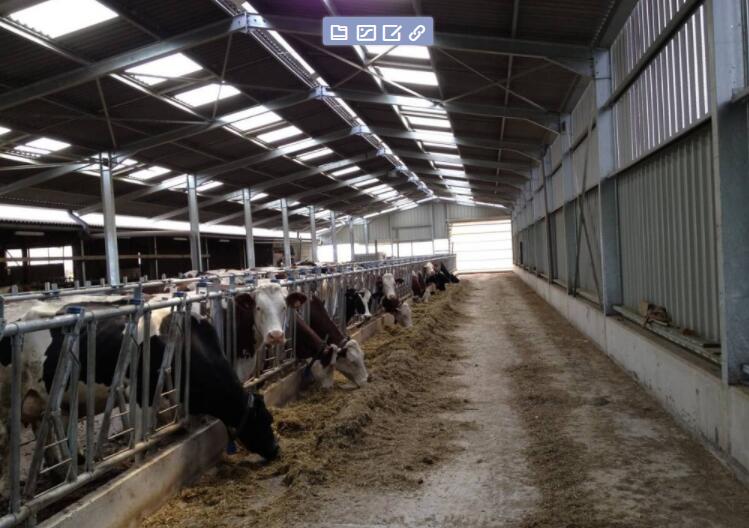

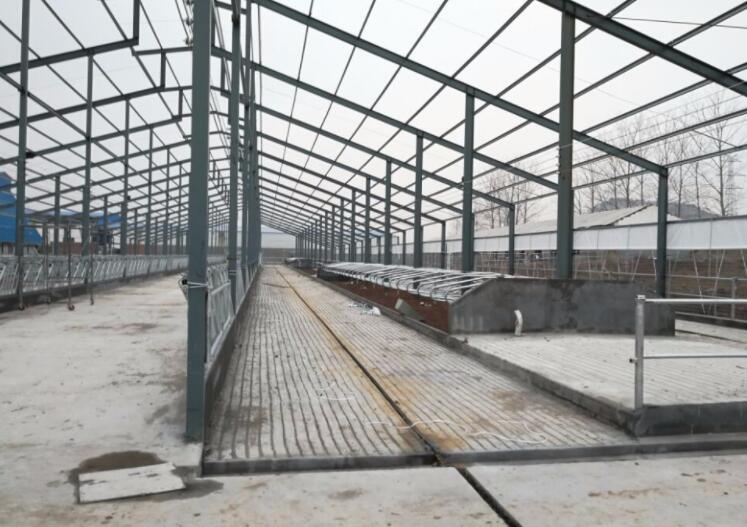

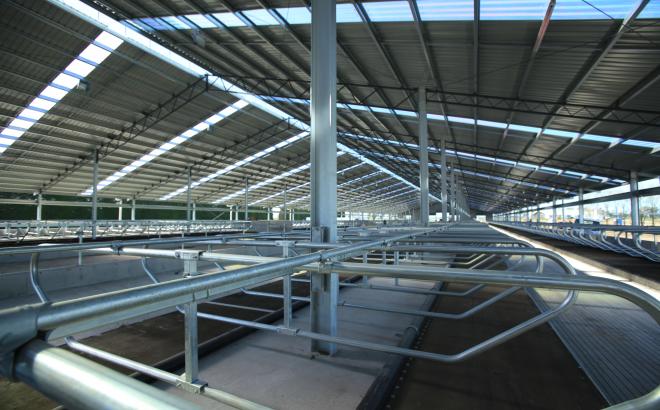

    Prefabricated steel structure building design cattle farm shed
    Prefabricated steel structure cowsheds are widely used in current dairy farms. The frame is made of high-quality H-shaped steel structure, and the roof and walls are covered with color steel plates or sandwich panels. The cowshed provides weatherproof protection for cows. .Allsizes can be customized according to your requirements.

    ♦Low cost: save about 15%-30% cost compared with traditional concrete buildings;
    Strong structure: strong wind resistance;
    ♦Easy installation: all parts are prefabricated and bolted on site without welding;
    ♦ Low maintenance: long service life and low maintenance rate;
    steel building code
    main steel frame
    steel column beam
    1. Material: Q345B (S355JR) or Q235B (S235JR)
    welded/hot rolled H-beam
    2. Surface: hot-dip galvanized or painted;
    3. Connection method: full bolt connection;
    Supporting system

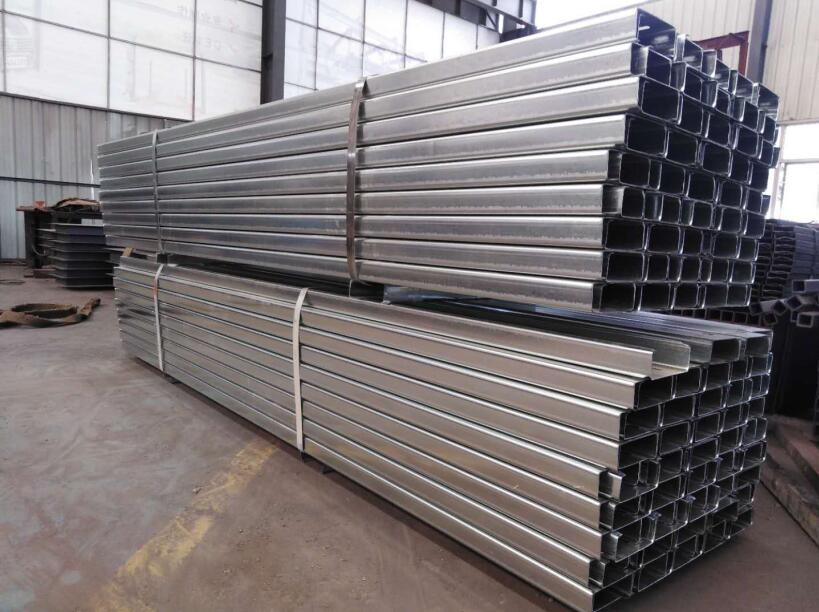

    Roof Purlins
    C or Z-section steel, Q235B
    wall purlin
    C or Z-section steel, Q235B
    Gangbang, Q235B
    cross support
    Gangbang, Q235B
    column support
    Angle steel; steel rod; Q235B
    Angle steel, Q235B
    Tie clips
    Steel pipe, Q235B
    Roof and Wall Systems
    1. Single color corrugated steel plate;
    thickness: 0.3-0.8mm
    2. EPS, rock wool, glass fiber, PU sandwich panel;
    thickness: 50-150mm;
    Sliding;rolling shutter (manual/automatic)
    Aluminum alloy; PVC;
    PVC pipe;
    Galvanized steel; stainless steel

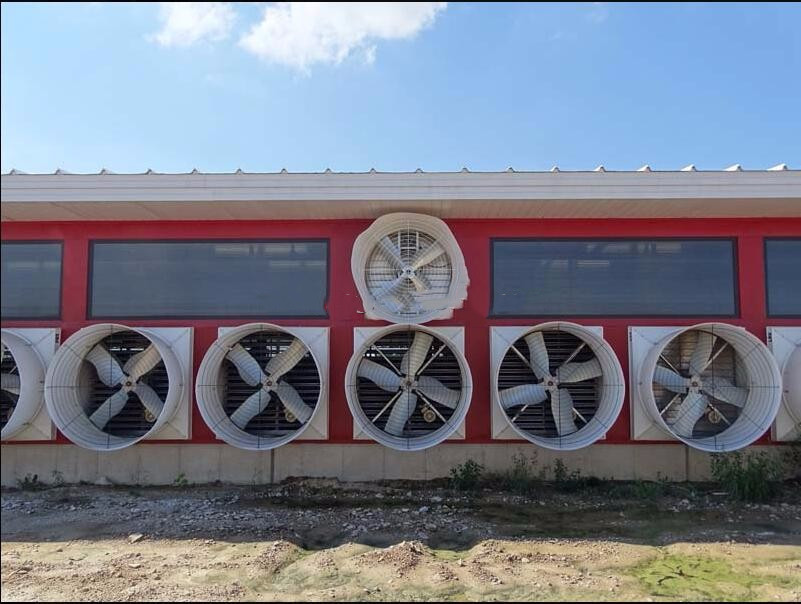

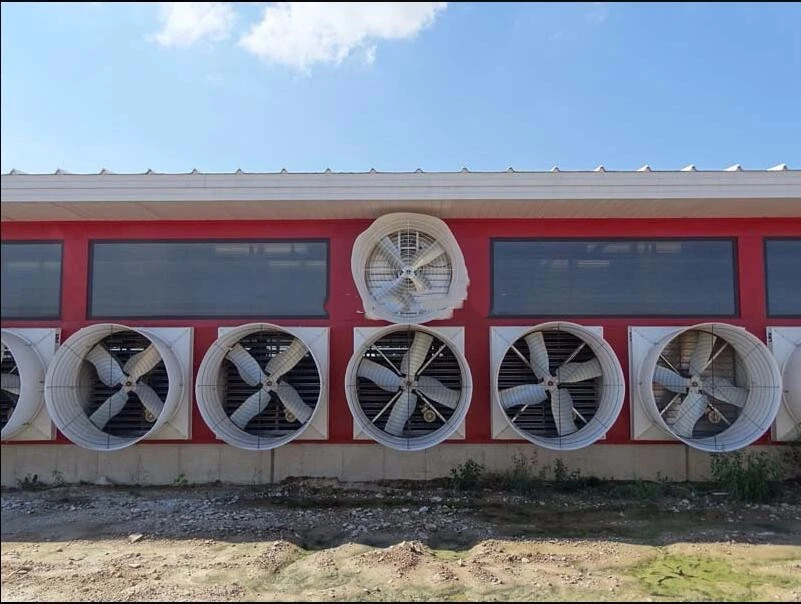

    Stainless Steel Turbo Fan
    sunroof belt
    FRP or PC translucent skylight strip
    Color steel plate

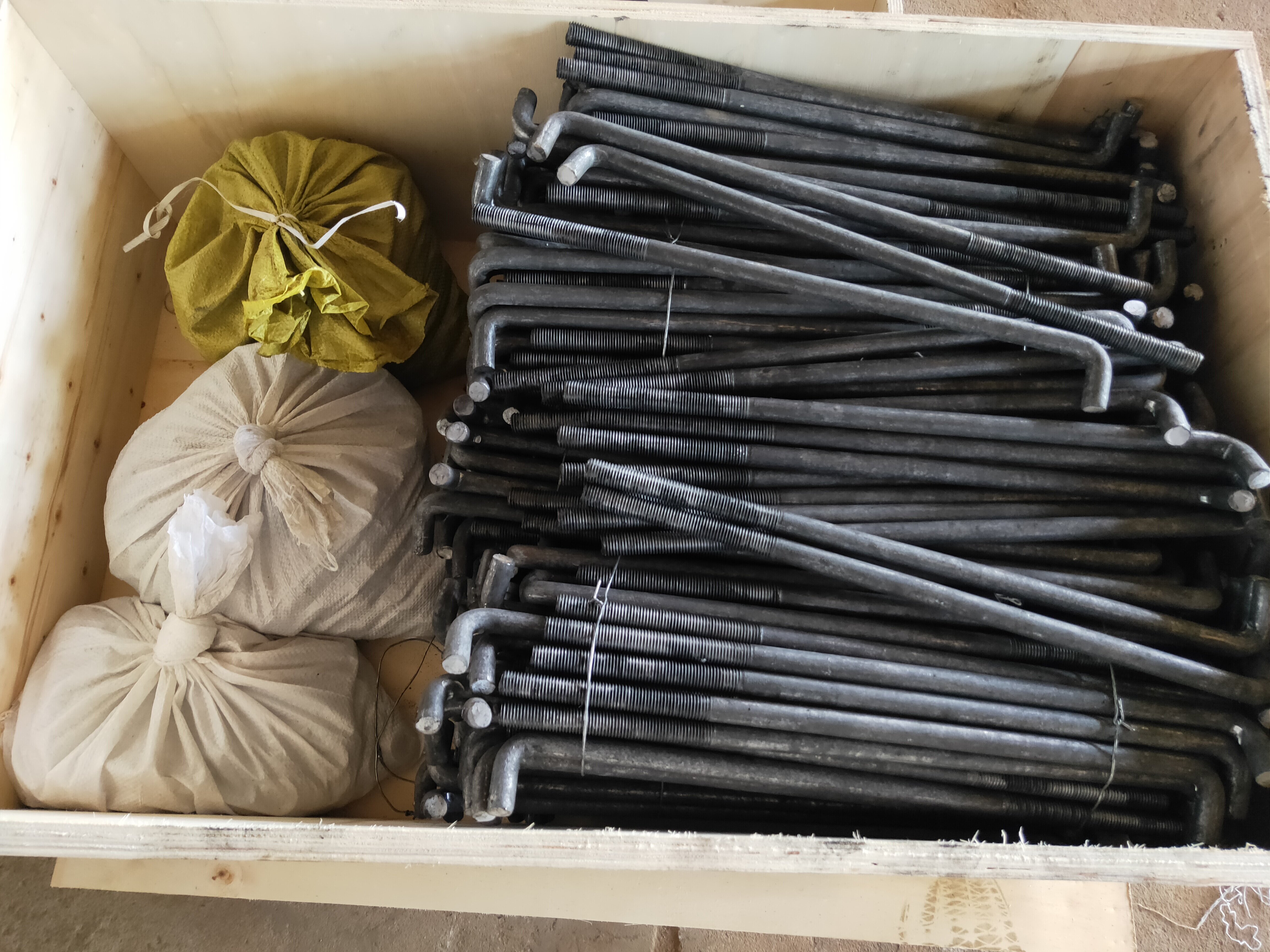

    Anchor bolts; high- strength bolts; ordinary bolts, self-tapping screws, etc.

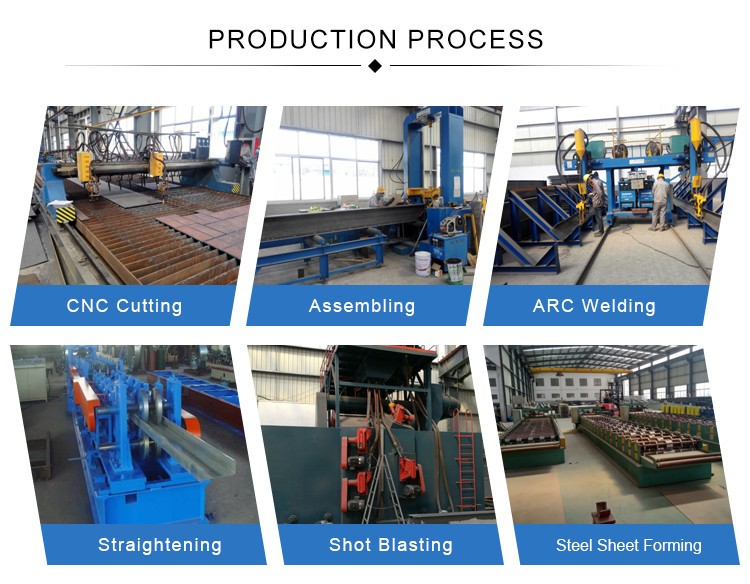

    Production Process

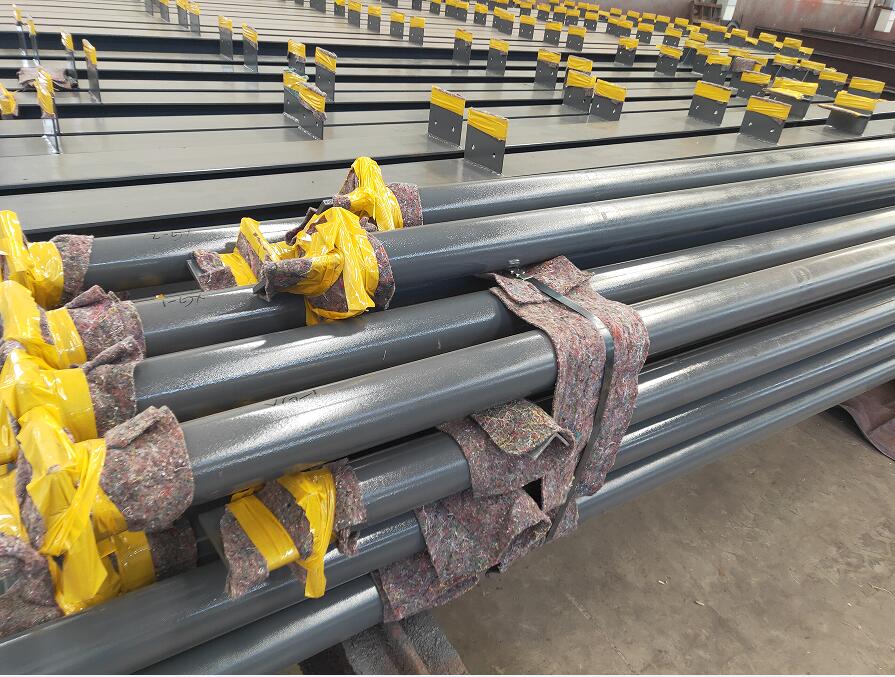

    Packaging and Delivery

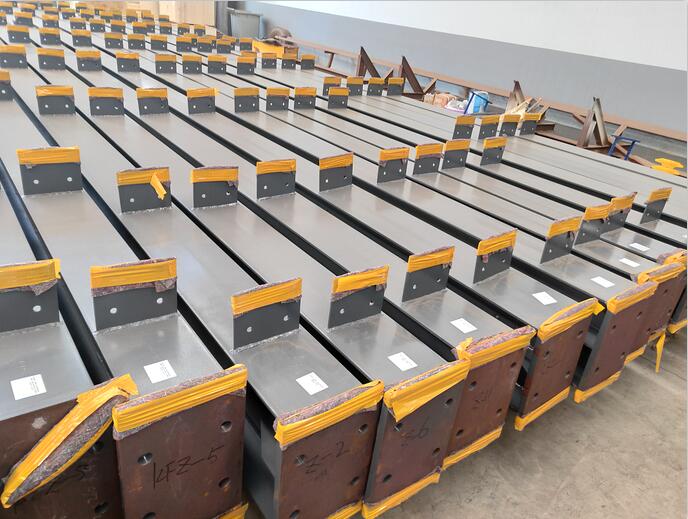

    In order to protect the goods and avoid damage during transportation, the goods are well packaged; the frame steel structure

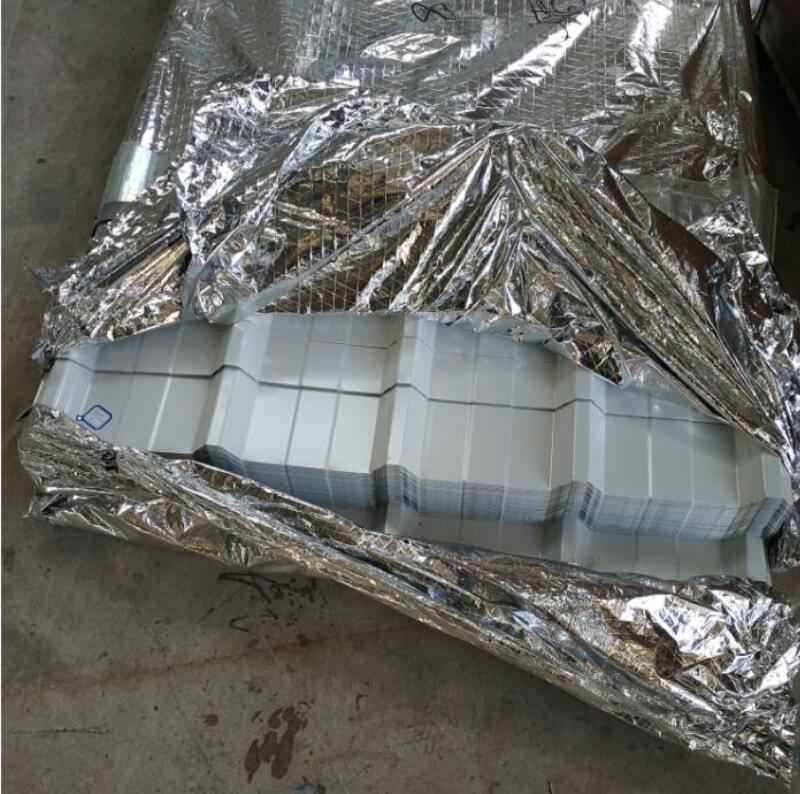

    , the edges are wrapped with cloth, the purlins are bundled, the color steel plate is wrapped with kraft paper, and the accessories and small parts are put into plywood;
    our service
    1. Free design service
    We have a professional design team, we can provide complete detailed drawings according to your requirements; the software we use: Auto CAD, Tekla, PKPM, MTS, 3D3S, Tarch, etc.;
    2. Quality Control and Quality Assurance Services
    From raw materials, various processing procedures, and finished products; for each process, we have professional quality control personnel to conduct quality inspections; to ensure that the finished products of each process are qualified, and the quality of the final products is highly guaranteed;
    we also accept customers to send third-party testing agencies to us Factory inspects quality or supervises packing;
    besides, we can trade through Alibaba Trade Assurance;
    3. Installation service
    We will provide detailed installation drawings; if needed, we can also send our engineers to overseas to guide the installation.

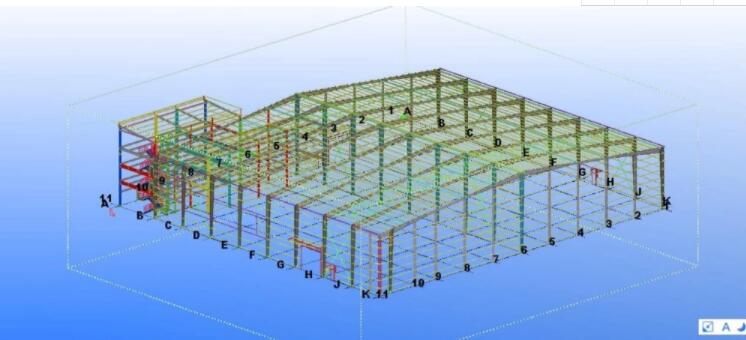

    3D drawing
    3D pictures are available if available!

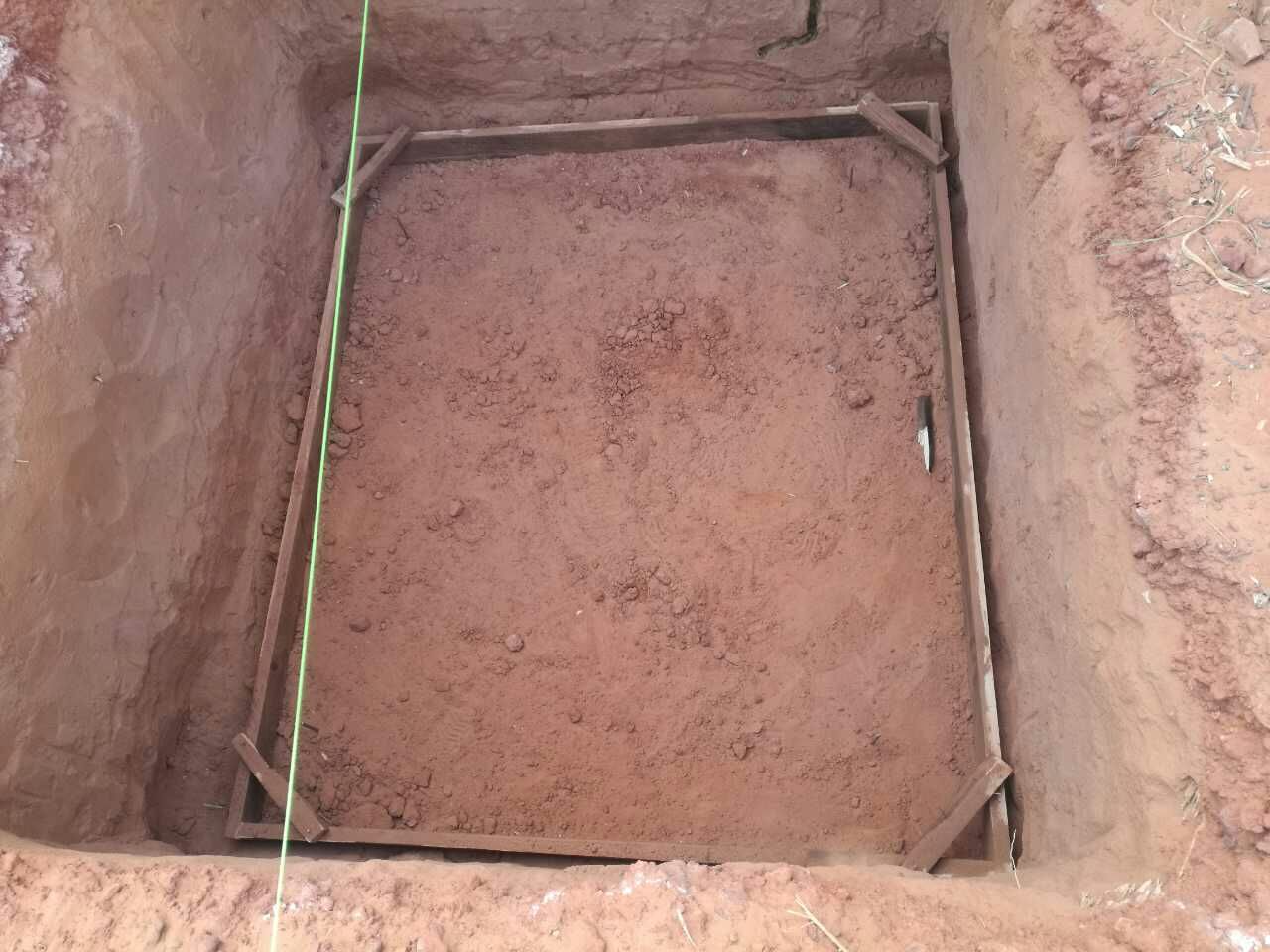

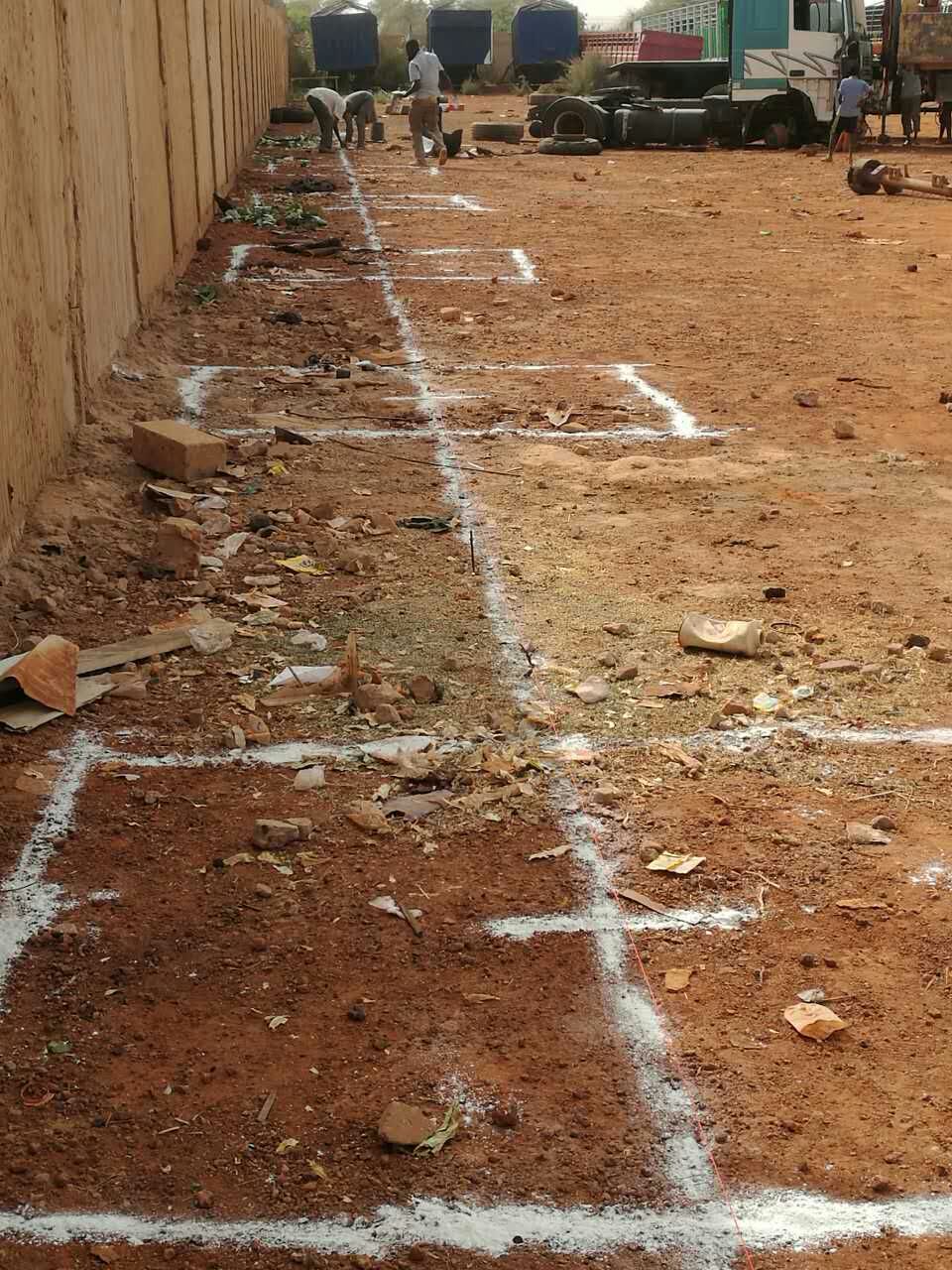

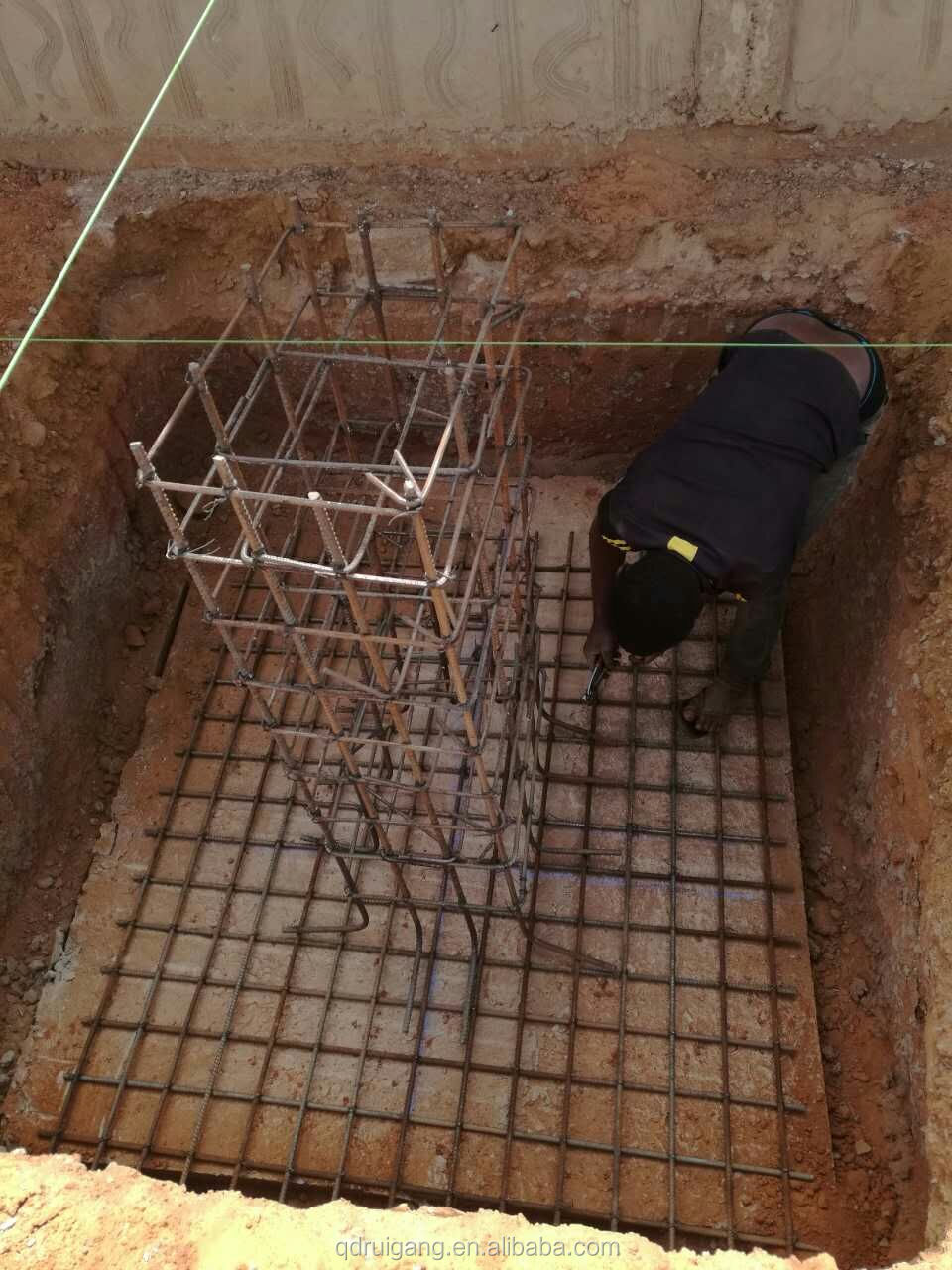

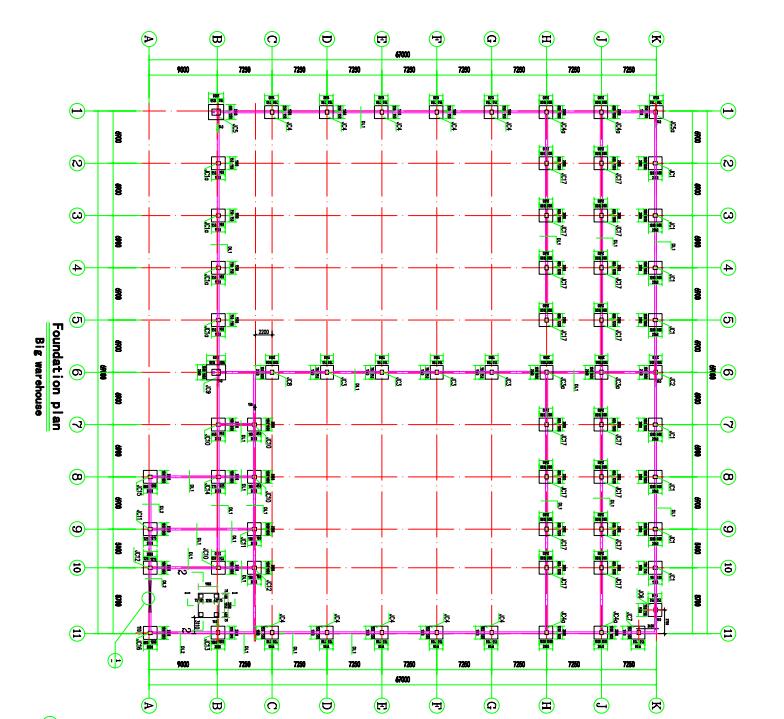

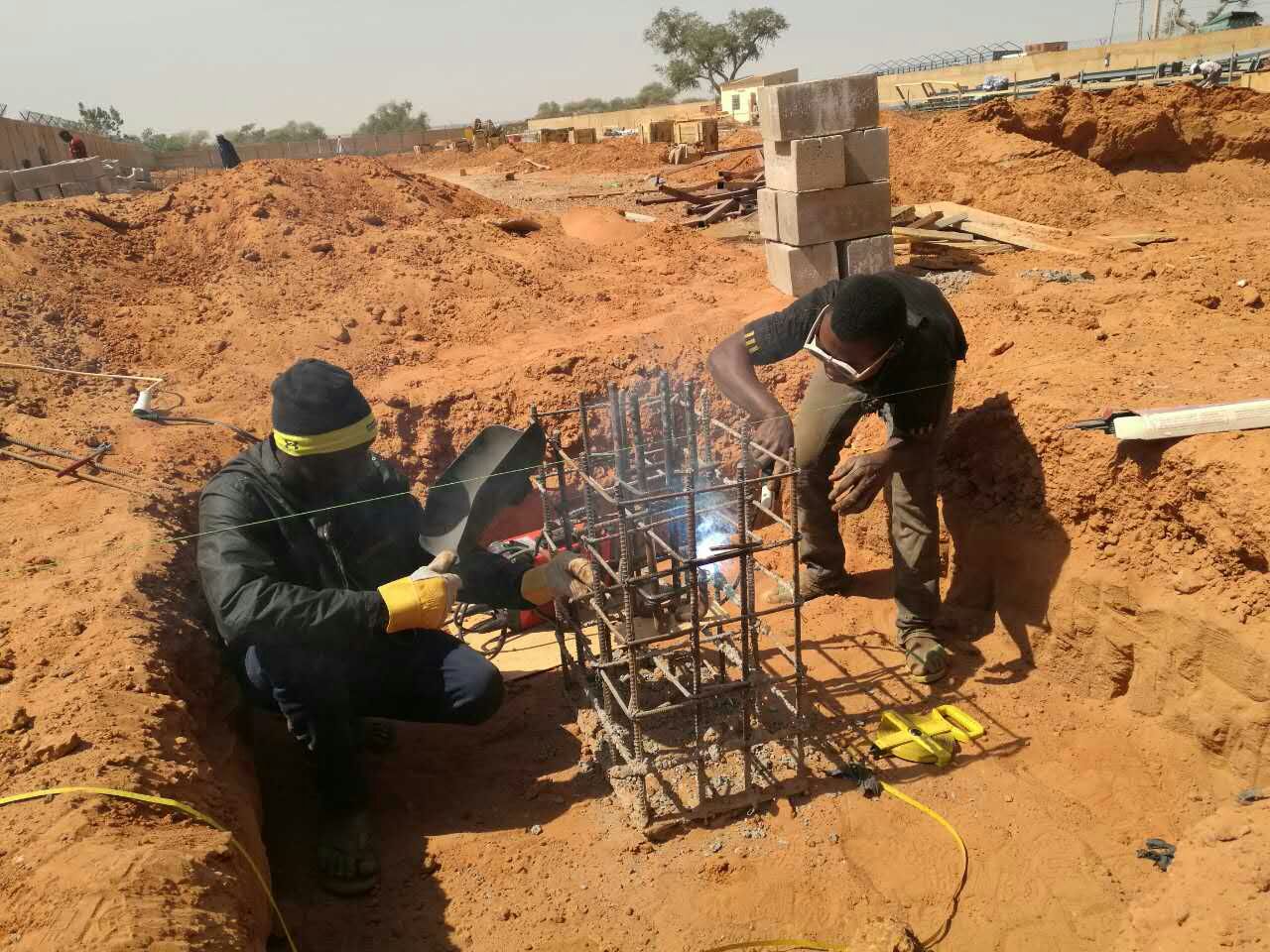

    Foundation drawing
    Before doing the civil work, you can provide the basic drawing for reference!

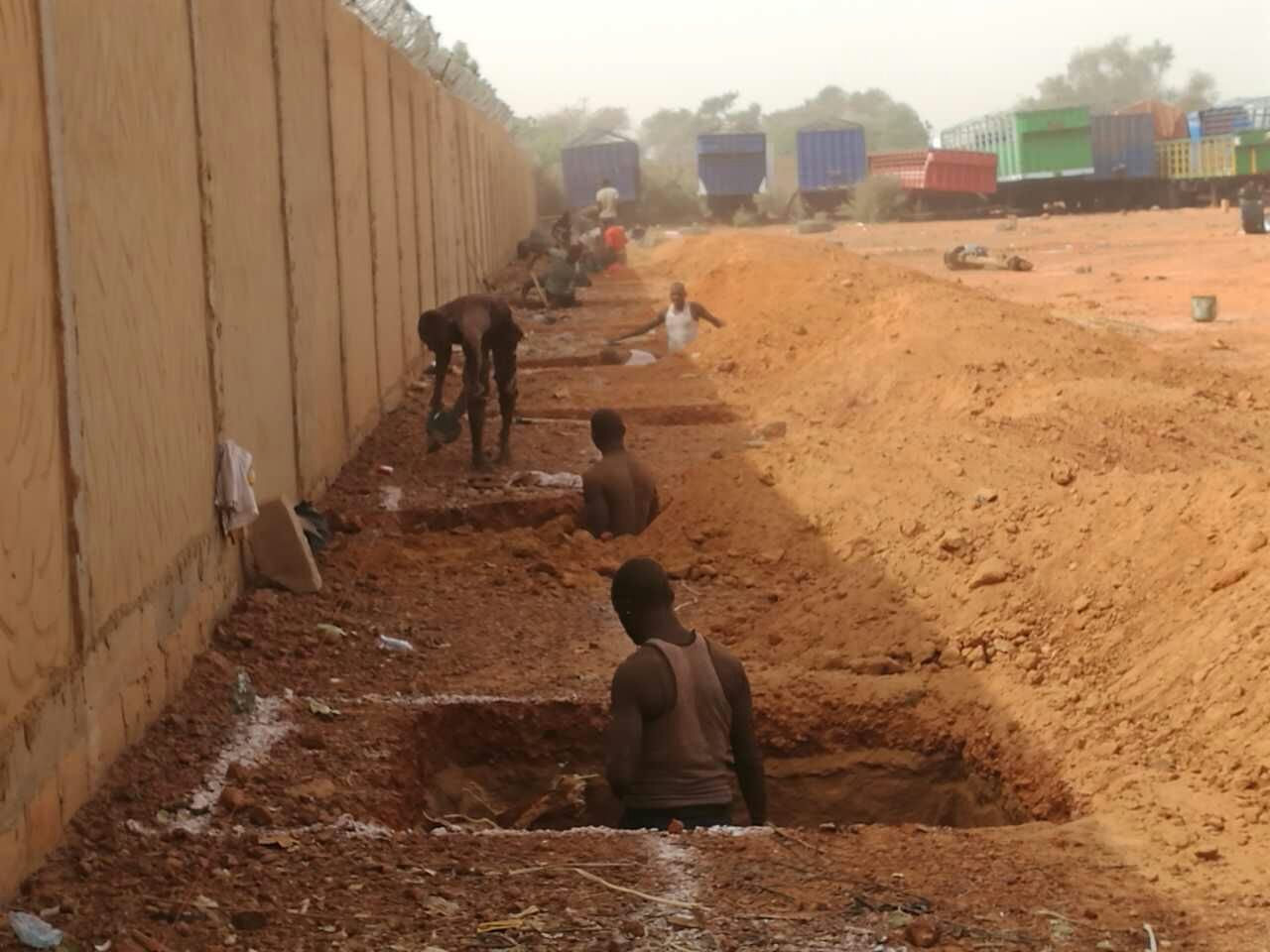

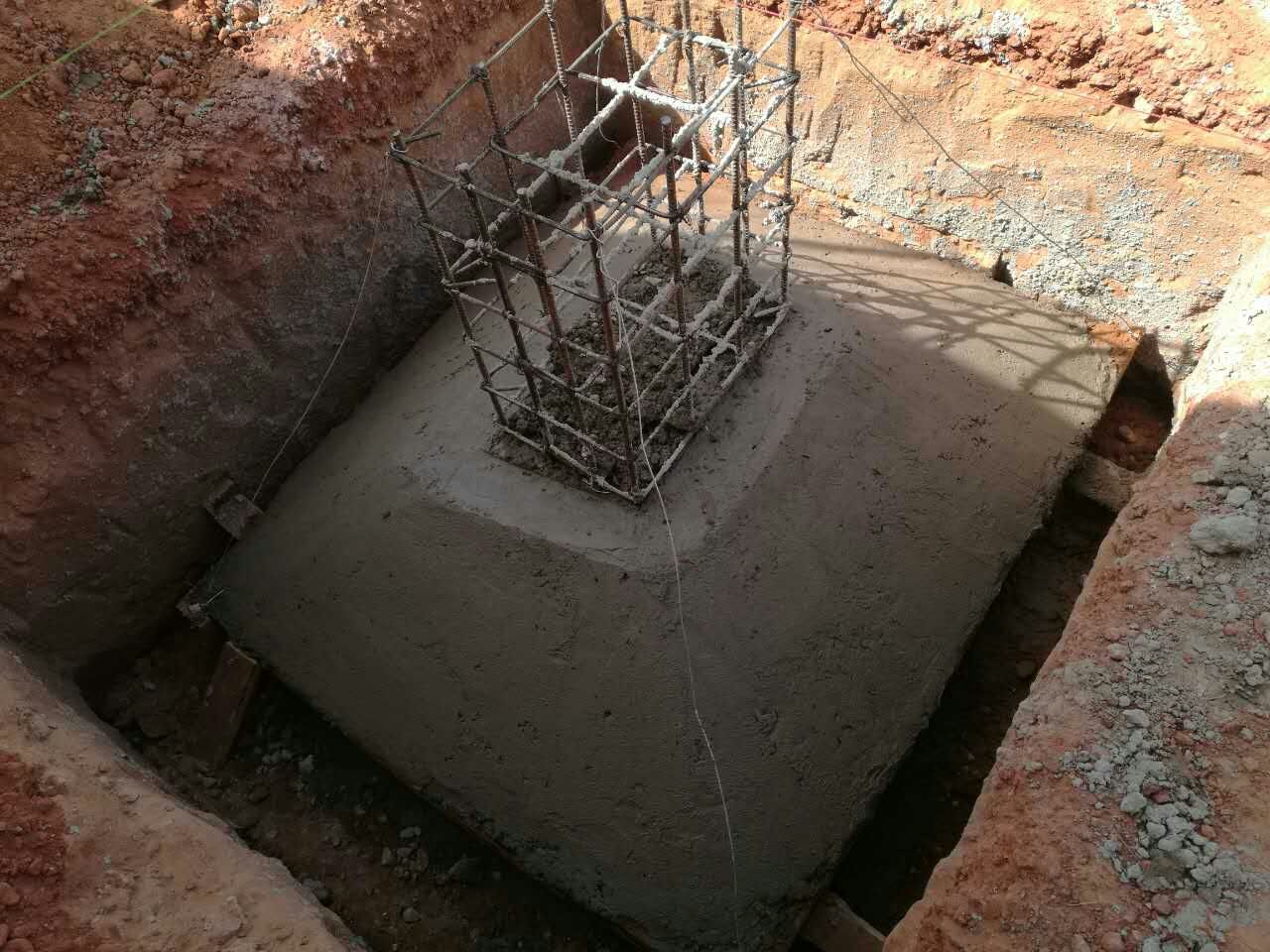

    basic process

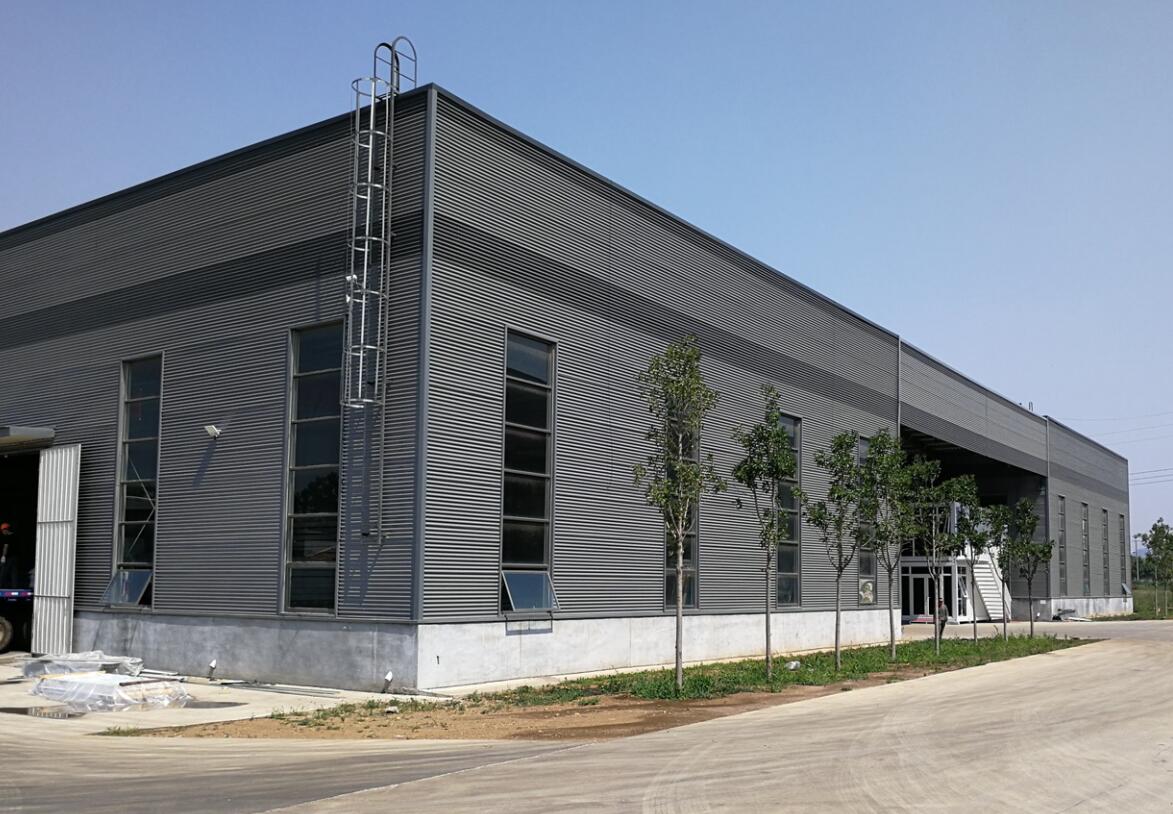

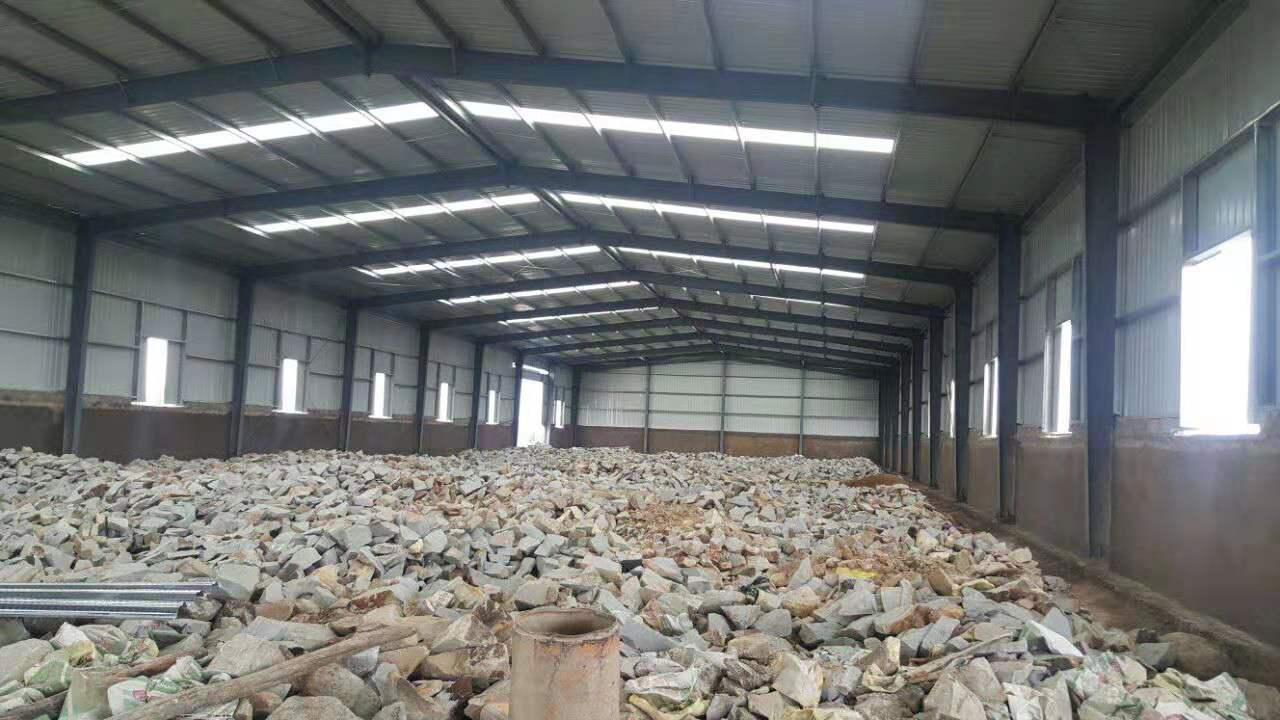

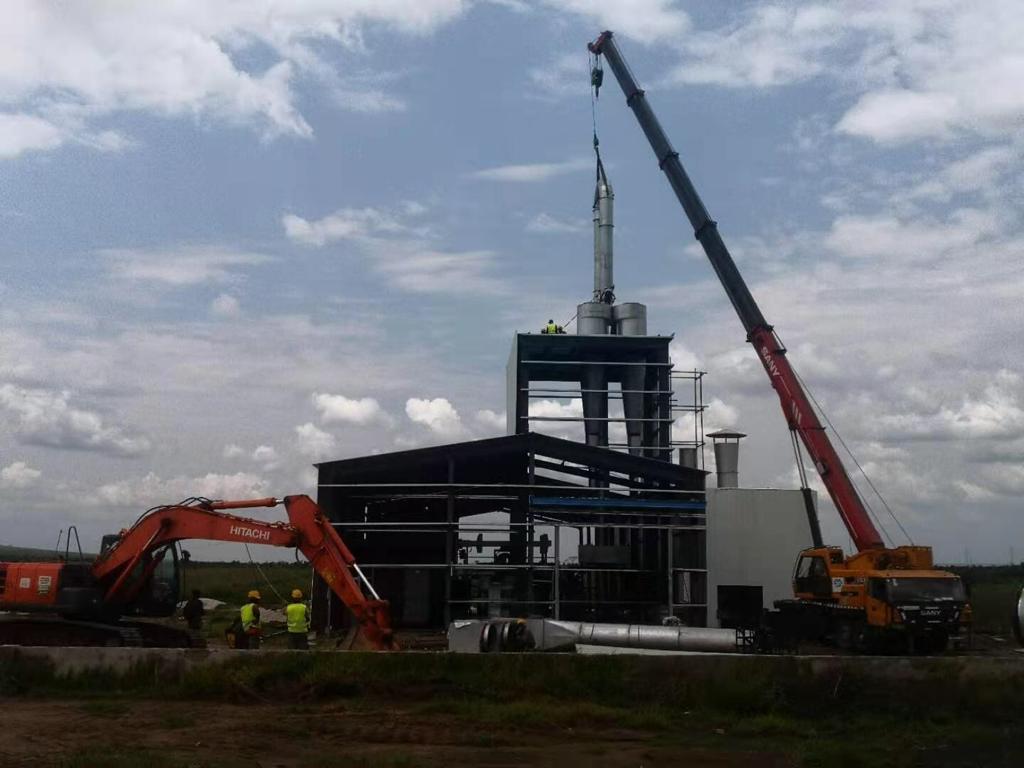

    Project display

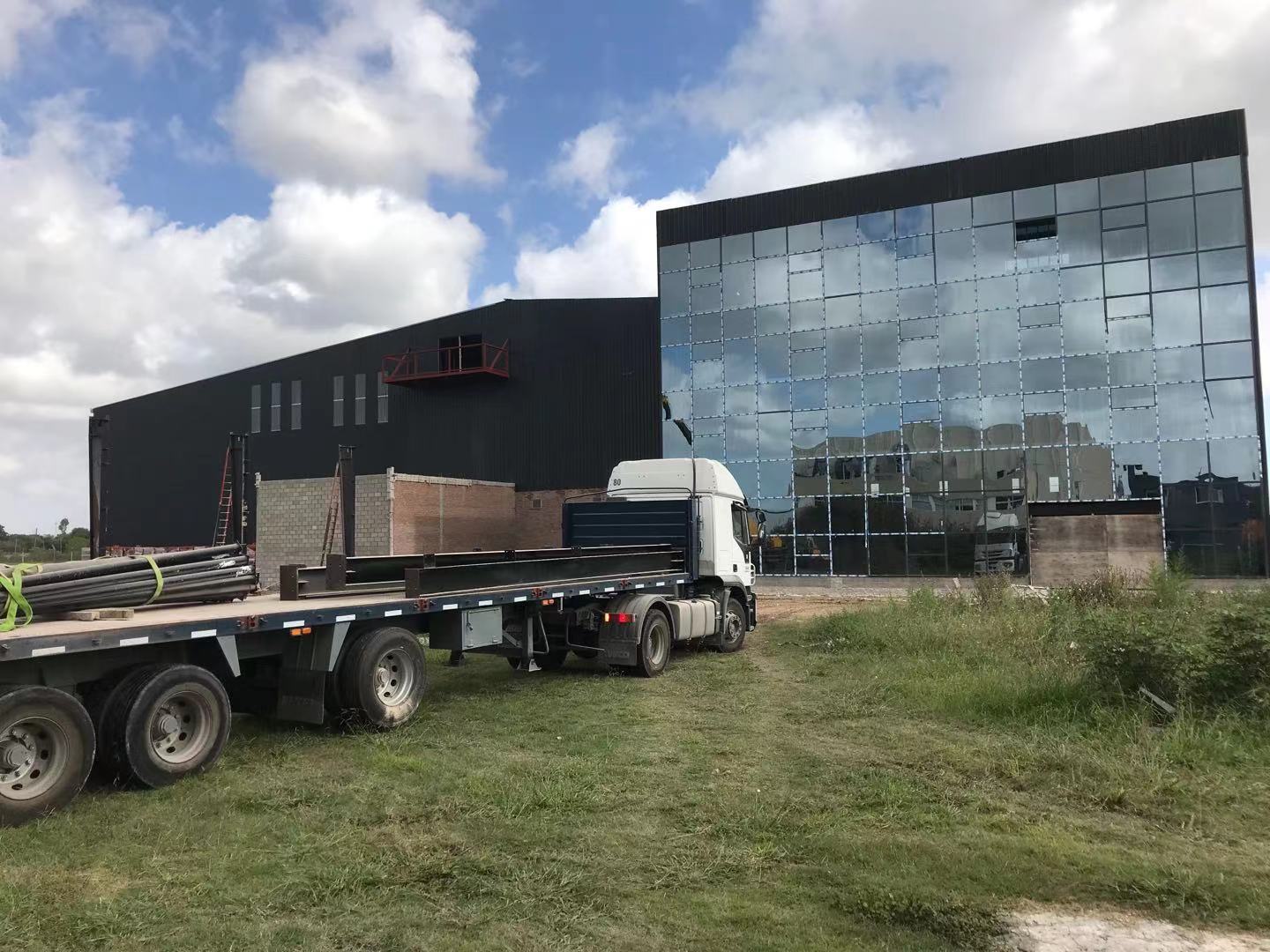

    Prefab workshops and office buildings in Argentina
    Prefab warehouse in Ethiopia
    Hungarian prefab workshop

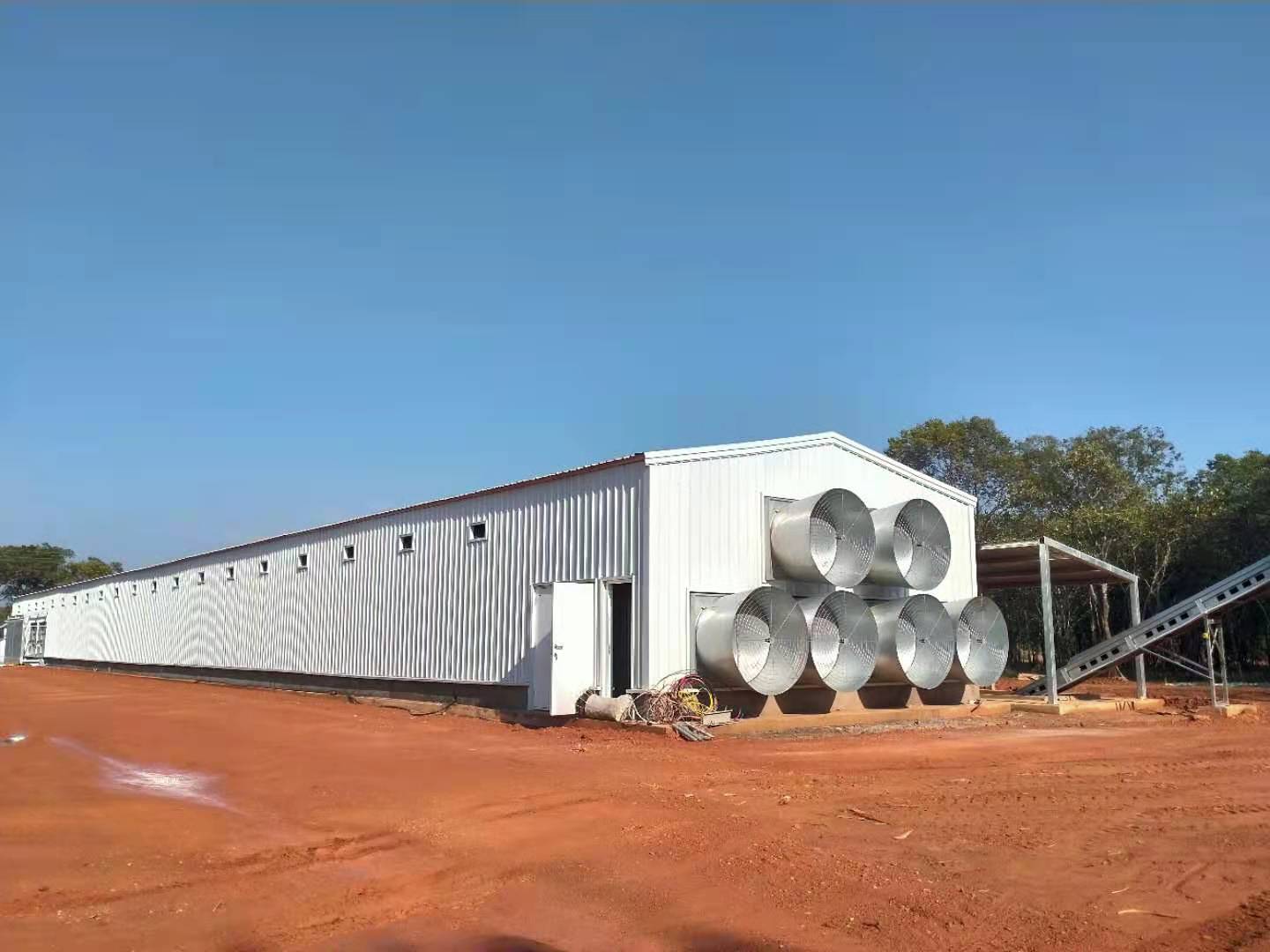

    Prefab poultry house in Zambia
    Prefabrication workshop in the Democratic Republic of the Congo
    Prefab Cowshed in Chile
