Prefabricated Outdoor Container House
036
1 set
Guangdong
Warranty:1 Year
After-sale Service:Online technical support
Project Solution Capability:3D model design, total solution for projects
Application:food shop
Place of Origin:Guangdong, China
Brand Name:HY
Use:House, Kiosk,Booth, Shop, Warehouse
Product Type:Container Houses
Design Style:Modern
appearance:Modern
After-sale Service:Online technical support
Project Solution Capability:3D model design, total solution for projects
Application:food shop
Place of Origin:Guangdong, China
Brand Name:HY
Use:House, Kiosk,Booth, Shop, Warehouse
Product Type:Container Houses
Design Style:Modern
appearance:Modern
Quantity
- Warranty:1 Year
- After-sale Service:Online technical support
- Project Solution Capability:3D model design, total solution for projects
- Application:food shop
- Place of Origin:Guangdong, China
- Brand Name:HY
- Use:House, Kiosk,Booth, Shop, Warehouse
- Product Type:Container Houses
- Design Style:Modern
- appearance:Modern
Product Description
| Bottorn | Frame structure | 2.5mm thick profiled steel | |
| Floor | MGO board,waterproof, fireproof(Option Fiber cement) | ||
| Floor finshes | 1.8mm PVC flooring (extra cost) | ||

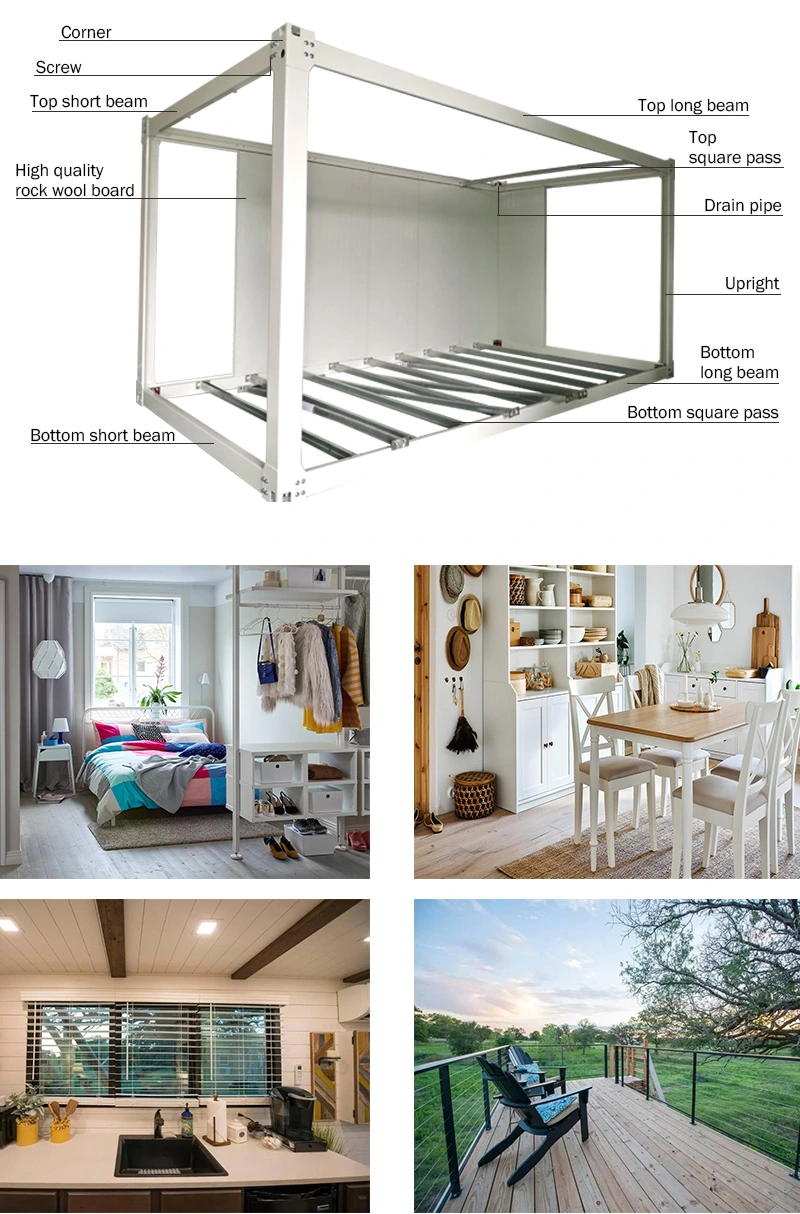

| Roof | Frarme structure | 2.5mm thick profiled steel | |
| Outside cover | 0.426mm steel shcet | ||
| Insulation | glass wool | ||
| Ceiling | 0.25mm steel sheet bottom tile | ||
| Use | Carport, Hotel,House, Kiosk Booth Office, Sentry Box,GuardHouse,Shop.Toilet, Villa Warehouse,IWorkshop,Plant | ||
| Coener post | 4.5 cold rolled steel profile, galvanization, welded(160mm*160mm) | ||
| Wall panel | Sandwich panel with 50mm rock wool | ||
| Window | Aluminum alloy windows with dimension 925mm*1200mm(3mm single glass) | ||
| Door | Steel door with dimension 925mm*2035mm | ||
| Electricity | Light, Switch, Socket, distribution box, breaker and wire | ||
| Painting | Automatic galvanizing and baking paint spray molding | ||
| Exterior size | 6000(L)*3000(W)*2850(H) or Customizable | ||
FAQ
1. How to heat the container?
The top and surroundings of the container are made of heat-insulating color tile panels, which have good heat insulation can.
2. Will water enter the product outdoors?
The top of the container house has a water guiding design, and there is basically no water accumulation on the top. The color tile panels on the side walls The contact position with the steel frame needs to be waterproofed with glass glue
3. How long can the product be used and how long is its service life?
Container products generally have a service life of about 15-20 years, and the local climate environment is not At the same time, it will affect the service life
4. How about the seismic resistance of the product?
The seismic capacity of container products is generally 7-8 earthquake resistance

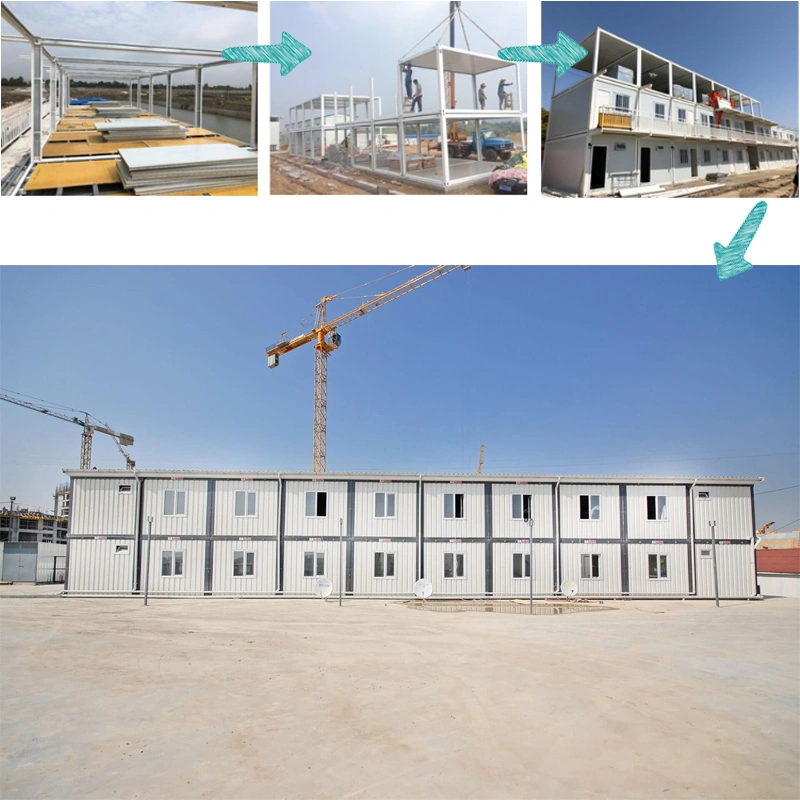

5. Do container houses need crane installation?
It is not necessary to use a crane for installation, depending on the type, if it is an unfolding or folding type Containers generally use cranes, and others can be solved by hoisting
6. What are the key points of the rainproof location?
Generally, pay attention to the joints where the color tile plate and the steel structure are in contact with the appearance of rain and waterproof. Position, the folding hinge position should be paid attention to, and the expanded corner position should be paid attention to the expansion type
7. How about the wind resistance of the product?
Wind resistance of container products: wind speed ≤120km/h
8. What is the general construction period of container products?
The general production cycle of container products is 15-20 days
9. Will the container product window be equipped with an anti-theft net?
Conventional products are not equipped with window anti-theft nets, and anti-theft net accessories can be added

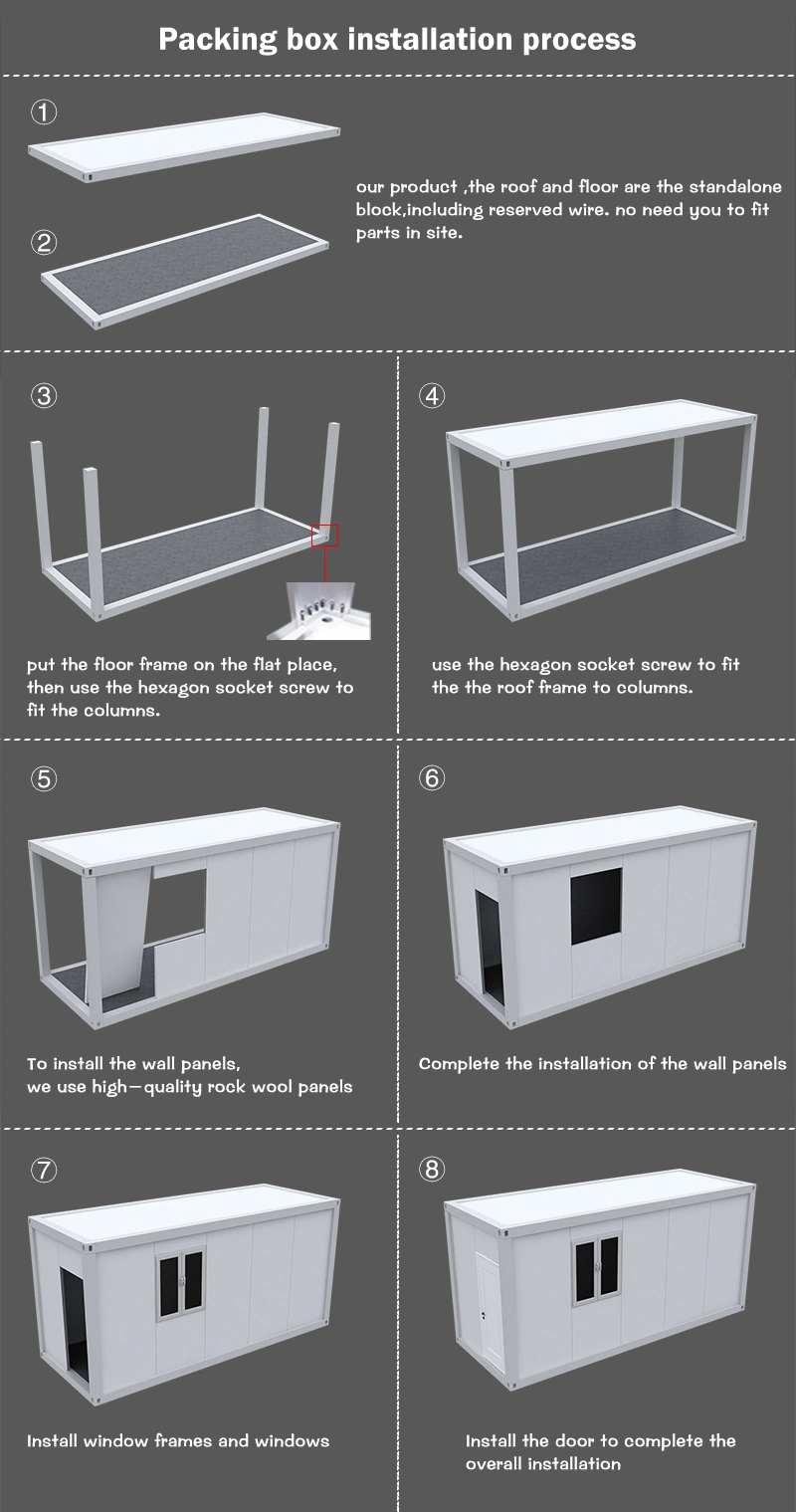

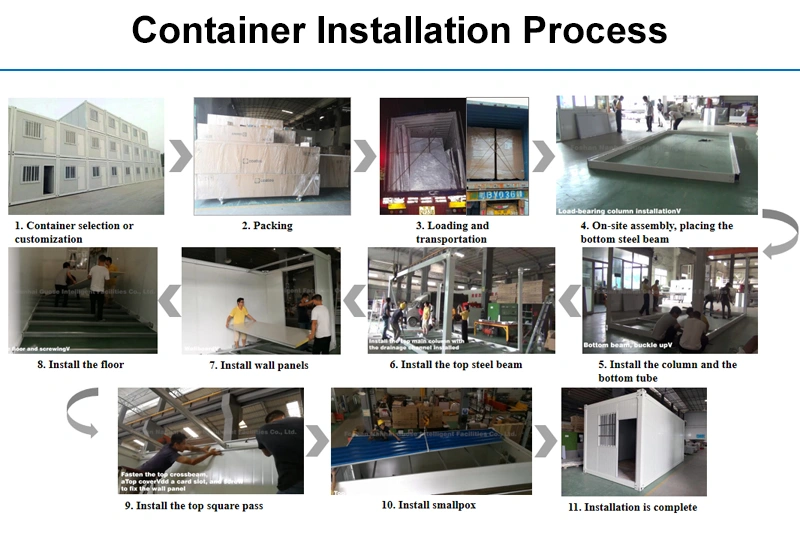

10. Is there an installation manual for this product?
There are installation instructions, and we will also provide short installation videos for customers to learn about installation
