Multi Storey Light Frame Structure Steel Design Prefabricated Workshop Office Building

Structure Steel Design Prefabricated Workshop
Multi Storey Light Frame Structure Steel Design Prefabricated Workshop Office Building
1 ton
7000ton / Month
  • Type: Lightweight frame design, multi-storey structure steel
    Warranty: 1 year
    After-sales service: online technical support, on-site installation, on-site training, on-site inspection, free spare parts
    Project solving ability: structure steel graphic design, 3D model design, structure steel overall project solution, cross-category integration
    Application: structure steel workshop, structure steel workshop; structure steel warehouse; structure steel garage; structure steel hangar; structure steel poultry house, etc.
    Place of Origin: Guangdong, China
    Model: A-083
    Design style: modern
    Main structure: steel column steel beam
    Walls and Roofs: Sandwich Panels; Color Steel Sheetas
    Secondary structure: purlins; bracing; knee pads, etc.
    Grade: Steel Q345B (S355JR; ASTM 50Ksi); Q235B (S235JR)
    Cladding: PU/rock wool/glass fiber/EPS
    Column beam connection: high strength bolts
    Accessories: sunroof belt; ventilator; downspout; gutters, etc.
    Drawing Design: AutoCAD PKPM 3D3S
  • product description

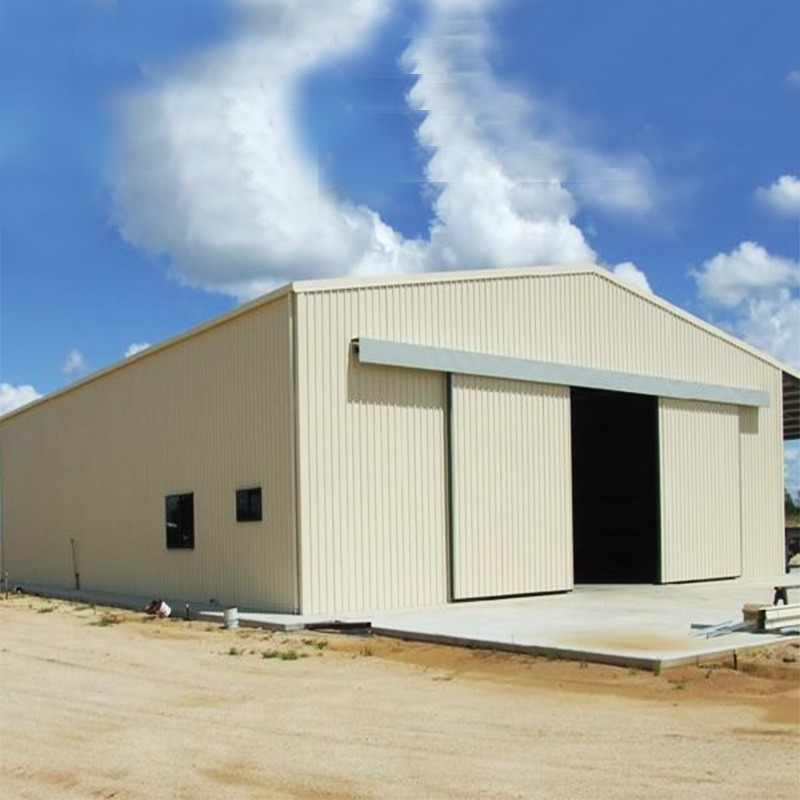

    Prefabricated steel structure multi-storey factory building with offices
    Steel structure buildings are widely used in the production field. They are made of traditional concrete and brick buildings, and
    have the characteristics of fast installation time, environmental protection, and recyclability.
    The main types include workshops, warehouses, garages, hangars, multi-storey buildings, chicken coops, cowsheds, sheepsheds, container houses, etc.

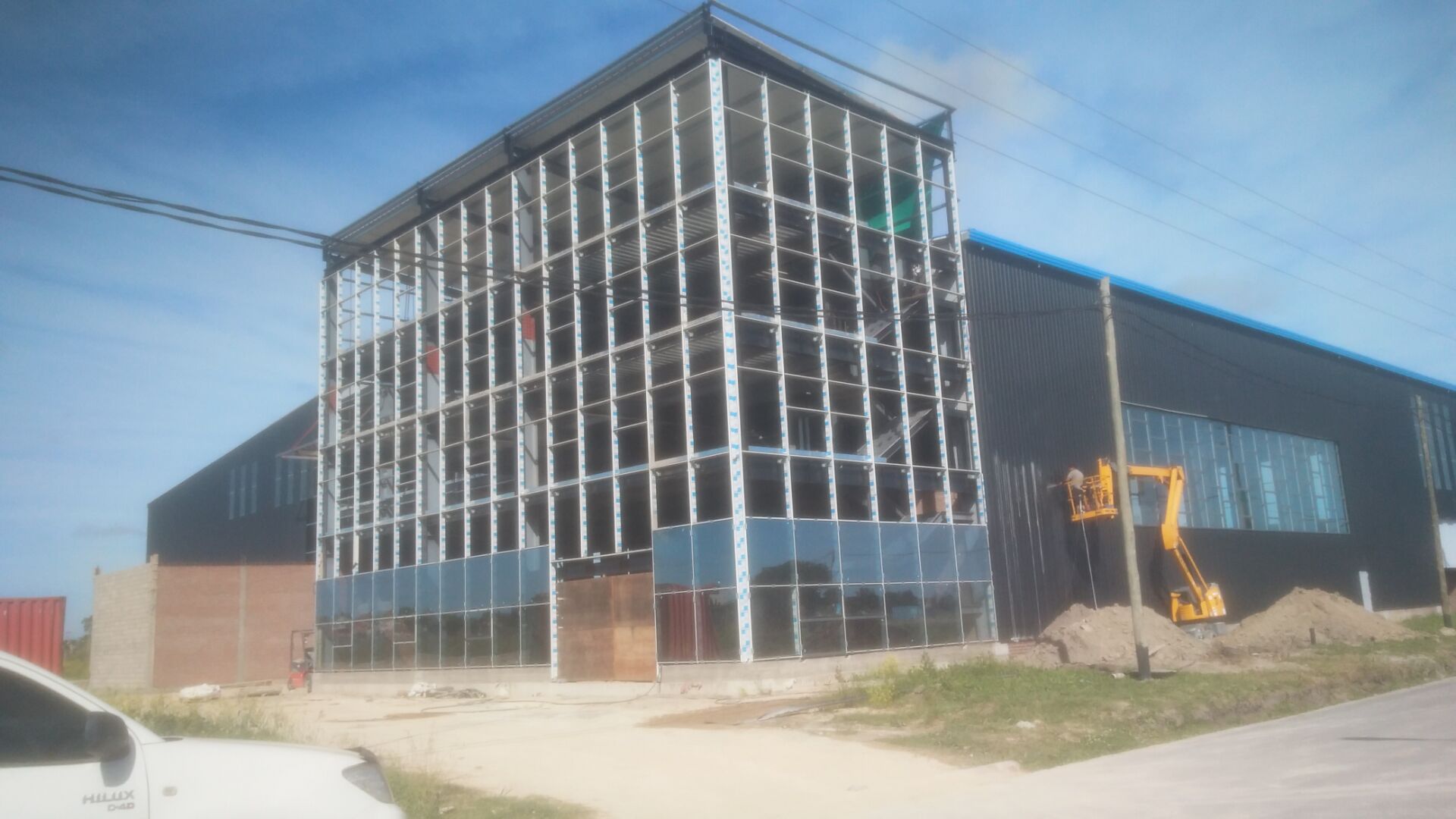

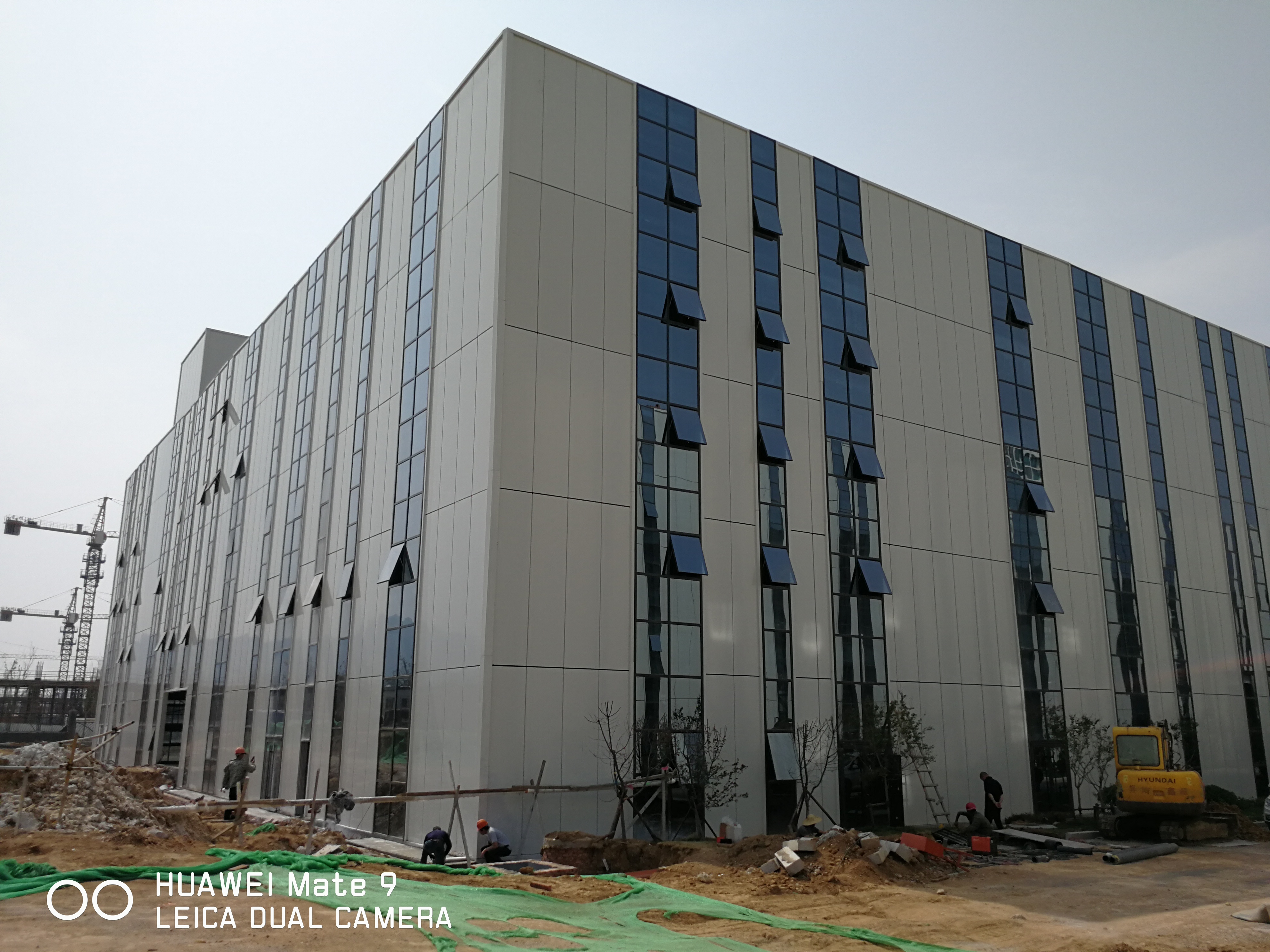

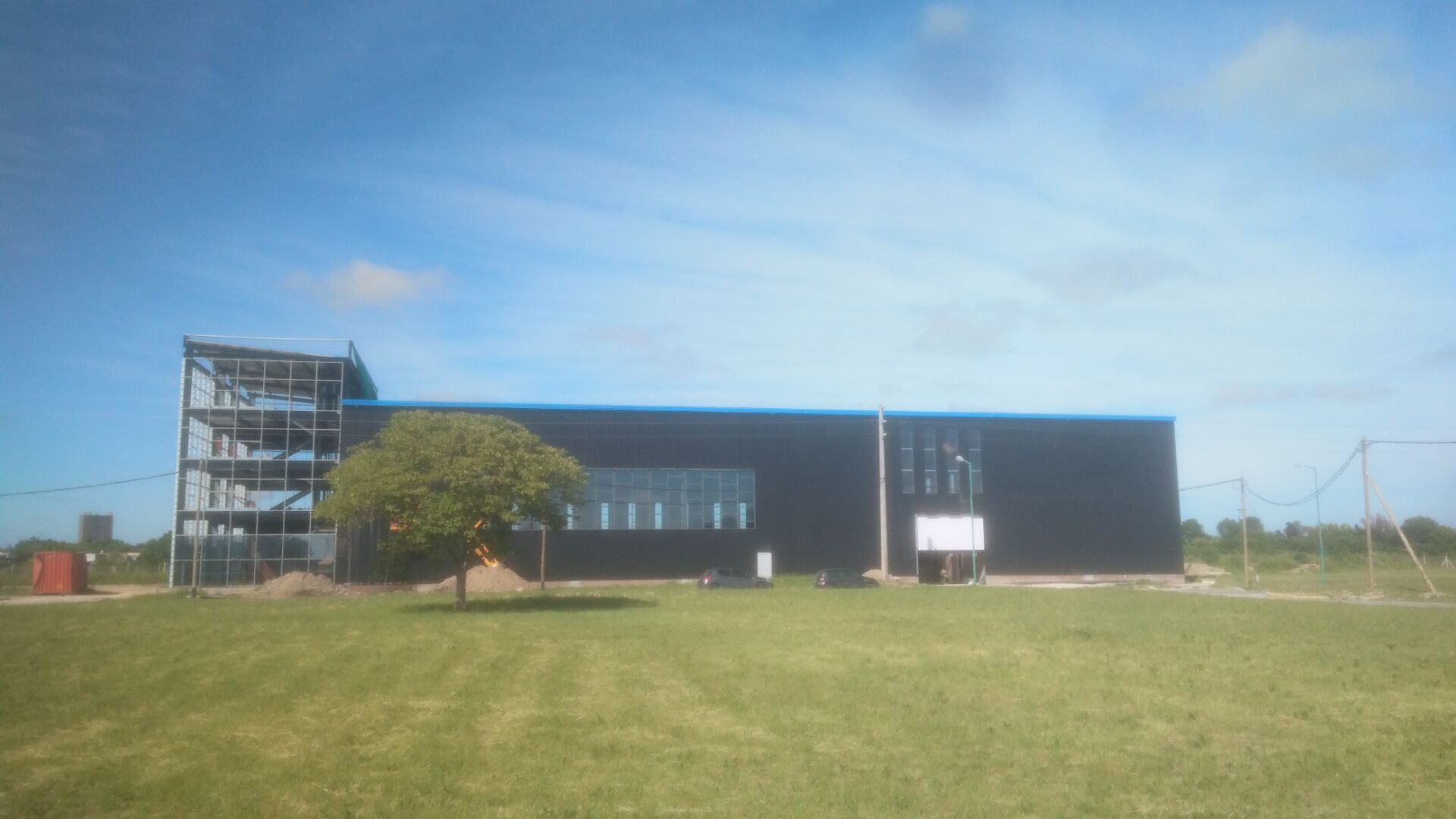

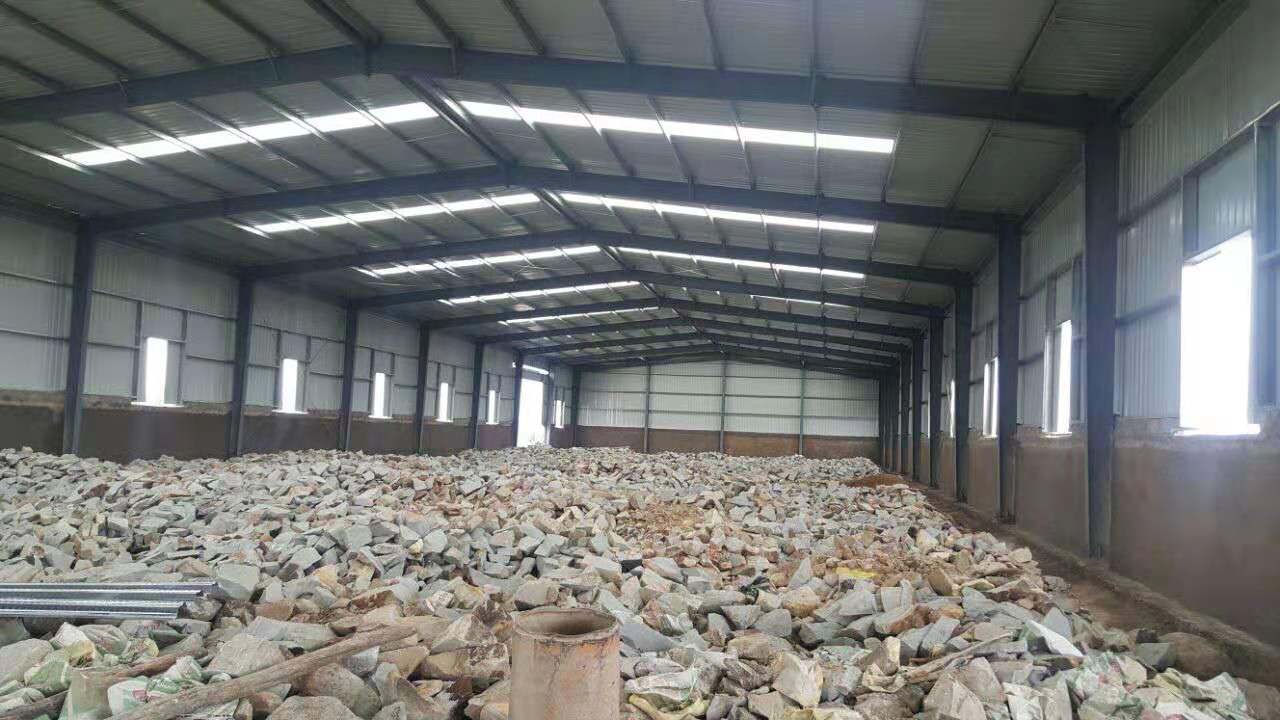

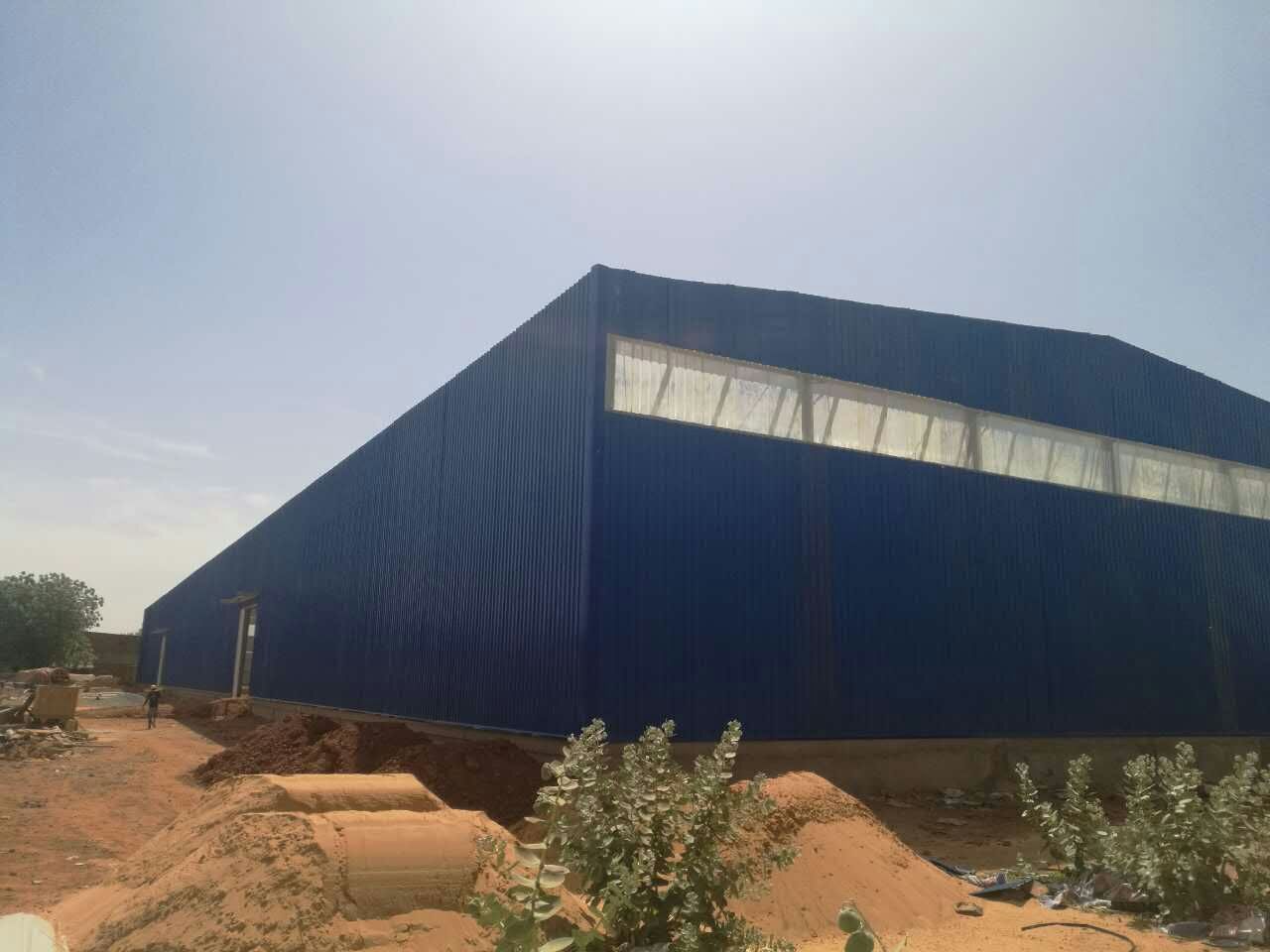

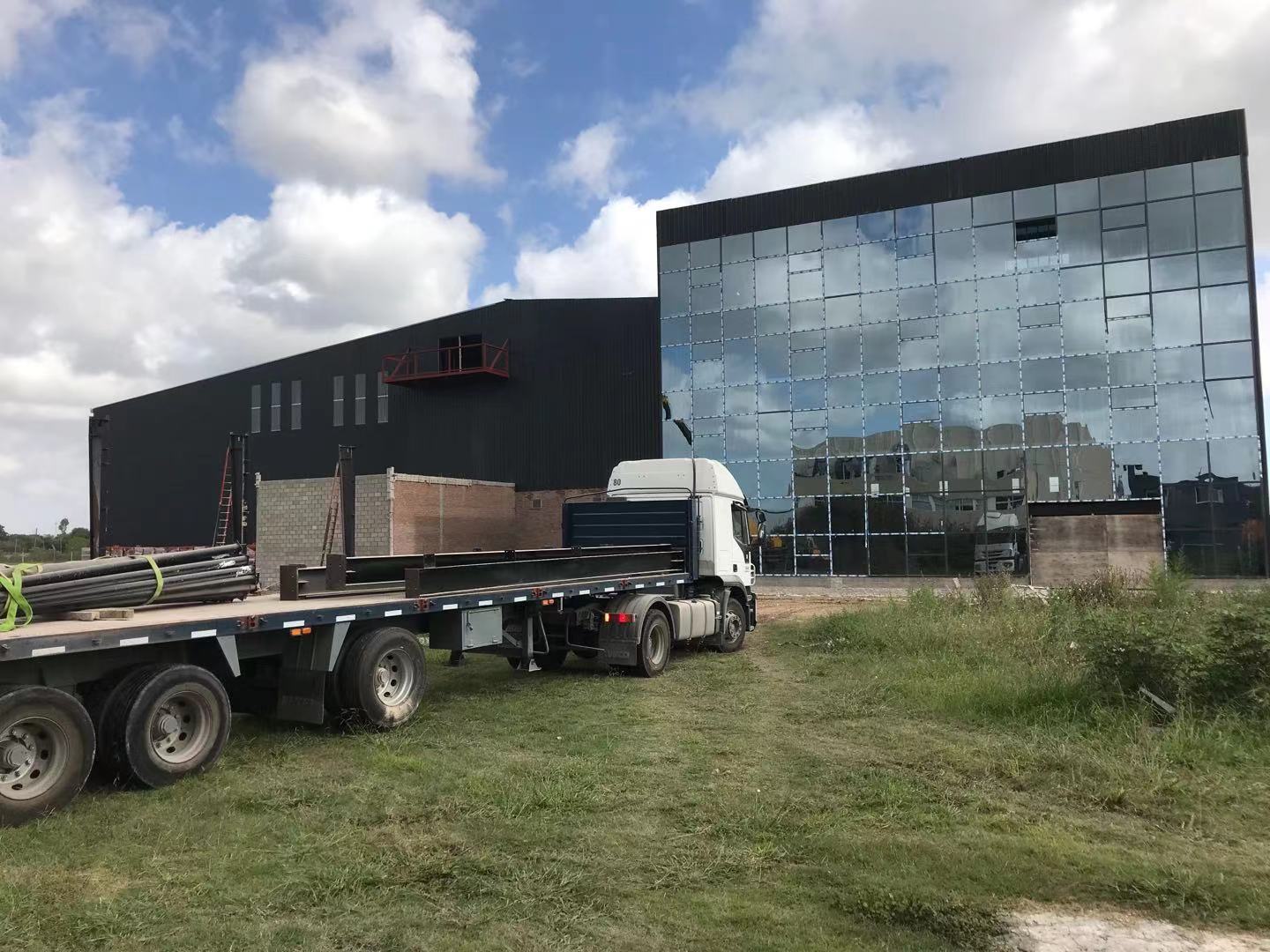

    Project cases

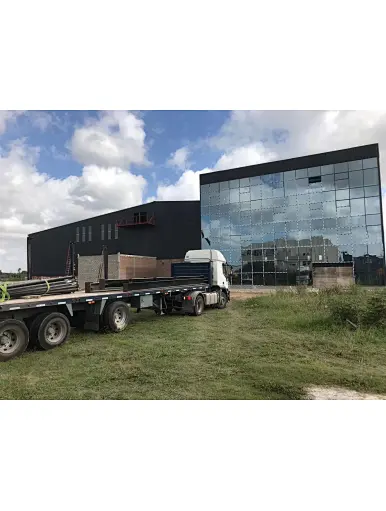

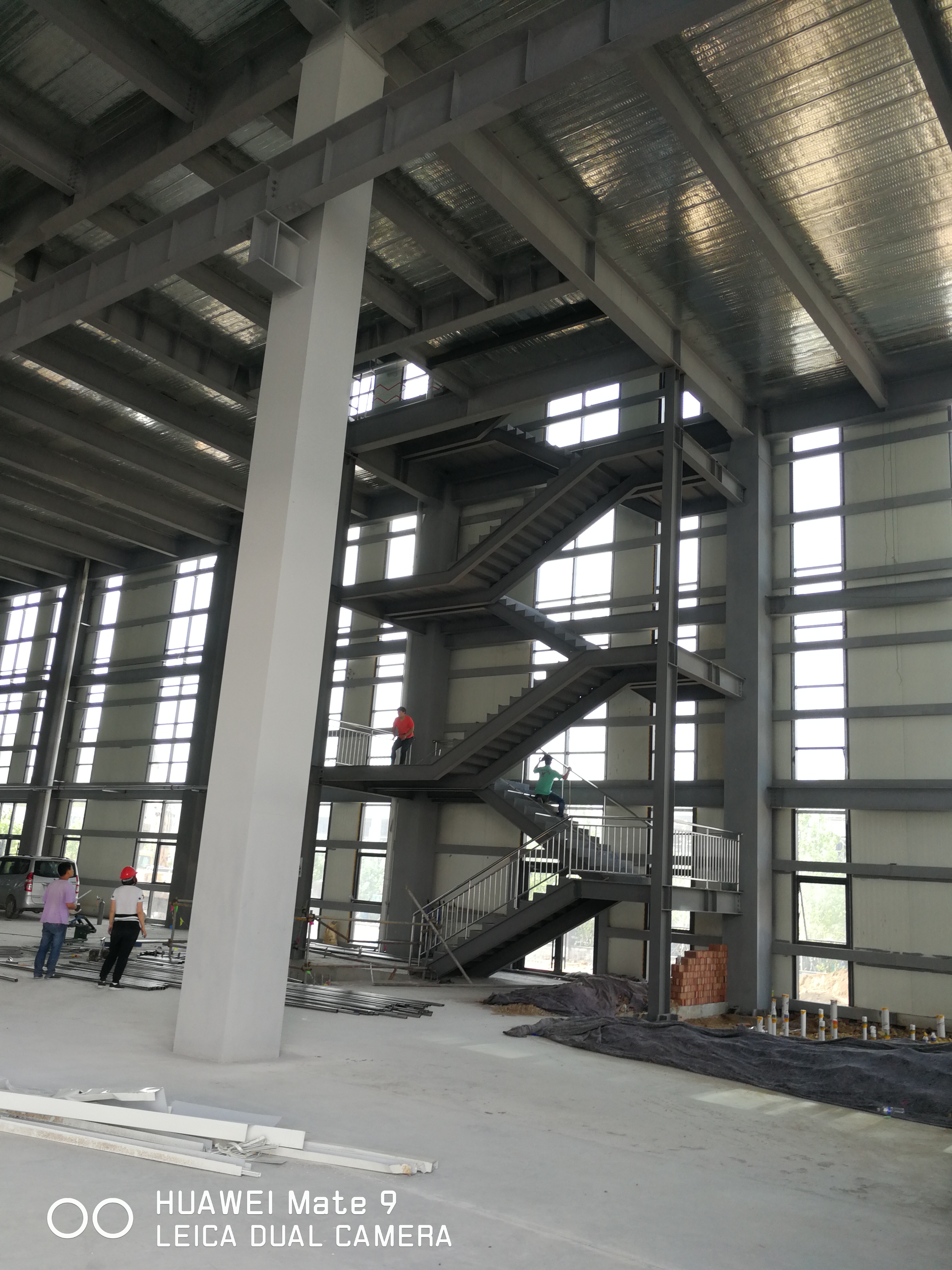

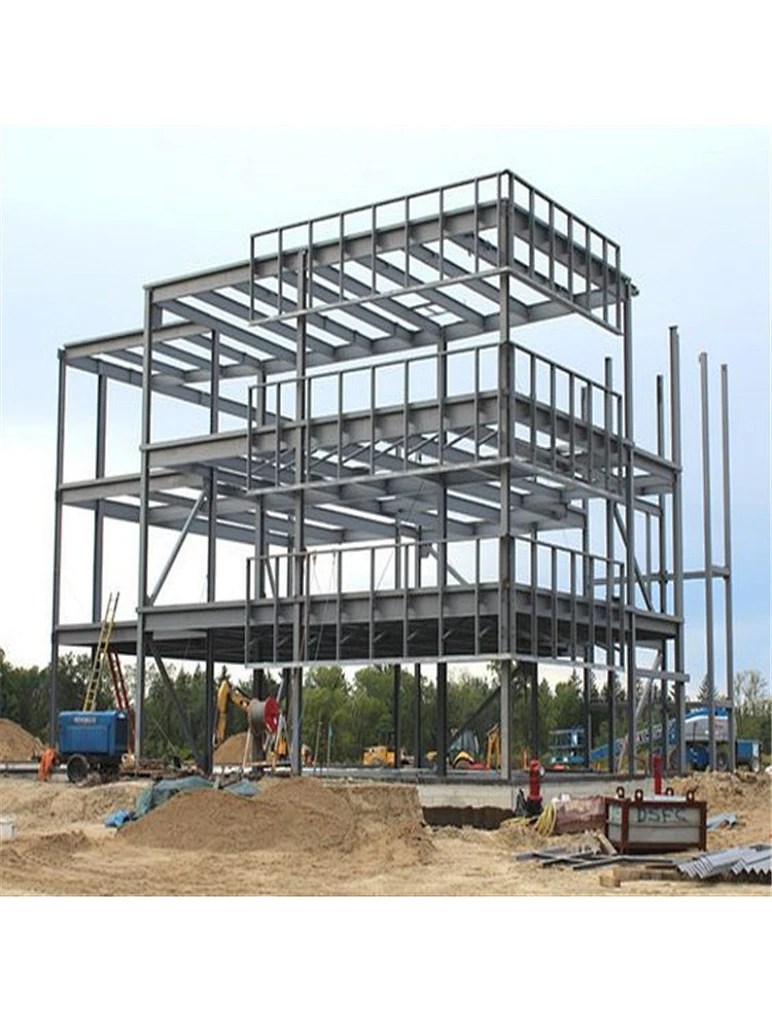

    Prefab multi-storey workshop steel structure design stairs with steel structure office

    detailed image

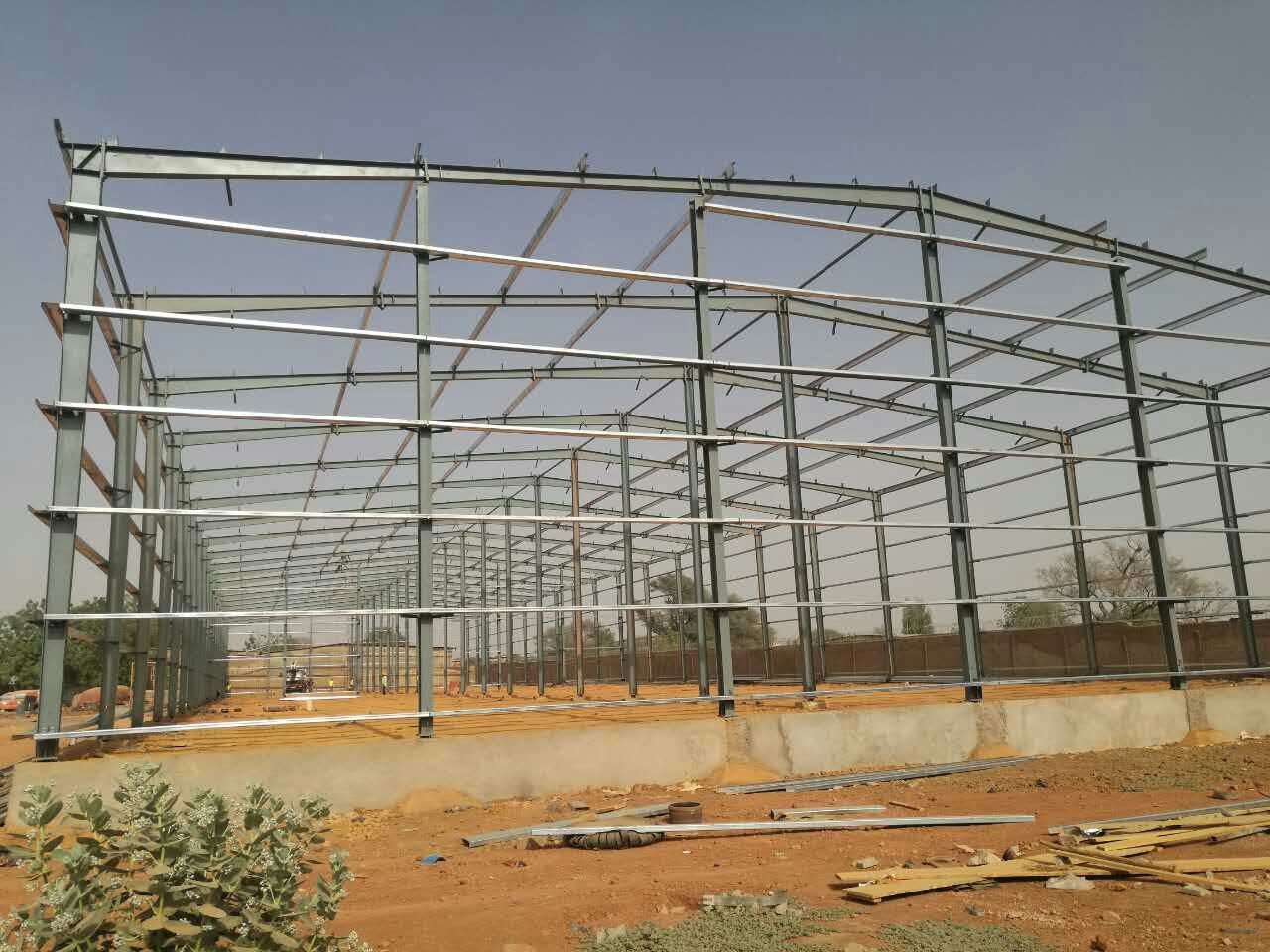

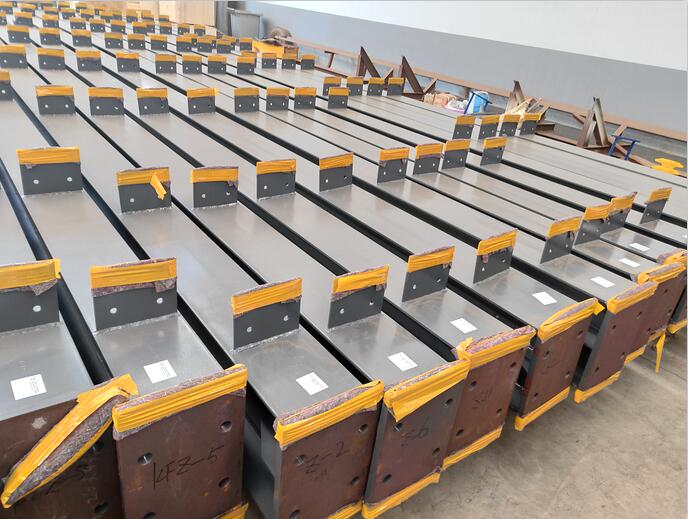

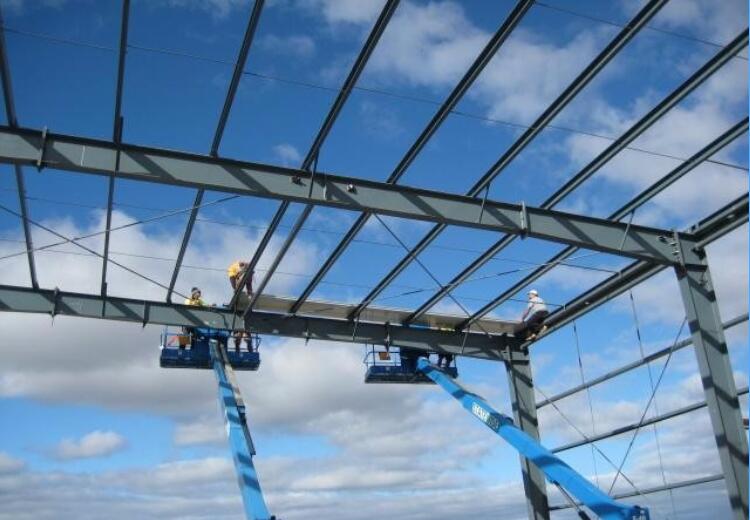

    The main steel structure of the steel structure building adopts steel H columns and steel H beams, which are connected with high-strength bolts. Sandwich or corrugated steel sheets are commonly used as cladding systems connected to the main steel structure by structural steel purlins, such as Z- and C-purlins. Some steel mills use sunlight panels to let in light, and also use ventilators to change the fresh air in the steel mills. Sandwich panel sliding doors or automatic roller shutters are options.

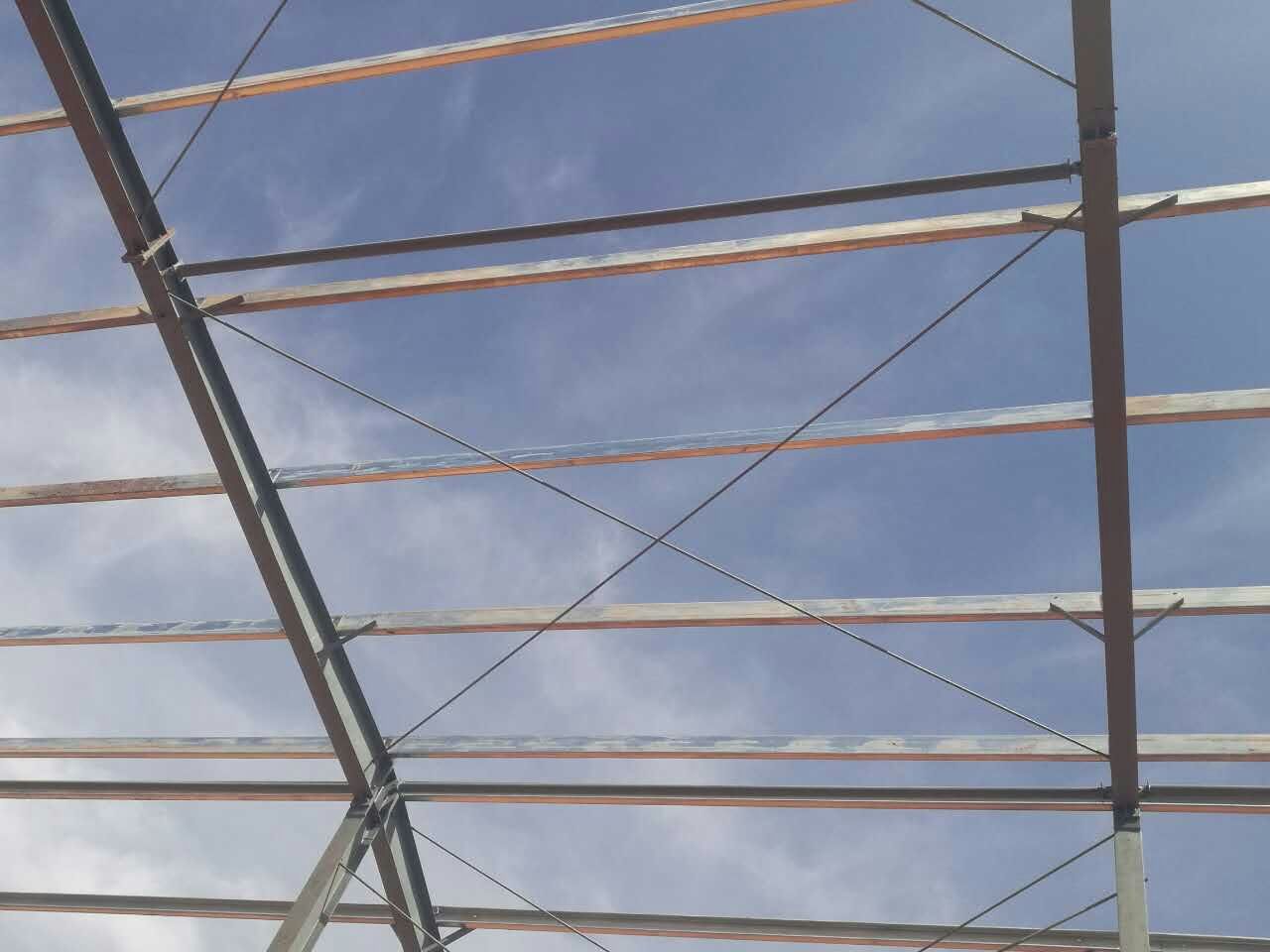

    Roof X Bracing

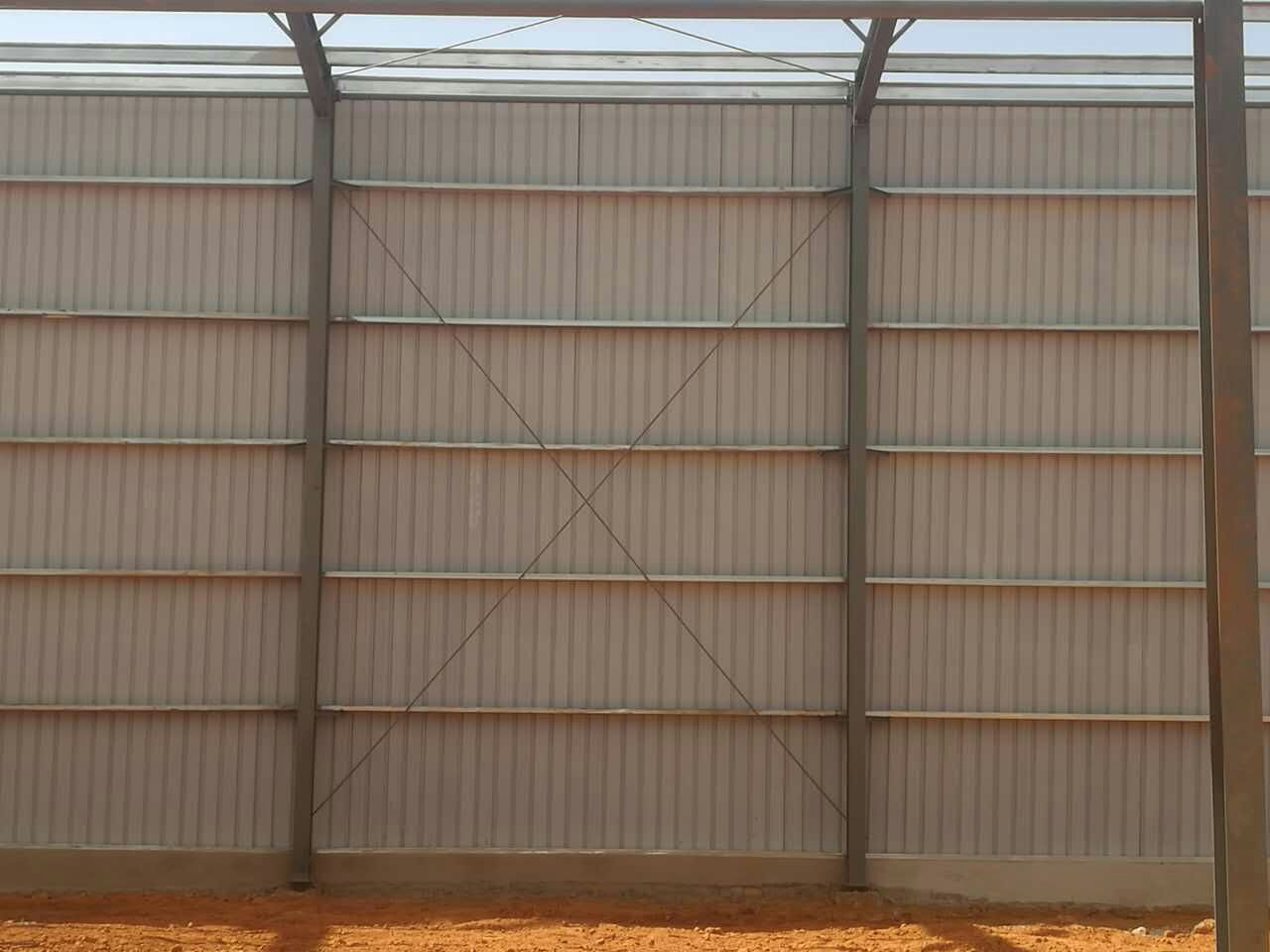

    Wall X Support

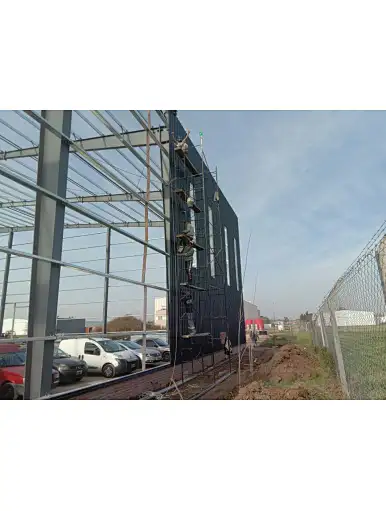

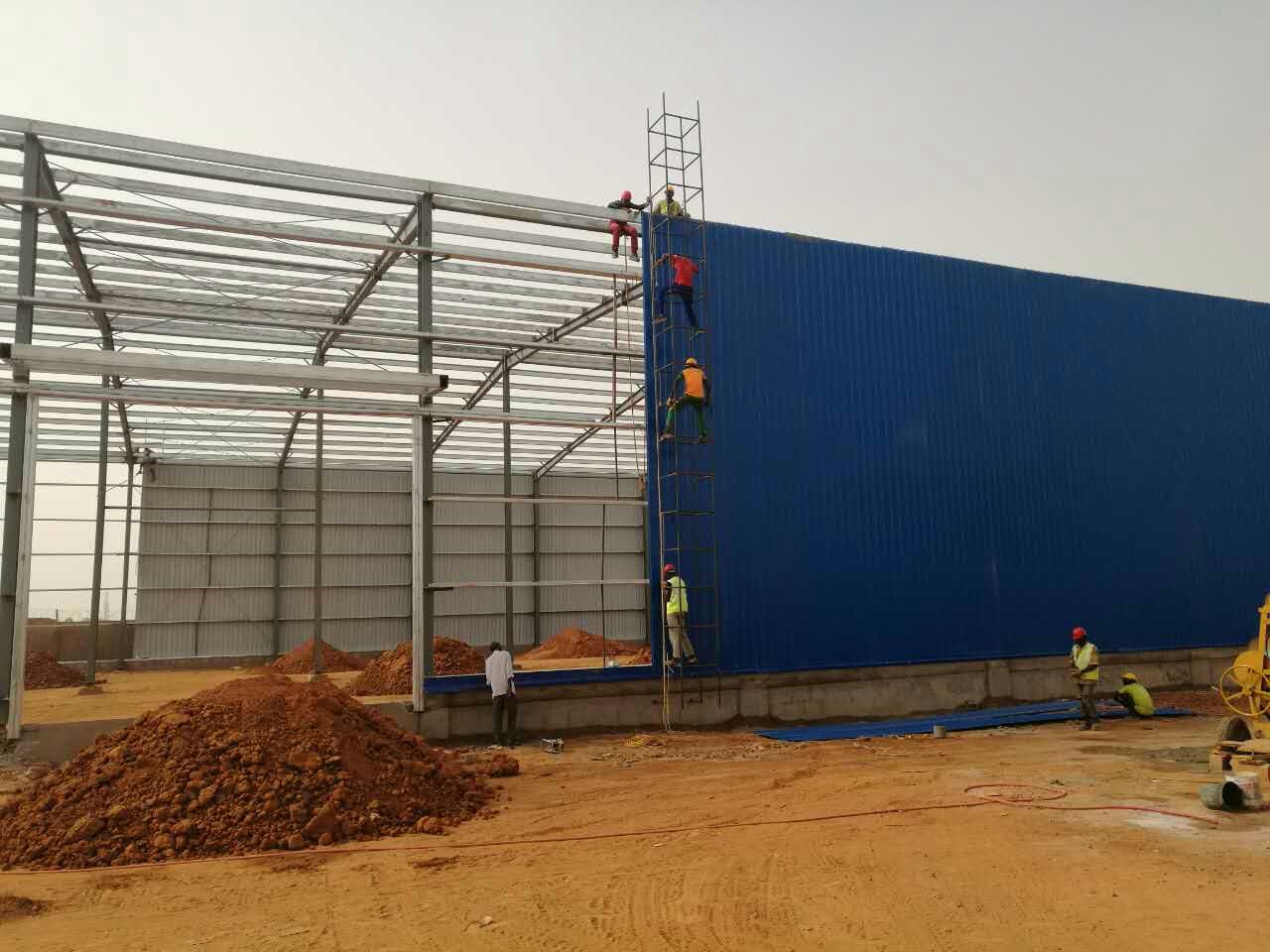

    wall panel installation

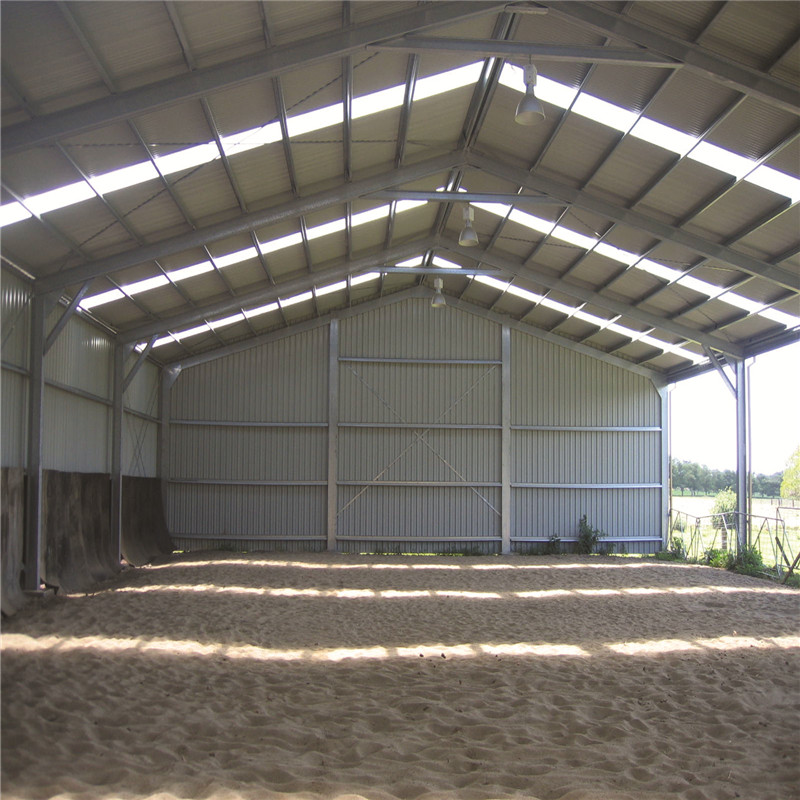

    Wall skylight belt
    Advantages of prefabricated steel buildings
    Reduce construction time
    Buildings are usually delivered within a few weeks of drawing approval. Foundation and anchor bolts
    are poured parallel to the finished product, ready for on-site anchoring. The use of PEB will reduce the total construction time of the project by at least 50%.
    This also allows for faster occupancy and earlier revenue realization.
    lower cost
    Significant savings in design, manufacturing and on-site installation costs can be achieved thanks to the systems approach. Secondary elements and cladding are nested together, reducing transportation costs.
    Expanded flexibility
    The length of the building can easily be extended by adding additional brackets. Additionally, the width and height can be expanded by pre-engineering future expansions.

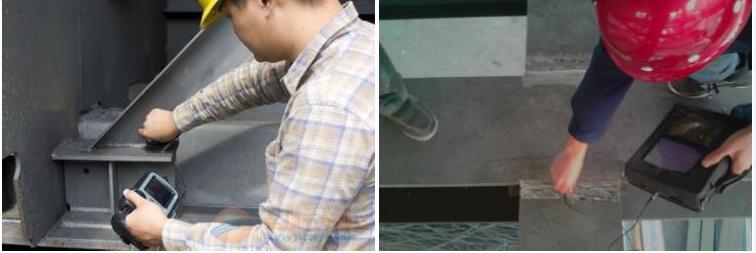

    Quality Control
    Quality is assured as the buildings are manufactured entirely in the factory under controlled conditions.
    product description

    Prefab steel building is a modern technique where the complete design is done at the factory and the building components are brought to the site and then fixed/connected on site, all bolted without any welding!
    An efficiently designed prefab building can be up to 30% lighter than a traditional steel building. Lower weight means less steel and potential price savings for structural framing.
    product name
    Prefabricated Steel Structure Building
    Main Frame
    H steel or square tube
    secondary structure

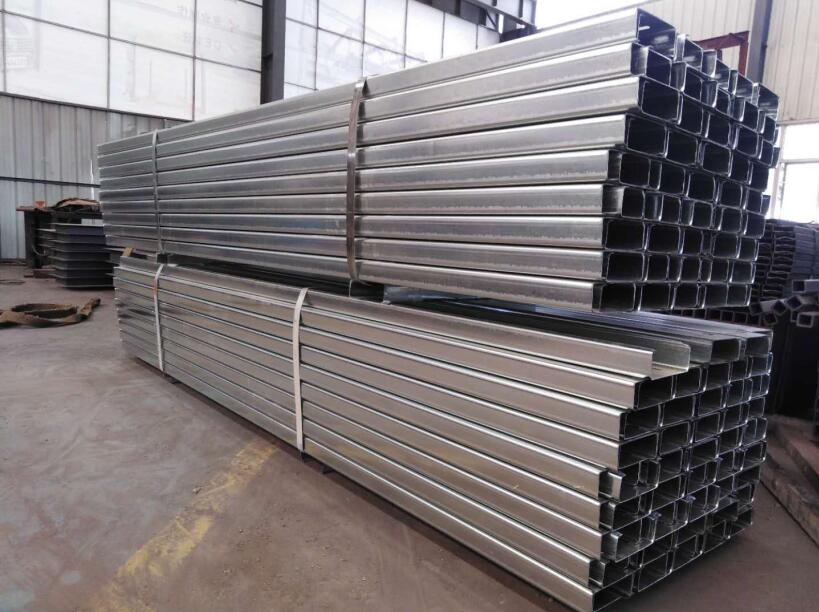

    C/Z purlins, tie rods, X braces, etc.
    Roof and Siding
    Color steel plate
    Insulation sandwich panel
    Aluminum window
    swing doors, rolling shutters,
    sliding door
    Anchor bolts, self-tapping screws, etc.

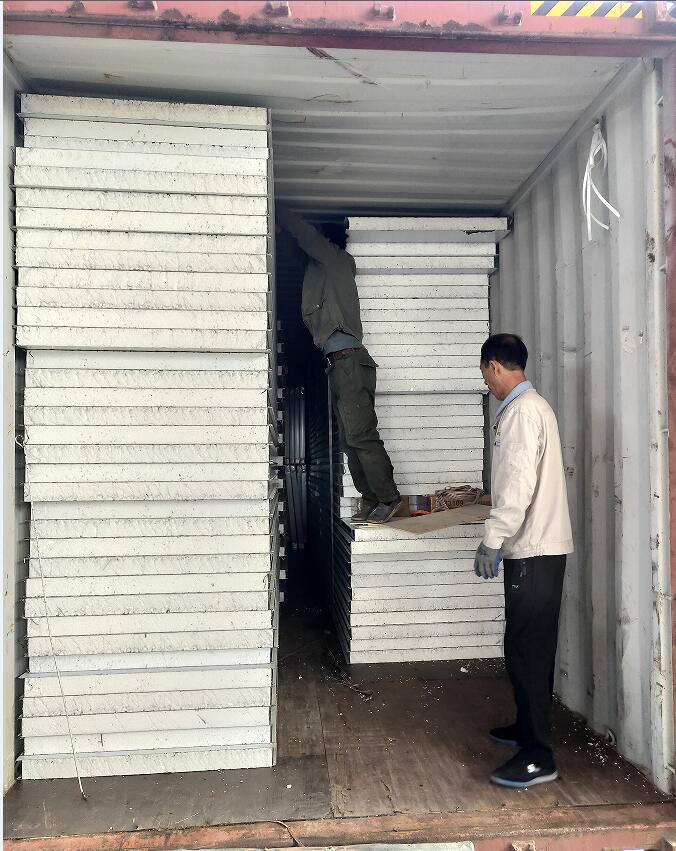

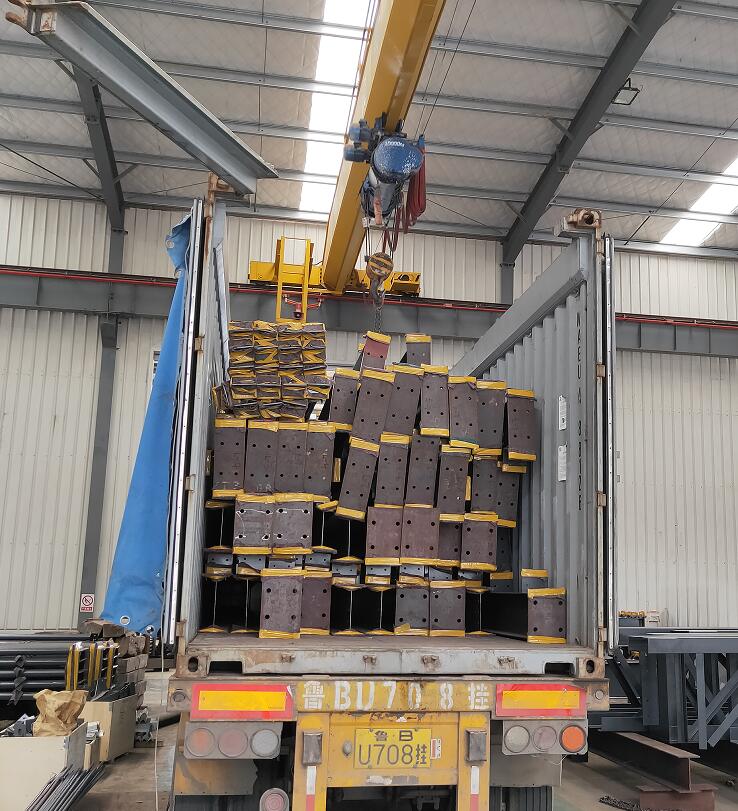

    Packaging and Shipping
    In order to protect the goods and avoid damage during transportation, the goods are well packaged; the frame steel structure
    , the edges are wrapped with cloth, the purlins are bundled, the color steel plate is wrapped with kraft paper, and the accessories and small parts are put into plywood;
    To ensure accurate quotation, please provide the following information before quotation, thank you!

    1 Location (where will it be built?) Which country? which city?

    2 Dimensions: Length*Width* Eaves Height_____mm*_____mm*_____mm

    ​​3 Wind Load (Maximum Wind Speed)_____kn/m2, _____km/h, _____m/s

    4 Snow Load (Maximum Snow Height) _____kn/m2, _____mm, Temperature Range?

    5 Earthquake resistance _____level

    6 Are brick walls required and if so, 1.2m high or 1.5m high? or others?

    7 If it is thermal insulation, it is recommended to use EPS, glass fiber wool, rock wool, and PU sandwich panels;

    if not, metal steel plates are fine. The cost of the latter will be much lower than the former.

    8 Number and size of doors _____units, _____(width)mm*_____(height)mm

    9 Number and size of windows_____units, _____(width)mm*_____(height)mm

    10 Do you need a crane? If yes, ____units, from max. Weight ____ tons; maximum.Lifting height ____ meters
