Light Frame Construction Design Prefab Steel Structure Multi-Storey Workshop Factory Building

Prefabricated steel structure multi-storey workshop
Light Frame Construction Design Prefab Steel Structure Multi-Storey Workshop Factory Building
1 ton
7000ton / Month
  • Type: prefabricated workshop building, multi-storey steel structure
    Warranty: 1 year
    After-sales service: online technical support, on-site installation, on-site training, on-site testing
    Project solving ability: graphic design, 3D model design, overall project solution
    Application: workshop, workshop; warehouse; workshop building; hangar; poultry house, etc.
    Place of Origin: Guangdong, China
    Model: A-330
    Design style: modern
    Main structure: steel column steel beam
    Walls and Roofs: Sandwich Panels; Color Steel Sheets
    Secondary structure: purlins; bracing; knee pads, etc.
    Grade: Steel Q345B (S355JR; ASTM 50Ksi); Q235B (S235JR)
    Cladding: PU/rock wool/glass fiber/EPS
    Column beam connection: high strength bolts
    Accessories: sunroof belt; ventilator; downspout; gutters, etc.


1.Introduction and application of
steel structure

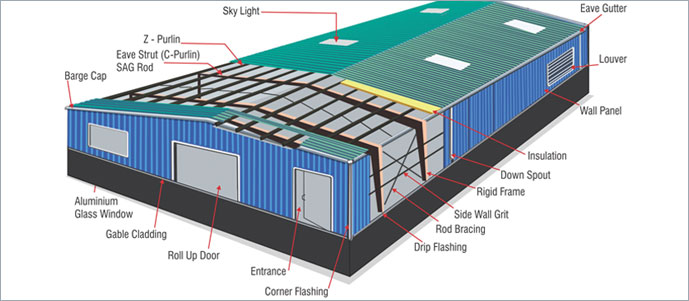

Prefabricatedsteel structure buildingis a new type of building structure system, which consists of main steel frame H-shaped columnsandH-shaped beams ,C-shaped purlins, Z-shaped purlins, supports, column supports, knee supports, etc. Corrugated steel or sandwich panels are supported by roofs and walls ,as well as other components such as doors and windows , connected by bolts, self-tapping screws, etc.
Because of its excellent characteristics such as earthquake resistance, recyclability and fast construction, it is called"environmentally friendly building"in thecentury
Prefabricatedsteel structure buildingsare widely used in workshops, warehouses, office buildings, hangars, garages ,supermarkets,retail stores, chicken sheds, prefabricated houses, etc.
2.Advantages of steel structure buildings
Prefabricated steel structure buildings are called"environmentally friendly buildings"in the 21st century , and their advantages are as follows:

1.Fast construction and convenient installation; save time and labor;
2.Long life of more than 50 years;
3.Prefabricated and custom designs;
4.Sturdy, stable, durable and beautiful;
5.Environmental protection, recyclable;
6.Earthquake resistance ;_waterproof;
7.Larger interior space;
8.Low maintenance cost;

main ingredient

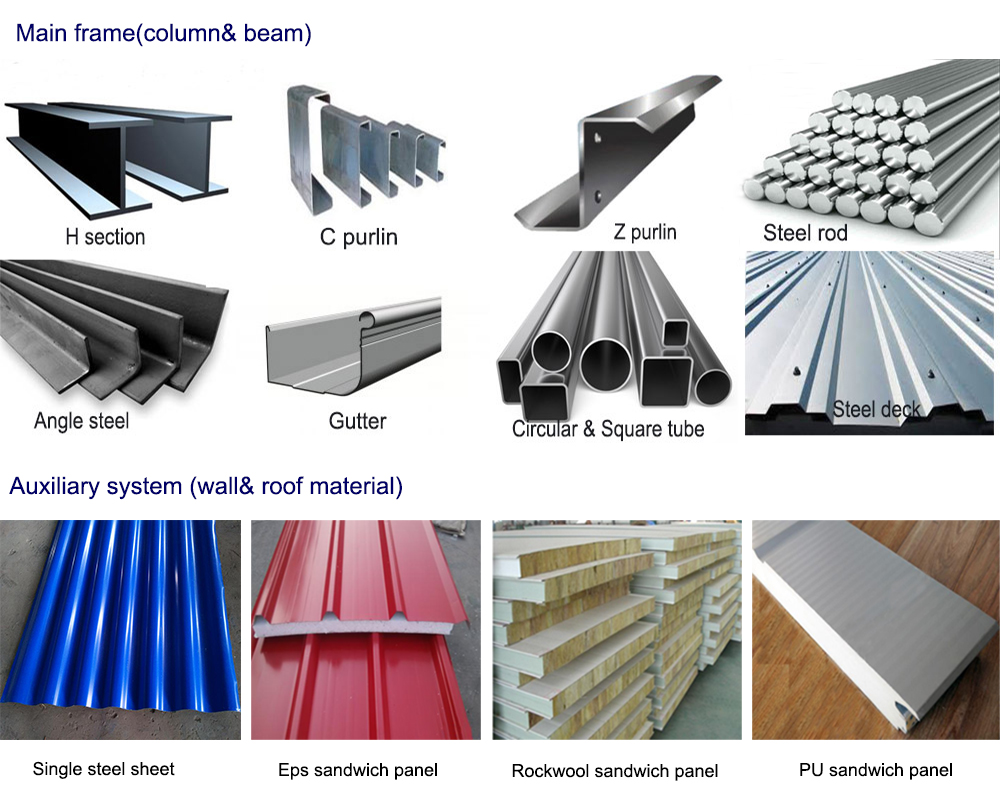

3. Main material of steel structure

1. Main structure1. Including columns and beams, made of welded H-section steel, steel grade Q345B/Q235B
2. Column-beam connection: high-strength bolts
3. Column and foundation connection: pre-embedded anchor bolts
2. Secondary structure1. Roof purlins and wall purlins: C-shaped or Z-shaped steel
2. Knee pads: angle steel
3. Support: Steel rod
4. Tie rod: steel pipe
5. Wall and roof: corrugated steel plate or sandwich panel;

Connect purlins with self-tapping screws

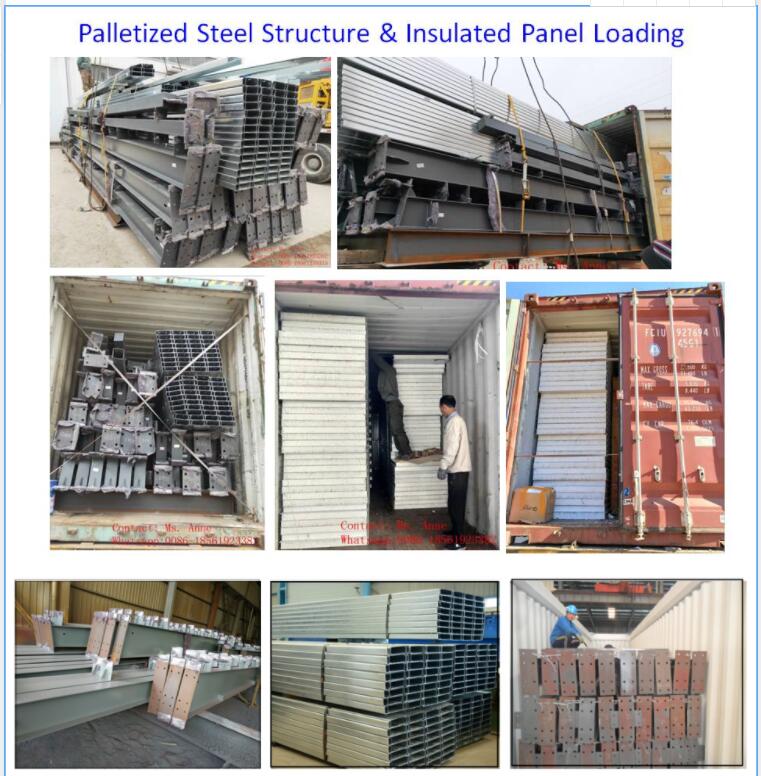

packing and loading

Customer visit

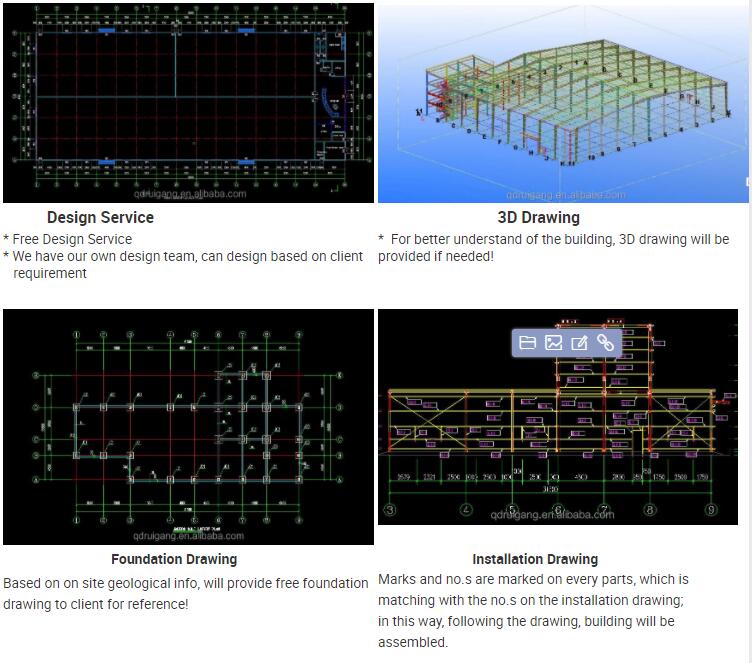

design service

Why choose us
6.Why choose us

1. More than 15 years experience in steel structure production;
2. The annual production capacity reaches 30,000 tons;
3.The product has passed ISO9001 certification; SGS;BV, etc.;
4. Professional technical team, more than 20 senior engineers;
5. The products are exported to the Philippines, Malaysia, Australia, the United States, Chile, the United Arab Emirates, Saudi Arabia, Russia, Niger and other countries.

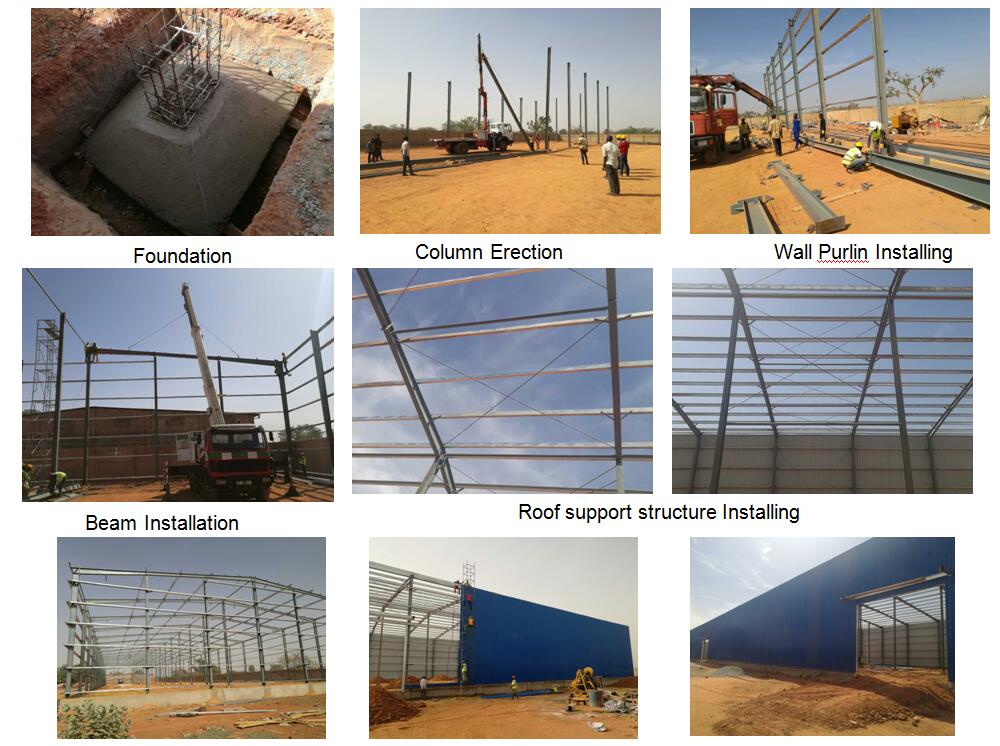

Niger Project Showcase

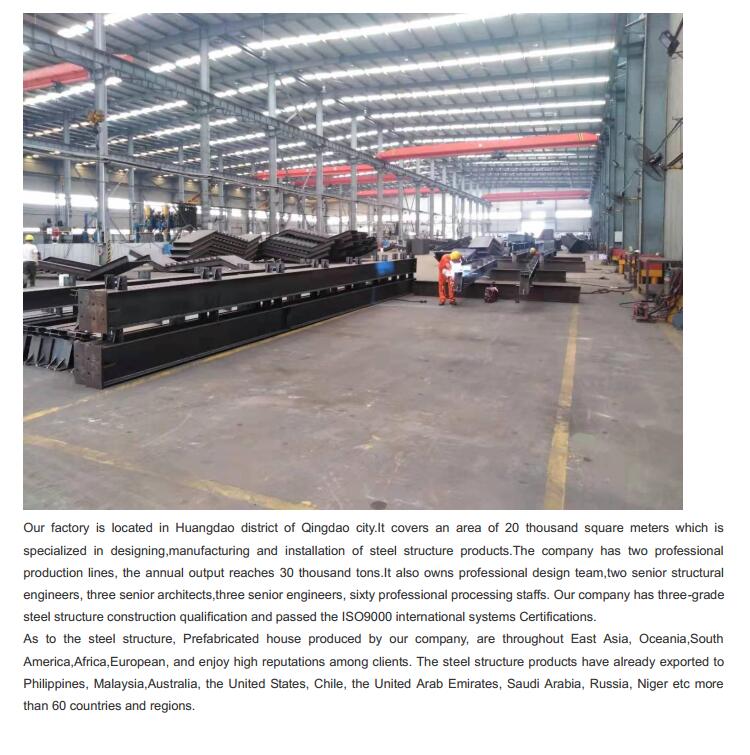

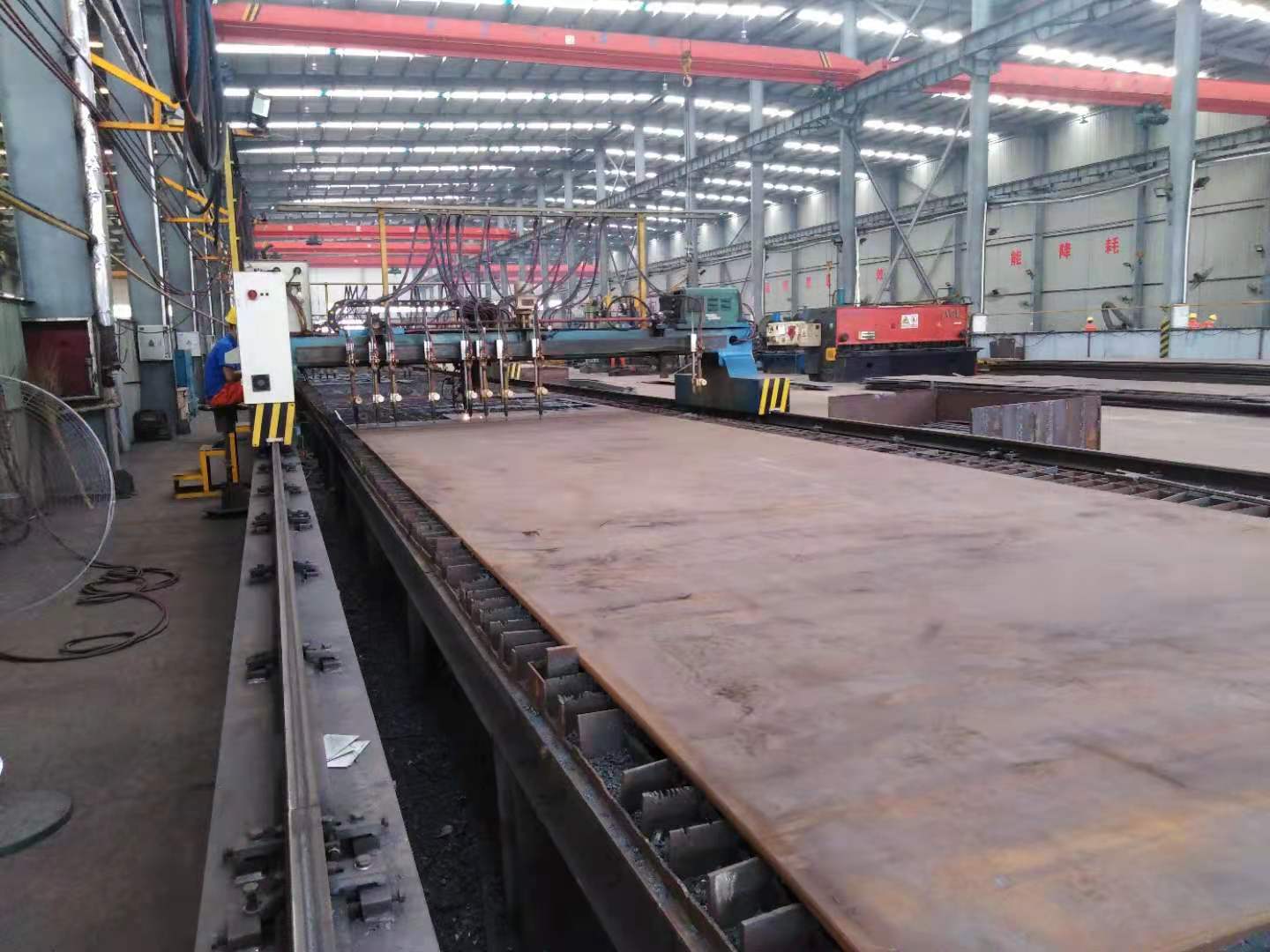

Company Profile

Quotation question
How to get a quote
The first option : available drawings
According to your drawings, we can provide you with an accurate quotation; we will also give our professional advice based on your drawings;
The second option : Drawing is not available
We have a professional design team, if you can provide the following information, we will provide you with professional drawings:
1. Location: ______ Country, ______ Region
2. Application: workshop; warehouse;poultry shed, etc.
3. Dimensions (length * width * eaves height): _______mm*_______mm*______mm
4. Wind load (maximum): ______km/h; or __m/s
5. Snow load (maximum): ______kn/m2
6. Earthquake magnitude: ______;
7. Insulation material: corrugated steel plate or sandwich panel (PU/EPS/rock wool/glass fiber)
8. Brick wall: availability and height
9. Doors and windows: size, quantity, installation location
10. Crane: If you need to install a crane, please inform the maximum lifting weight; the maximum lifting height
