Economical prefabricated light steel structure aeroplane airplane hangar

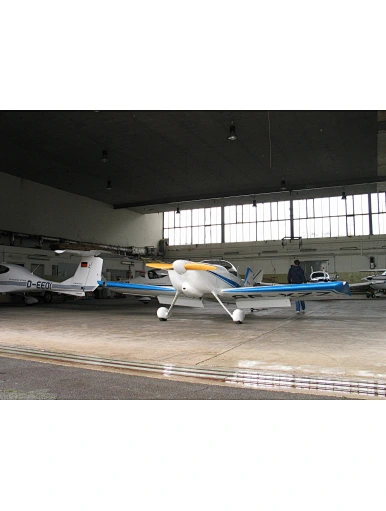

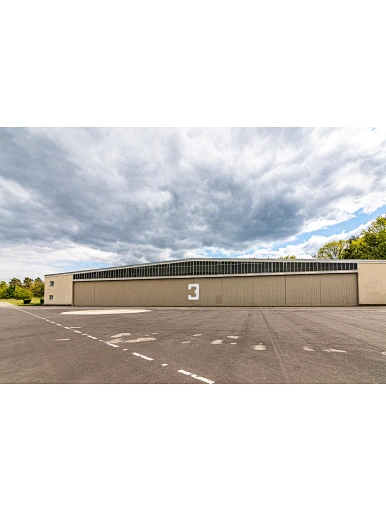

Steel structure aircraft hangar
Economical prefabricated light steel structure aeroplane airplane hangar
  • Type: Steel Structure
  • Warranty: 1 year
  • After-sales service: online technical support, on-site installation, on-site training, on-site inspection, free spare parts
  • Project solving ability: graphic design, 3D model design, overall project solution, cross-category integration
  • Application: Other
  • Place of Origin: Guangdong, China
  • Brand name: HY
  • Model: Q235 Q355
  • Design style: modern
  • Name: Steel structure workshop of steel structure warehouse
  • Size: customer request
  • Material: Q235/Q235B/Q345/Q345B
  • Roof and wall panels: fiberglass, rock wool, pu, eps
  • Door: sliding door, rolling door
  • Frame: Q345, Q345 beam and column
  • Window: PVC window
  • High quality: steel frame workshop
  • Purlin: section steel
  • Product Details

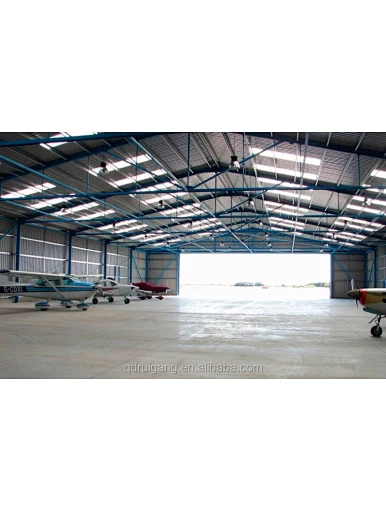

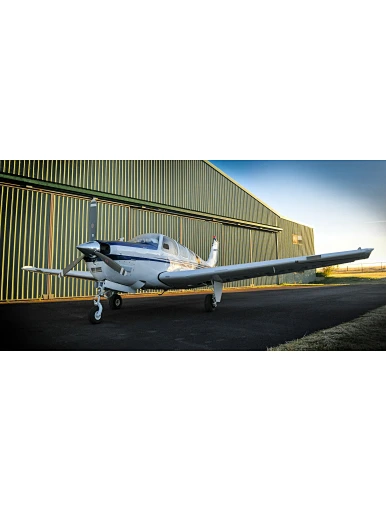

    Features of steel structure hangar
    The layout and height of the hangar have special requirements, which directly affect the structure of the hangar. Due to the large size of the hangar, the weight of the structure (mainly the roof system) accounts for a large proportion of the total load. If the self-weight of the structure can be reduced, obvious economic effects can be achieved. The steel structure has the advantages of high strength, light weight, small component section, good weldability, and relatively simple manufacturing process.
    Welcome to HY Steel Structure

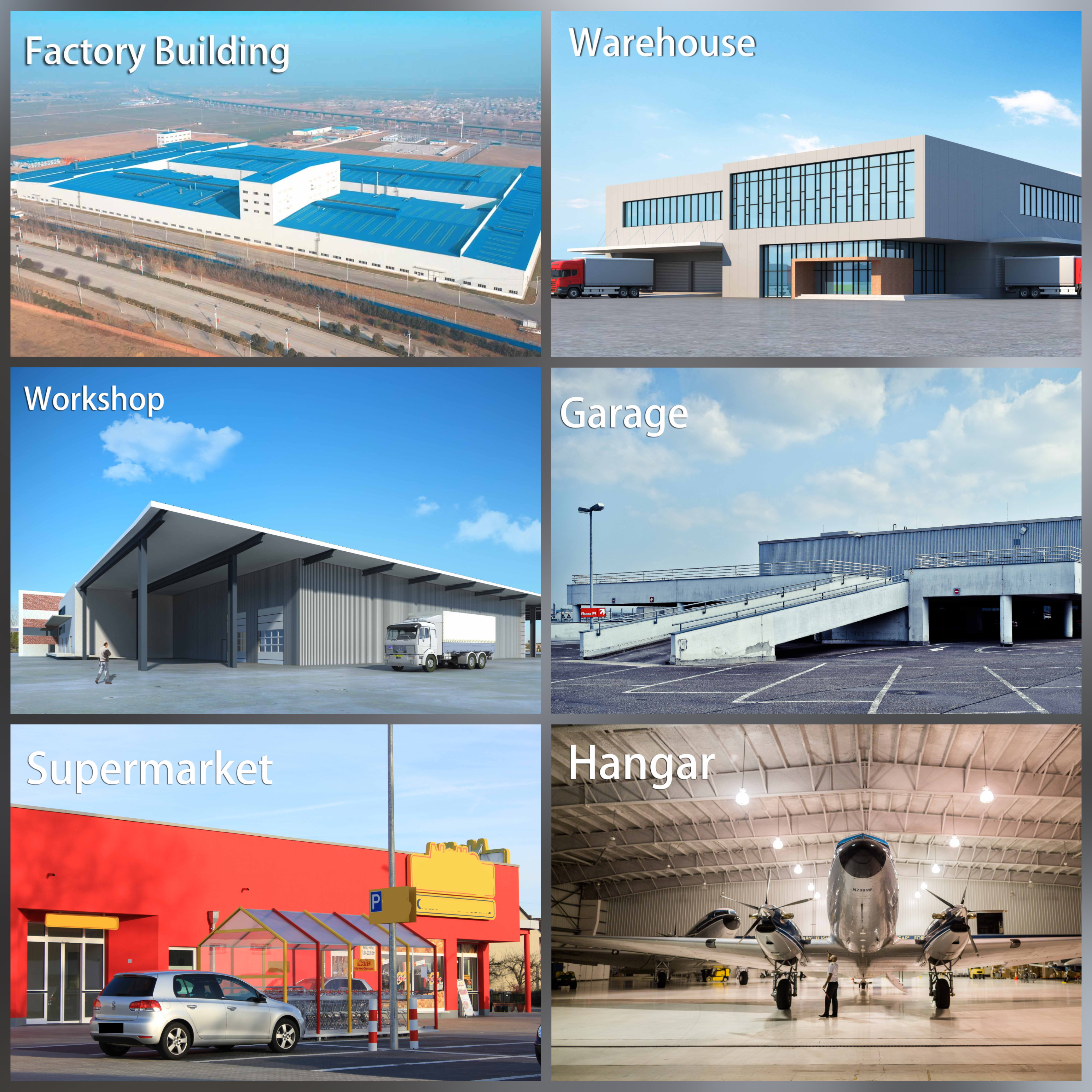

    * Design, manufacture and installation of steel structure workshop/warehouse/hangar/greenhouse/poultry farm/livestock farm

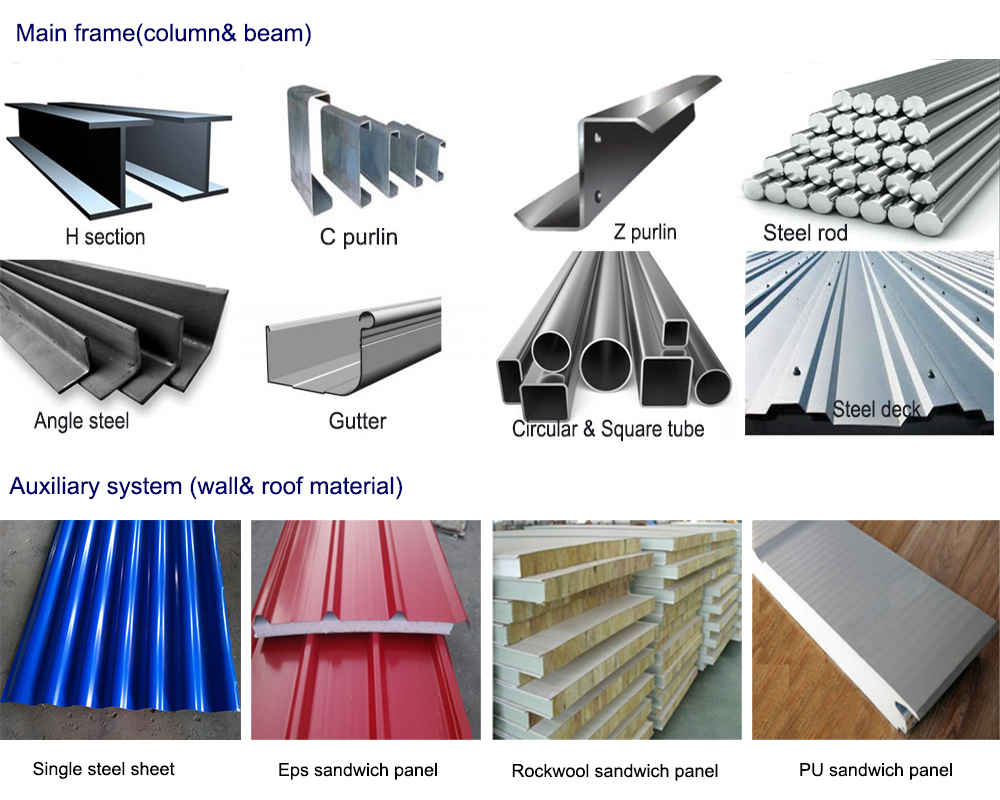

    * For more information, please visit our homepage. Main steel frame: column---Q235, Q355 welded H-beam
    Beam --- Q235, Q355 welded H-beam secondary beam:
    Purlins---Q235 C and Z Purlins
    Knee pads---Q23S angle steel
    Tie rod---Q235 round steel pipe
    Support---Q235 round bar
    Vertical and horizontal supports---Q235 angle steel, round bar or steel pipe
    Maintenance system : roof panel---EPS sandwich panel/glass fiber sandwich panel
    Rock wool sandwich panel/PU sandwich panel/steel plate wall panel---sandwich panel/corrugated steel plate accessories:
    Window---Aluminum alloy window/PVC window/sandwich panel window
    Door---Sliding sandwich panel door/metal shutter door/personal door
    Rainspout --- PVC Roof Live Load ln 120kg/Sqm (Surrounded by Coloured Steel Plates) Wind Resistance Class 12 Seismic Class 8 Structural Use Up to 50 Years Finishing Options Various Colors and Textures Available
    Design strength
    Our product advantages:
    high-performance thermal insulation, ventilation and moisture-proof materials provide high living comfort

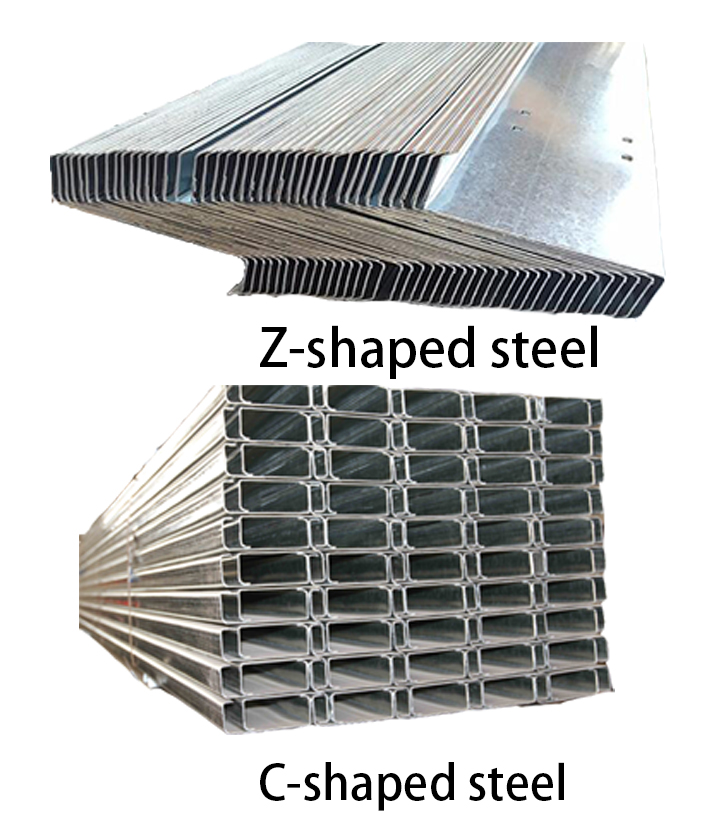

    Comparison of Z steel and C steel
    When the roof slope is small, the flexural modulus of Z-type purlins is slightly larger than that of C-type purlins, but the
    difference is not significant.
    The efficiency of the flexural modulus of vertically symmetric z-purlins increases as the roof slope increases. Therefore, Z-shaped purlins are suitable for roofs with large slopes. For walls,
    choosing Z or C doesn't make much difference. If the purlin is to be made into a continuous member, it is best to use a Z-shaped purlin,
    because it is easy to overlap.

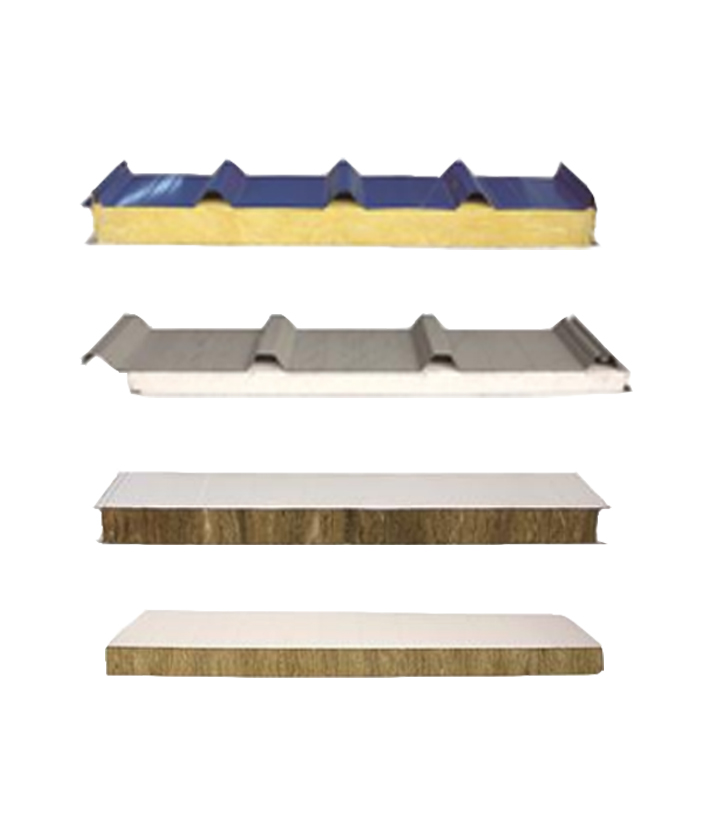

    sandwich panel
    Sandwich panels are suitable for projects with high fire protection requirements. Has good sound insulation. In addition,
    indoor noise caused by rain and hail is noticeable. After using the sandwich.

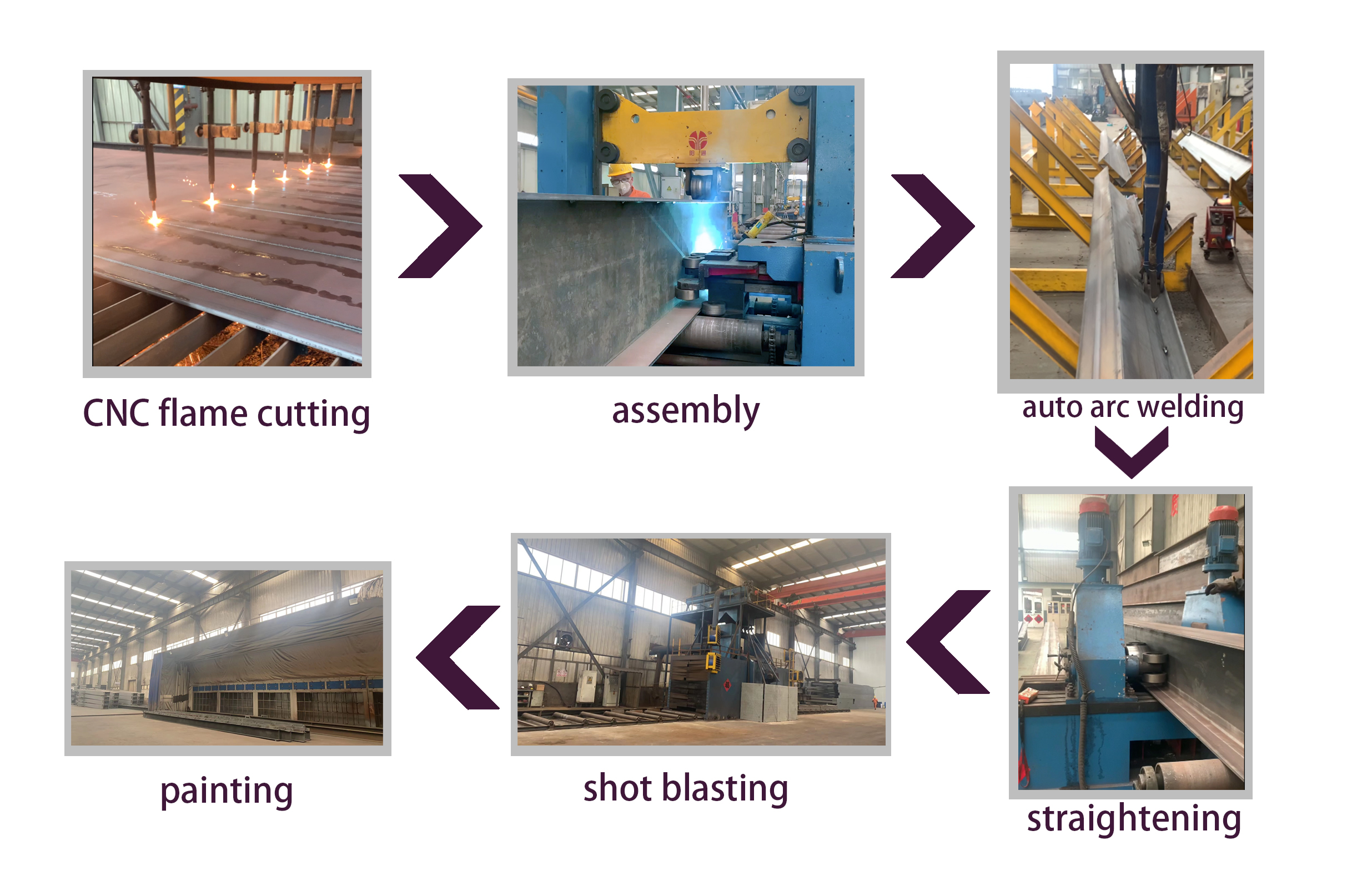

    Equipment and Production

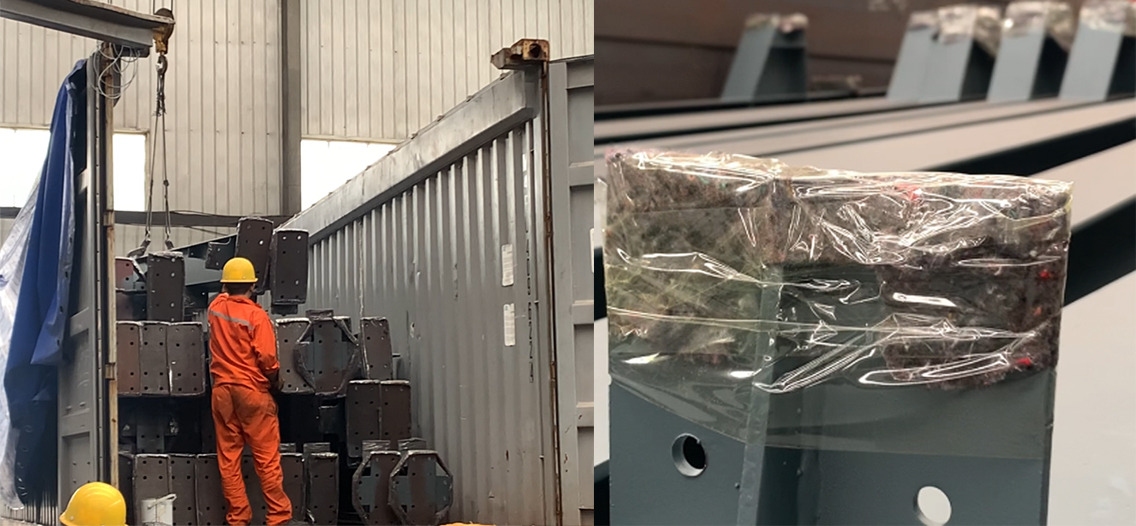

    Packaging and Delivery
    Protective packaging, steel frame will be loaded at 40'OT or 40'GP, roof and wall panels etc. will be loaded at 40'HQ or 40'GP
    How to get a quote
    If you have drawings, welcome to share the drawings with us, the quotation will be done according to your drawings. Our excellent design team will
    design the steel structure factory warehouse for you. If you provide the following information, we will give you a satisfactory
    drawing.1 Location (where will it be built?) Which country? which city? 2 Dimensions: Length*Width* Eaves Height_____mm*_____mm*_____mm ​​3Wind
    Load (Maximum Wind Speed)_____kn/m2, _____km/h, _____m/s 4 Snow Load (Maximum Snow Height) _____kn/m2, _____mm, Temperature Range?
    5 Seismic _____ Class 6 brick wall required or not If yes, 1.2m high or 1.5m high? or others? 7 If it is thermal insulation, it is
    recommended to use EPS, glass fiber wool, rock wool, and PU sandwich panels; if not, metal steel plates are fine. The cost of the latter
    will be much lower than the former. 8 Number and size of doors _____units, _____(width)mm*_____(height)mm 9 Number and
    size of windows_____units, _____(width)mm*_____(height)mm 10 Do you need a crane? If yes, _____units, max. Lifting weight ____ tons; maximum.
    Lifting height ____ meters
    1. Are you a manufacturing factory or a trading company?
    We are a manufacturing plant. You are welcome to visit us anytime. The quality control process and sales team will show you
    our professionalism. After visiting us, you will also get the best and most competitive prices.

    2. Are your prices competitive with other companies?
    Our business goal is the same quality, same price, same price and same quality. We will do everything
    to keep your costs down and guarantee you the best product for what you pay for.

    3. Can you send an engineer or an entire team to install my project?
    We will provide detailed installation drawings free of charge. We can dispatch engineers as installation director or team upon request.

    4. Do you accept container loading inspection?
    You are welcome to send an inspector to not only inspect the container load, but at any time during production.

    5. Do you provide design services for us?
    Yes, we can design complete solution drawings according to your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel), etc., we can design complex industrial buildings such as office buildings, super tags, car dealership stores, shipping malls,
    5 star hotels.

    6. What is the delivery time?
    Delivery time depends on order quantity. In general, the delivery time to the nearest seaport in China is
    40 days after receiving the deposit.

    7. How do you get a quote for your project?
    You can contact us 24*7 by email, phone, Alibaba TM, WhatsApp, Skype, Viber, etc. You will get a reply within 8 hours.
